3 in 1 multifunction metal laser rust remover handheld fiber laser cleaning welding cutting machine

Short Description:

Advantages of fiber laser welding machine

1. Hand-held portable

2. Non-contact

3. High degree of cleanliness

4. Super long life

5. Does not hurt the substrate

6. Efficient and simple

7. Maximum width 200mm

8. 1000-2000W optional


Product Detail

Product Tags

FIELD-LENS72

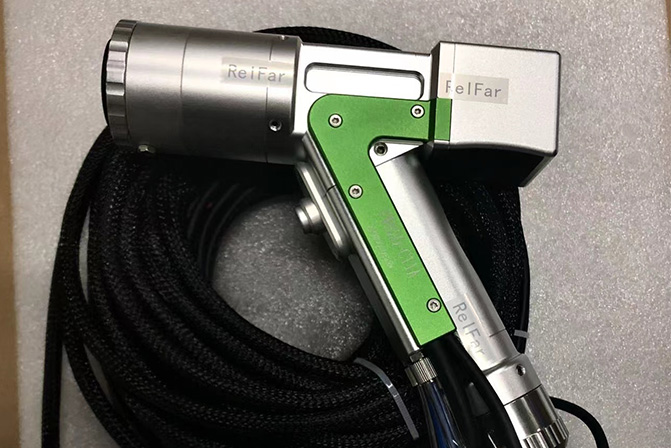

Cleaning laser head

FWH20-C11A: The maximum cleaning width can reach 20mm.

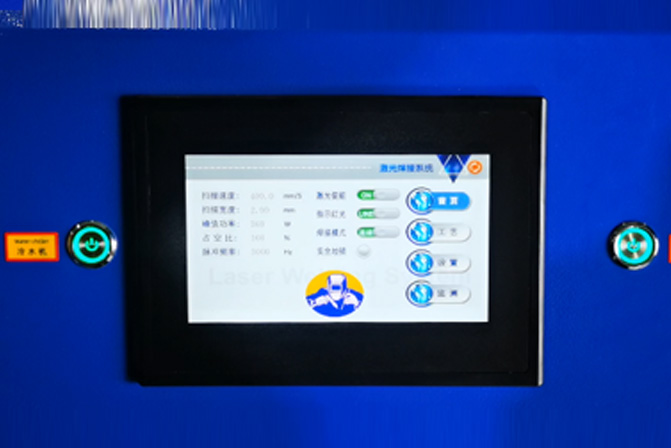

OPERATION PANEL

RelFar Control board and operation panel.

FIELD-LENS72
FIELD-LENS72

LASER SOURCE

Internationally renowned laser source( Max / Raycus / JPT ), stable laser power, long life, good welding effect, beautiful welding seam

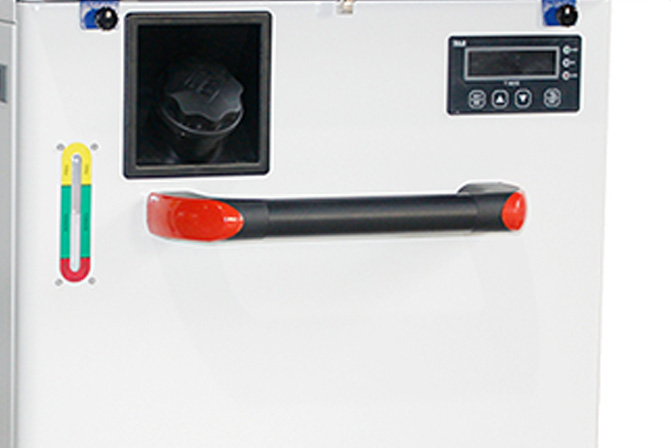

WATER CHILLER

When the machine is working, cool the laser source with water

FIELD-LENS72

Product Video

Specification

Technical Parameters
Technical Parameters
Model Fiber Laser Cleaning Machine
Laser source Raycus/Max/IPG
Laser wavelength 1070±29nm
Laser power 1000W/1500W/2000W
Operating mode Continuous/pulse
Length of fiber-optical 10m(standard)
Interface of fiber-optical QBH
Module life 100000hrs
Power supply 220V /380V
Cooling method Water Cooling
Laser energy stablilty <2%
Air humidity 10-90%
Cleaning range 0-200mm
Redlight positioning Support
Intelligent protection Support
Focal length 400-600mm
Scanning speed 20000mm/s
Effective luminous aperture 25mm
