Portable Handheld Continuous Laser Cleaning Machine For Rust Removal

Short Description:

Our advantages

  • No contact cleaning: prevent wear and tear.
  • High precision control: precise removal of contaminants.
  • No chemical process: pure physical method, more in line with environmental protection concept.
  • Versatility: suitable for all kinds of materials.










  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    LASER HEAD

    • Support Relfar, Super chaoqiang, Qilin Au3Tech different brands ofcleaning head.
    • Safety - Temperature real-time monitoring.
    • Time saving - Easy replacement lens.
    • Lightness - Small size, easy to use and simply to operate
    • 3000W- Support 3000W laser source
    • Stable - Upgrade to dual protective lenses.

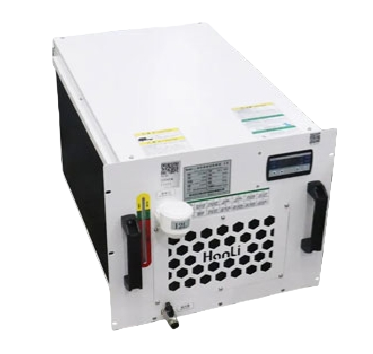

    Cooling CHILLER

    HanLi and S&A teyu brand can be selected.Protect the laser source and prolong the life of the laser source
    Intelligent control , self-adaptive hot and cold dual temperature adjustmentSeparate cooling of cleaning head and laser source.Stable laser output , fast and energy saving.

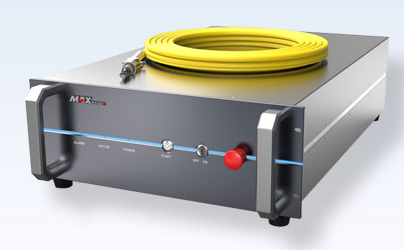

    LASER SOURCE

    Famous brands such as Raycus, Max,IPG,JPT, Reci etc.
    The most important part of laser cleaning machine.
    Working life is 100,000 hours.

    LASER SOURCE

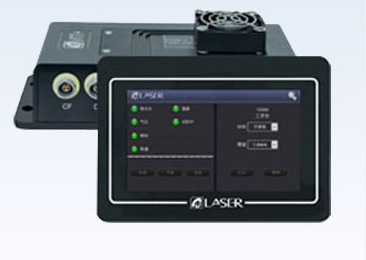

    CLEANING SYSTEM

    CLEANING SYSTEM

    • Supported lanquages: English, Russian, German, French, Korean.Japanese, Spanish, Portuquese. Arabic. Polish, etc.
    • Support Bluetooth wireless connection.
    • Support USB system upgrade.

    Features

    1. Non-Contact Cleaning: Laser cleaning operates without physical contact, preventing wearand tear during the cleaning process. This feature is especially advantageous for maintain-ing high precision on the object's surface.

    2.High Precision and Control: Laser beam focus is meticulously controlled, enabling thetargeted removal of contaminants from specific areas while leaving surrounding regionsunaffected.

    3.Chemical-Free Process: Laser cleaning is a purely physical method, eliminating the needfor chemical solvents or cleaning agents. This not only avoids chemical pollution but alsosidesteps concerns related to waste disposal.

    4.Energy-Efficiency and Environmental Friendliness: Laser cleaning typically consumes lessenergy compared to traditional methods, and it generates minimal wastewater or exhaustgases, aligning with eco-friendly practices.

    5.Versatility Across Materials: Laser cleaning's applications span various materials, showcasingremarkable adaptability.

    Cleaning range

    RELFAR: F600 Focusing lens : Standard configuration 200mm,Upgradeable to 300mm.

    CHA0QIANG: 22C 400Focusing lens: 150mm, 600Focusing lens: 225mm, 800Fcusing lens: 300mm.

    QILIN:150mmx150mm

    Function introduction

    Specification

    Technical Parameters
    Technical Parameters
    Laser power                                     1000W                           1500W                           2000W                           3000W
    Central Wavelength            1080nm
    Laser Running Mode Laser Running Mode
    Frequency 10-20KHz
    Fiber Cable Length 8m
    Cooling Type Water Cooling
    Scanning Width Max 300mm
    Voltage                               Single phase220V.50/60Hz                                     Three phaser 380V.50/60Hz
    Total Consumption             5.5KW                            8KW                               13KW                              18KW
    Rust (20um) 20m3/h 30m3/h 40m3/h 60m3/h
    Corrosion(100um) 5m3/h 8m3/h 10m3/h 15m3/h
    Paint(120um) 8m3/h 12m3/h 16m3/h 24m3/h

    *For cleaning heavy paint and rust recommend 3000W and 2000W>1500W.

    For cleaning molds.watches instruments,wood paint etc.recommend 200w/100w.no damage to materia.
