UV Cabinet Laser marking machine

Short Description:

(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories( mobile phone screen, LCD screen ) and communication products.

(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.

(3) Pharmaceutical, food, beverage and cosmetics industry.

(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.

(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc.


Product Detail

Product Tags

FIELD LENS

FIELD LENS

We use famous brand to provides precision laser Standard 110x110mm marking area .

Optional: 150x150mm,200*200mm ,300*300mmetc.

● Optional: OPEX etc.

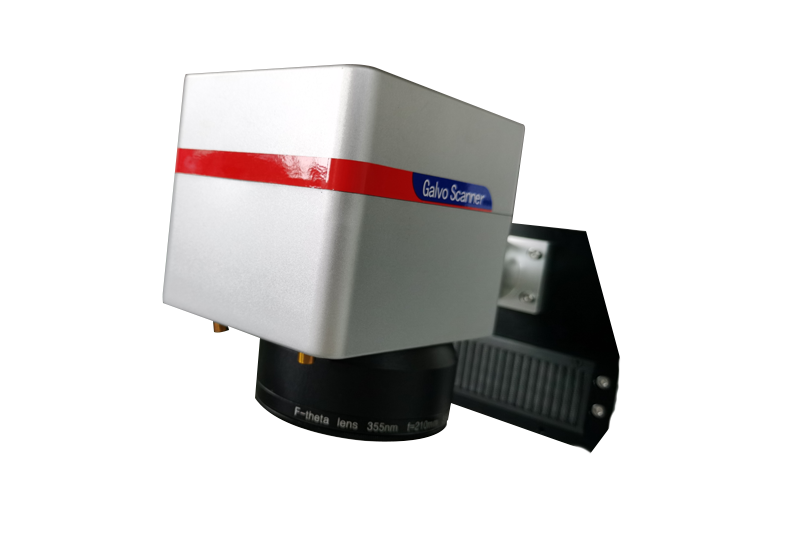

GALVO HEAD

Famous brand Sino-galvo, high speed galvanometer scan adopting SCANLAB technology, digital signal, high precision and Speed.

FIELD LENS
FIELD LENS

LASER SOURCE

We use Chinese best Ultraviolet laser source brand YINGGU. Optional: Raycus /Max IPG/ JPT

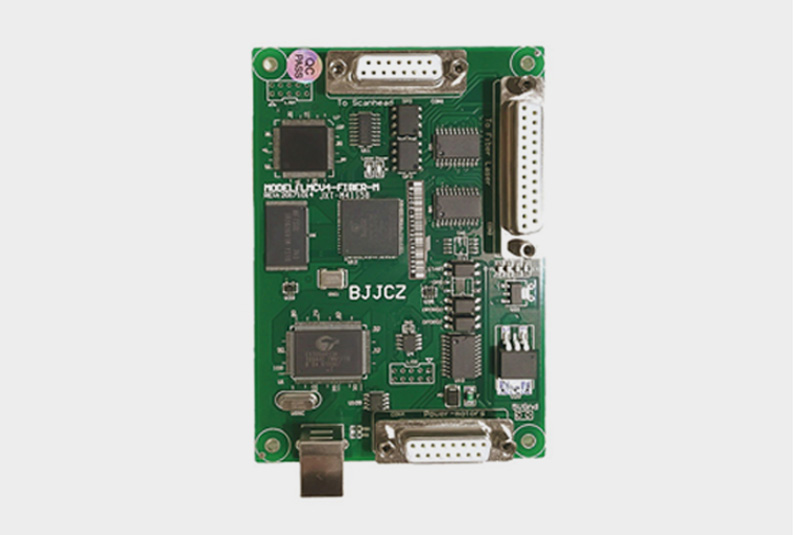

JCZ CONTROL BOARD

FIELD LENS

Ezcad genuine products, user -friendly interface, functional diversity, high stability, high precision Each board has its own number to ensure that it can be inquired in the original factory Refuse to fake.

THE CONTROL SOFTWARE

1. Powerful editing function.
2. Friendly interface
3. Easy to use
4. Support Microsoft Windows XP, VISTA, Win7, Win10 system
5. Support ai, dxf, dst, plt, bmp ,jpg, gif, tga, png, tif and other file formats.
6. Support for Truetype fonts, single Line fonts ( SF ), SHX fonts, dot matrix fonts ( DMF ), 1D bar codes and 2D bar codes . Flexible variable text processing, changing text in real time during processing, can directly read and write text files, SQL databases and Excel file

FIELD LENS
FIELD LEN

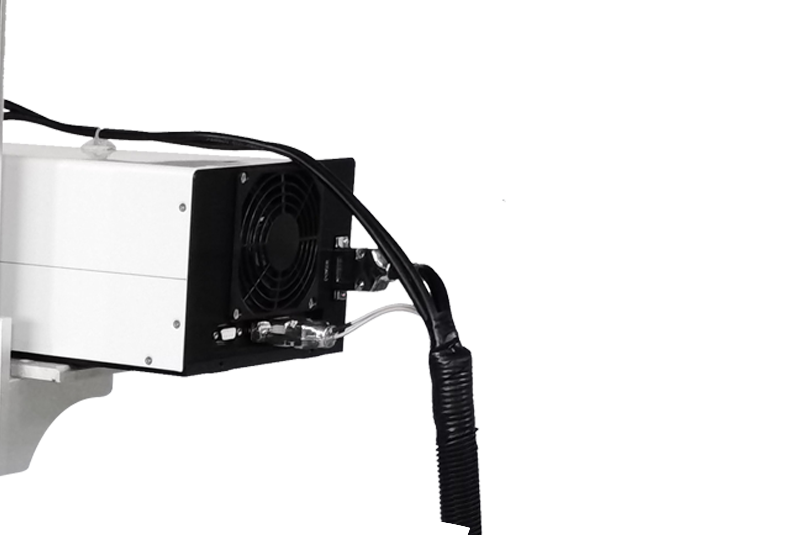

AIR COOLNG SYSTEM

The Air-cooling system is used to speed up heat dissipation protect the host , and ensure the machine operates for along time.

Product Video

Specification

Technical Parameters
Technical Parameters
Laser Type UV Laser Marking Machine
Working area 110*110/150*150/200*200/300*300(mm)
Laser power 3W/5W/8W/10W(Optional)
Laser wavelength 355nm
Application metal and nonmetal
Marking Speed 7000mm/second
Repeated Precision ±0.003mm
Working voltage 220V / or 110V (+-10%)
Cooling Mode Air Cooling
Supported graphic formats AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Controlling software EZCAD
Optional parts Rotary Device, Lift platform, other customized Automation
Warranty  2 year
Package  Plywood
