SPLIT FIBER LASER MARKING MACHINE BLUE

Short Description:

Advantages of fiber laser marking machine
1. No Consumables, Long lifespan Maintenance Free
2. Multi-functional
3. Simple Operation, Easy to use
4. High Speed Laser Marking
5. Optional rotary axis for different cylindrical


Product Detail

Product Tags

111

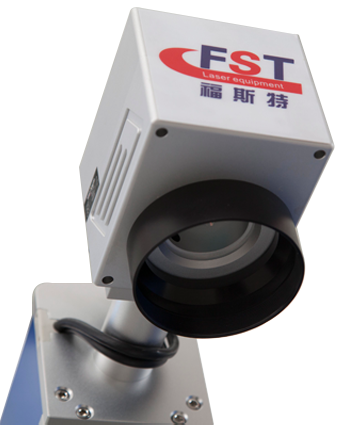

FIELD LENS

 We use famous brand to provides precision laser Standard 110x110mm marking area . Optional 150x150mm , 200X200mm 300x300mm etc

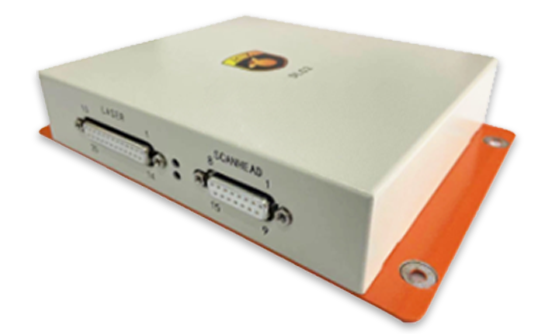

JCZ CONTROL BOARD

Ezcad genuine products , user-friendly interface , functional diversity , high stability , high precision .Each board has its own number to ensure that it can be inquired in the original factory . Refuse to fake

JCZ CONTROL BOARD

THE CONTROL SOFTWARE

65

1. Powerful editing function.

2. Friendly interface

3. Easy to use

4. Support Microsoft Windows XP, VISTA, Win7, Win10 system

5. Support ai, dxf, dst, plt, bmp, jpg, gif, tga, png, tif and other file formats.

6. Support for True type fonts, single Line fonts (JSF ), SHX fonts, dot matrix fonts ( DMF ), 1D bar codes and 2D bar codes . Flexible variable text processing, changing text in real time during processing, can directly read and write text files, SQL databases and Excel file .

RED LIGHT PREVIEW

Adopt Red light preview to show the laser path since laser beam is invisible.

WORKING-PLATFORM

Specification

Technical Parameters
Technical Parameters
Model fiber marking machine
Working area 110*110/150*150/200*200/300*300(mm)
Laser power 10W/20W/30W/50W
Laser wavelength 1060nm
Beam quality m²<1.5
Application metal and partial nonmetal
Marking Depth ≤1.2mm
Marking Speed 7000mm/ standard
Repeated Precision ±0.003mm
Working voltage 220V or 110V /(+-10%)
Cooling Mode Air Cooling
Supported graphic formats AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Controlling software EZCAD
Working temperature 15°C-45°C
Optional parts Rotary Device, Lift platform, other customized Automation
Warranty  2 year
Package  Plywood
