High Quality Fiber Laser Cutting Machine - 3015 Fiber laser cutting machine – Foster Detail:

3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed bypress extrusion molding. Aviation aluminum has many advantages, such as good toughness, lightweight , corrosion resistance, anti-oxidation, low density, and greatly increasehe processing speed.

hengliang-chuan

● More efficient:
The aluminum profile beam of the aerospace industry makes the equipment have efficient dynamic performance, greatly improving processing efficiency while ensuring processing quality.

Laser Cutting Head

RAYTOOLS / WSX / PRECITEC (optional)

● Multiple Protection
3 protective lenses, highly effective collimating focus lens protection. 2-way optical water cooling extends the continuous working time effectively.

● High-precision
To successfully avoid step loss, a closed-loop stepping motor is used. The repetition accuracy is 1 M and the focusing speed is 100 m m / s. Dust-proof to IP65, with a patent-protected mirror cover plate and no dead angle.

111

Detail Display Diagram

tppp

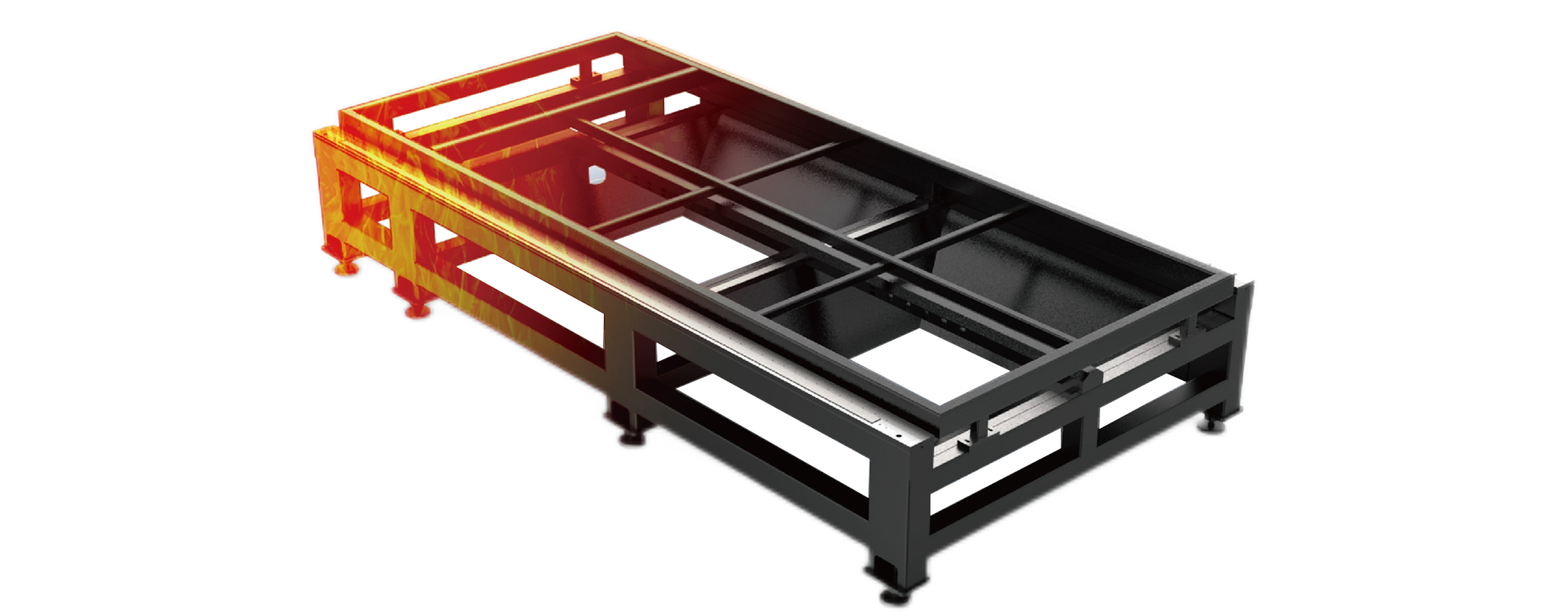

Industrial Machine Bed

Flake graphite cast iron, the lowest tensile strength of which is 200MPa. High carbon content, high compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using.

Lifetime service
It ensures the accuracy of the machine working for a long time, and it will not deform during its lifetime use.

Higher precision
A solid bed has high stability .It is unmatched by other materials and structures. The use of graphite cast iron as a raw material keeps the precision of the machine tool for a long time and remains unchanged for 50 years. The rough, fine and super-fine of the imported gantry machining center guarantee the machining accuracy requirements of the machine body.

56

Machine Layout

2.-1

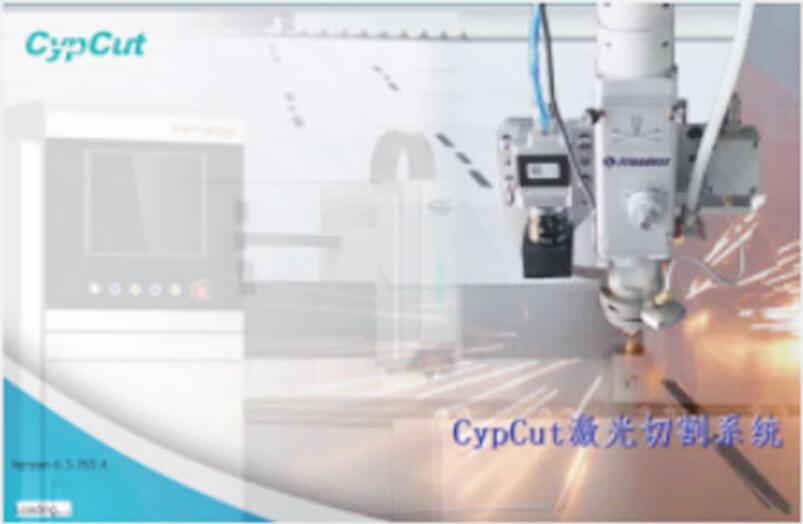

Friendess Control System

CypCut sheet cutting software is an in-depth design for fiber laser cutting industry. It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one.

From drawing, nesting to workpiece cutting all can be finished by a few clicks.

1.Auto Optimize Imported Drawing
2.Graphical Cutting Technique Setting
3. Flexible Production Mode
4. Statistic of Production
5.Precise Edge Finding
6.Dual-Drive Error Offset

aasd

Famous Brand Fiber Laser Source

1. Fiber laser generator with great and stable performance. 2. The laser source to have lifespan ove100,000 hours.

3. Raycus / Max / JPT for choice. 4. The USA IPG Laser source is optional.

Specification

Technical Parameters
Main Configuration
Optional Configuration
Technical Parameters

Model FST-FM 3015 Fiber Laer Cutting Machine
Working Size 1500*3000mm
Laser Power 1/1.5/2/3/4/5/6/8/12kw
Laser Wavelength 1080nm
Laser Beam quality <0.373mrad
Wbrking Life of Fiber Source More than 10,0000 hours
Position Type Red Dot Pointer
Cutting Thickness 0.5-10mm Within The Range Standard Precision
Max. Idle Running Speed 80-110M/min
Max acceleration 1G
Reorientation Accuracy Within ±0.01mm
Lubrication System Electrical Motored
Cooling mode Water cooling and protection system
Machine power 9.3kw/13kw/18.2kw/22.9KW
Auxiliary Gas for Cutting Oxygen, Nitrogen, Compressed Air
Compatible Software AutoCAD, CorelDraw, etc.
Handle Control Wireless Control Handle
Graphic Format DXF/PLT/AI/LXD/GBX/GBX/NC code
Power Supply Voltage 220v 1ph or 380v 3ph,50/60HZ
Warranty 2 Years

Main Configuration

Model FST-FM Series
Control System CypOne/CypCut – Friendess
Drives and Motors Japan Fuji Servo Motor System
Fiber Laser Head Raytools Laser Head
Fiber Source Raycus or Max or IPG
Lubrication System Electrical Motored
Guide Rails Taiwan HIWIN Rails
Rack and Gear Taiwan YYC Rack
Driver system power X=0.75/1.3KW,Y=0.75/1.3KW,Z=400W
Reducer Japan SHIMPO
Electron Component DEUXI ELECTRIC
Chiller HaiLi/S&A
Voltage 380V 3Ph, 50/60HZ
Gross weight 1.9T

Optional Configuration

Model Detail
Control System CypCut
Drives and Motors Yaskawa Servo Motor System
Fiber Laser Head RAYTOOLS BM110 Automatic Focus Laser Head
Stabilizer Made in Chinia
Exhaust fan 3KW
Wooden packing With metal bracket
