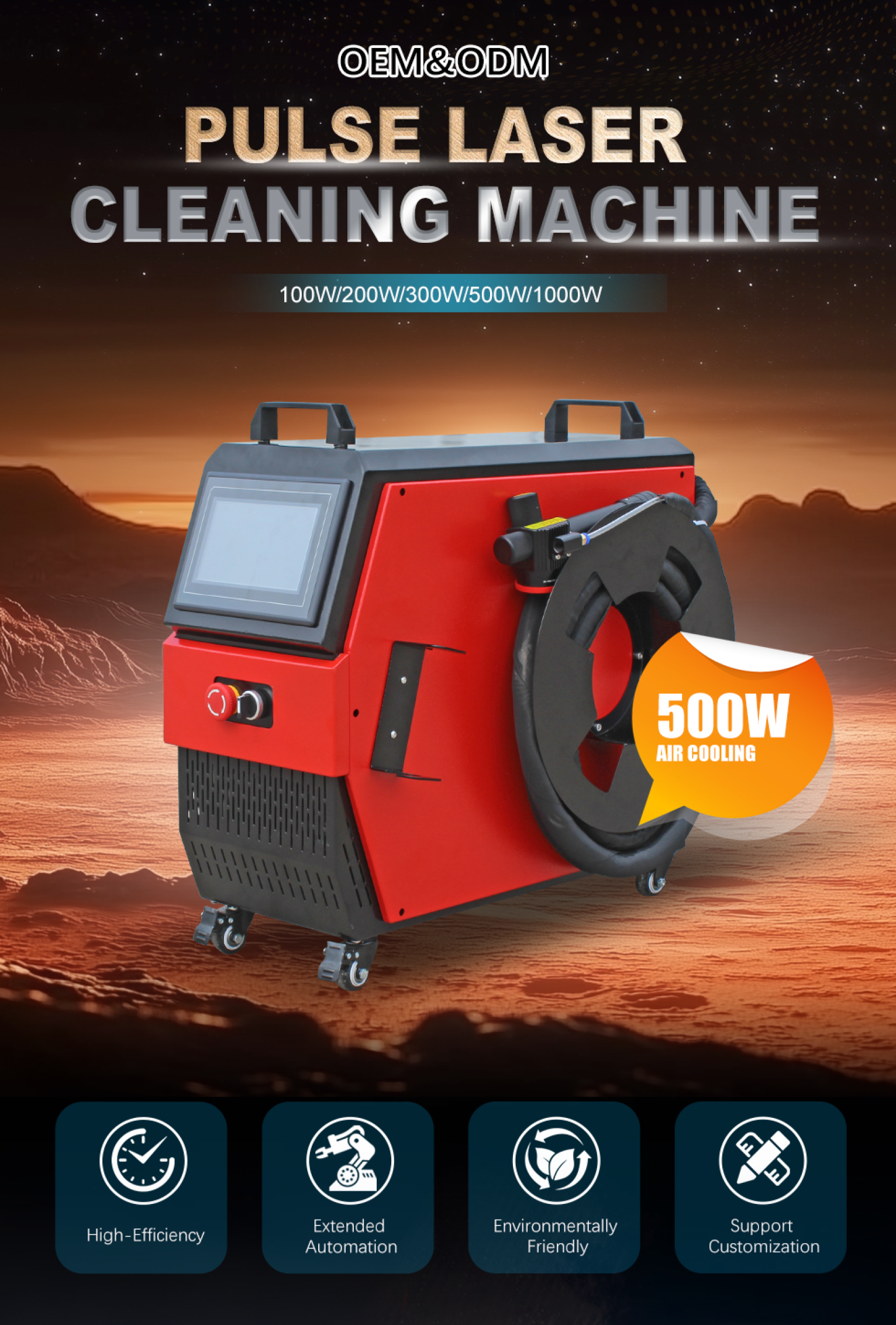

High Cost-Effective 100W 200w 300w 500W Air Cooled Pulsed Laser Cleaning Machine Metal non Metal Paint Removal
500W air-cooled pulsed laser cleaning machine is a new type of high-power cleaning equipment. It features a unique air cooling system, which can be applied to various working scenarios. The power ranges from 100w, 200w, 300W, 500W,1000W. Different control systems are available for selection. The operation is simple and it is the best choice for users. It is mainly used for rust removal, paint removal, glue removal, coating removal and plating removal. It is suitable for removing rust layers and thick paint layers, as well as surface roughening, weld cleaning and other process steps. The efficiency is extremely high. It is widely used in industries such as aviation, ships, cultural relic protection, automotive accessories, food industry, railways, rubber molds and others.

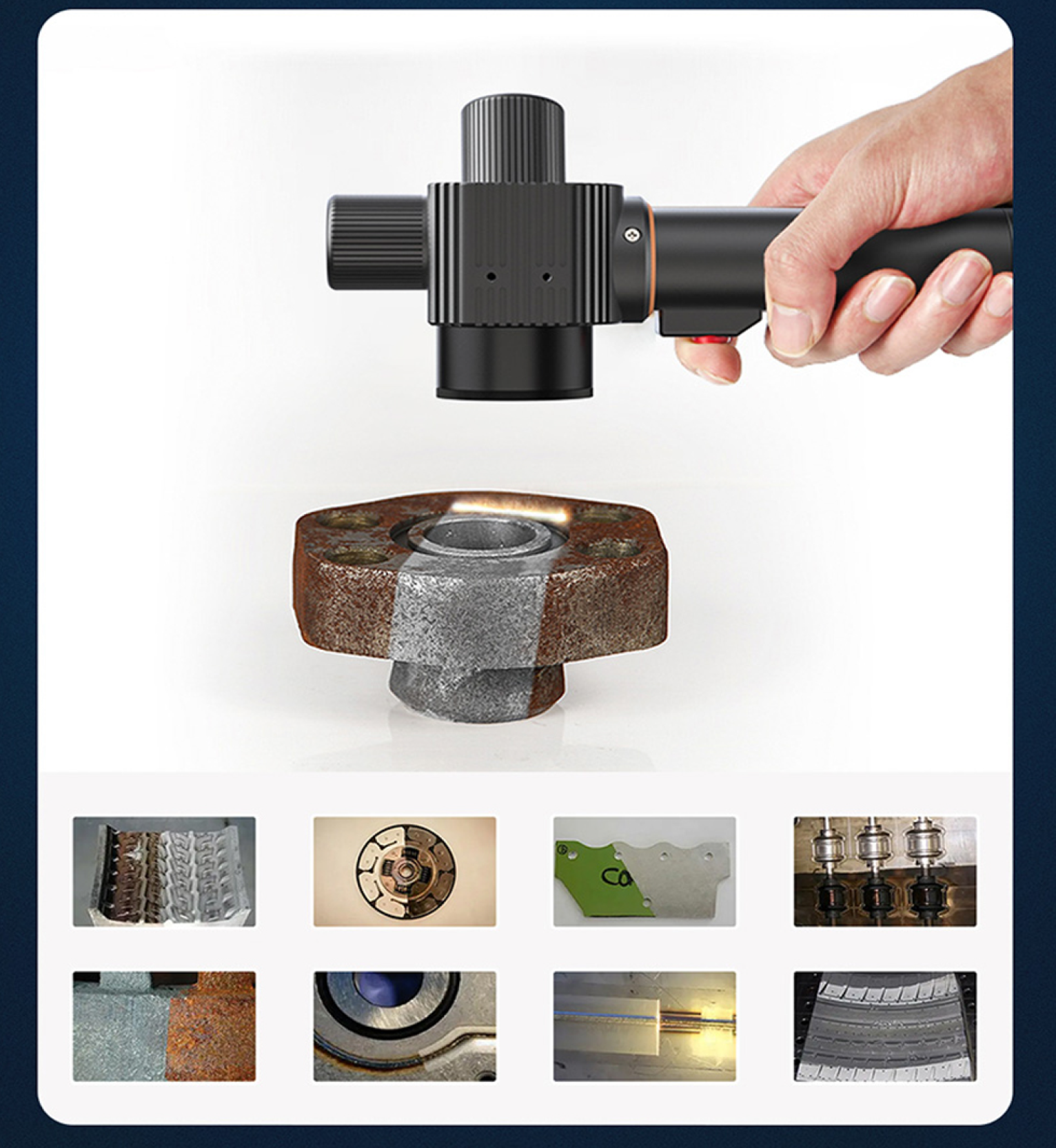

NON-CONTACT CLEANING
Non-contact cleaning, and it will not cause any damage to the component structure.
HIGH POWER&FAST CLEANING SPEED
Compared with lower laser power cleaning machines,with 62.5mi and 100mi maximum pulse energy. 8 cleaning modes, it can clean metal, steel, stone and other materials in a shorter period of time. which can save your time cost of cleaning work.
ENVIRONMENTAL PROTECTION
The laser cleaning rust machine can remove rust without any chemical no supplies, cleaning fluid, safety and environmental protection.
PRECISE CLEANING
Precision cleaning, the laser removal machine can achieve selective cleaning and precise location.
SIMPLE OPERATION&HIGH EFFICIENCY
The operation is very simple, Just connect the power supply and it can automatically clean. the cleaning efficiency is extremely high and it saves a lot of time.

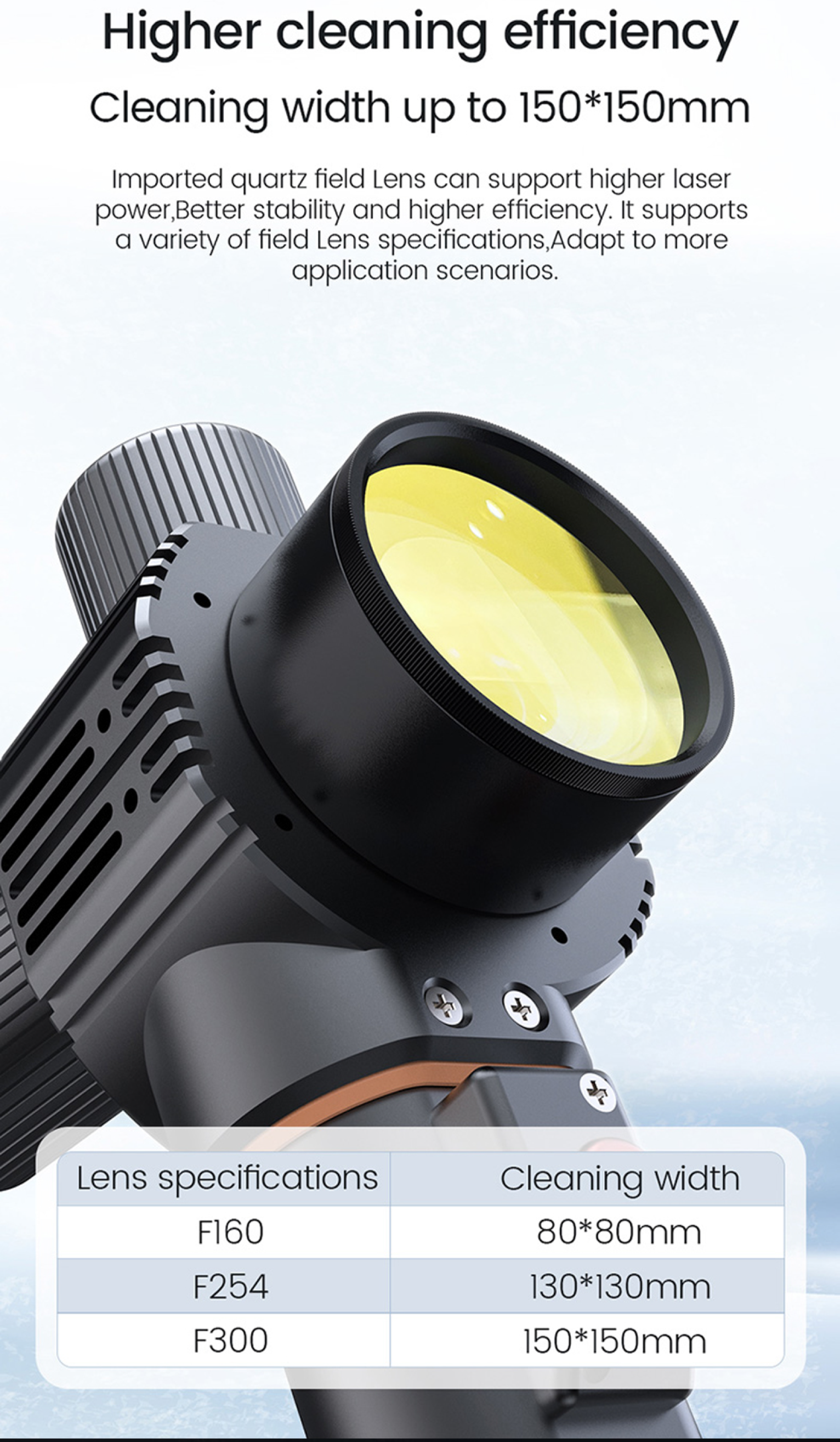

Higher cleaning efficiency Cleaning width up to 150*150mm Imported quartz field Lens can support higher laser power,Better stability and higher efficiency. It supports a variety of field Lens specifications,Adapt to more application scenarios.

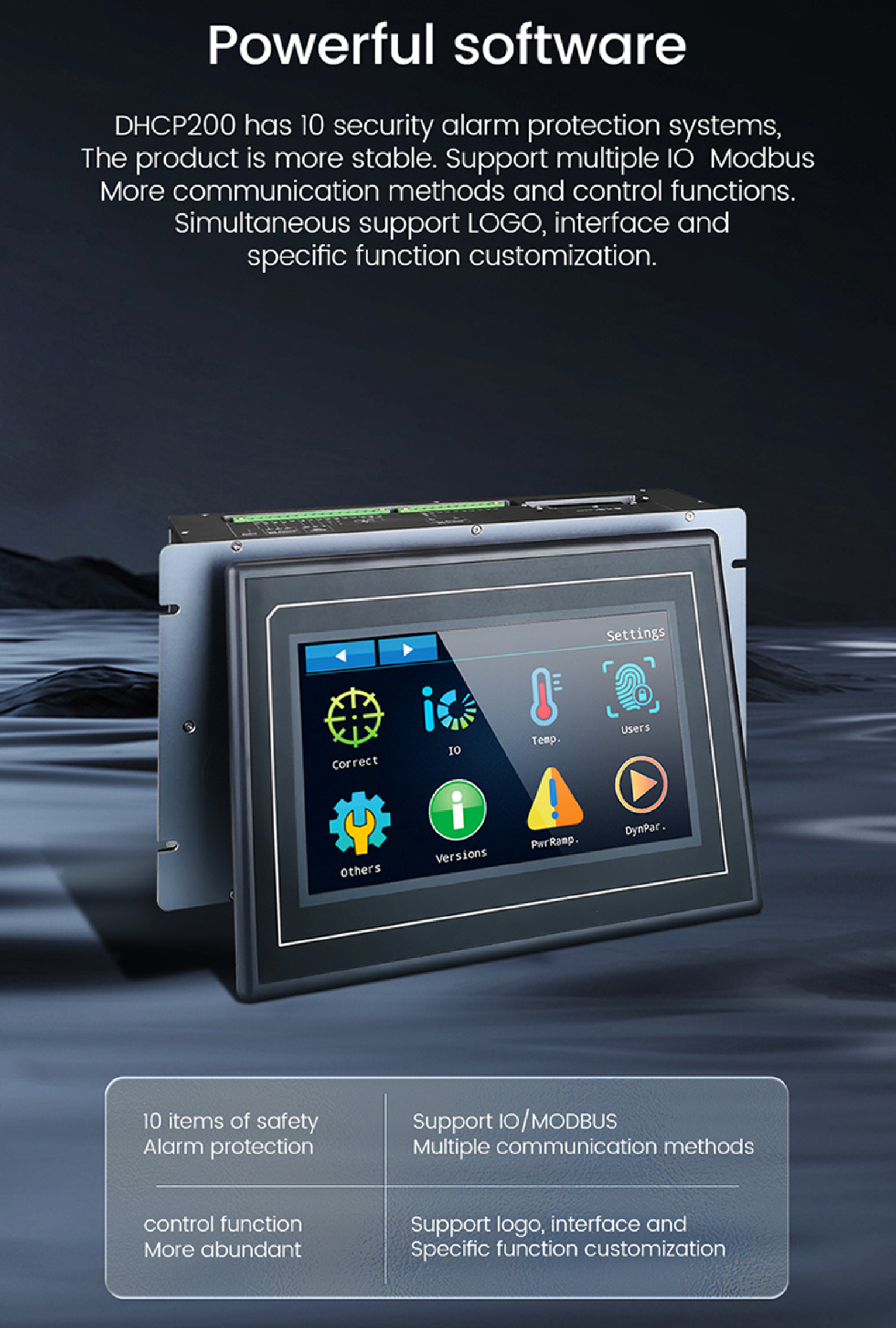

Powerful software
DHCP200 has 10 security alarm protection systems, The product is more stable. Support multiple IO Modbus More communication methods and control functions. Simultaneous support LOGO, interface and specific function customization.

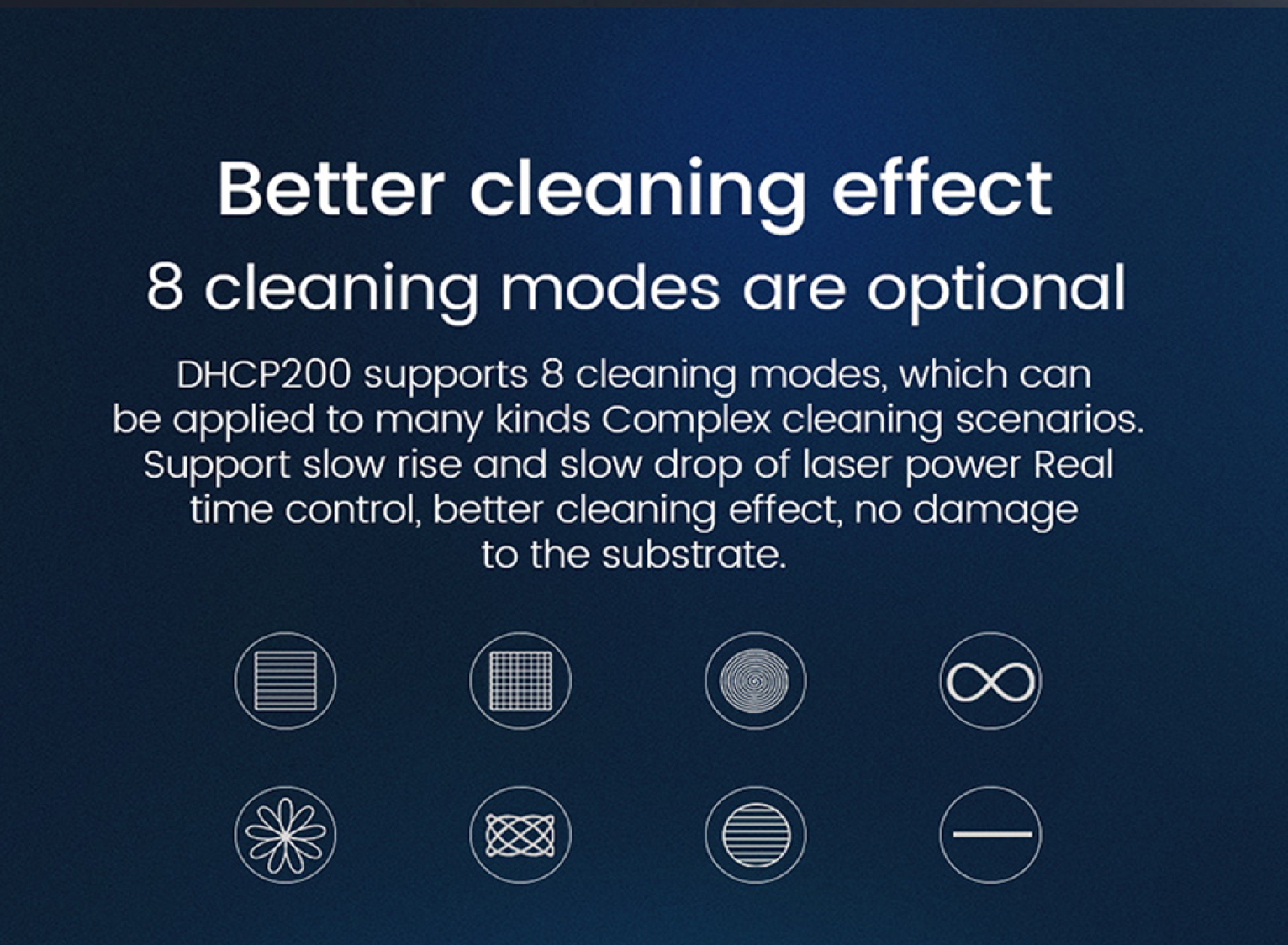

Better cleaning effect
8 cleaning modes are optional DHCP200 supports 8 cleaning modes, which can be applied to many kinds Complex cleaning scenarios. Support slow rise and slow drop of laser power Real time control, better cleaning effect, no damage to the substrate.

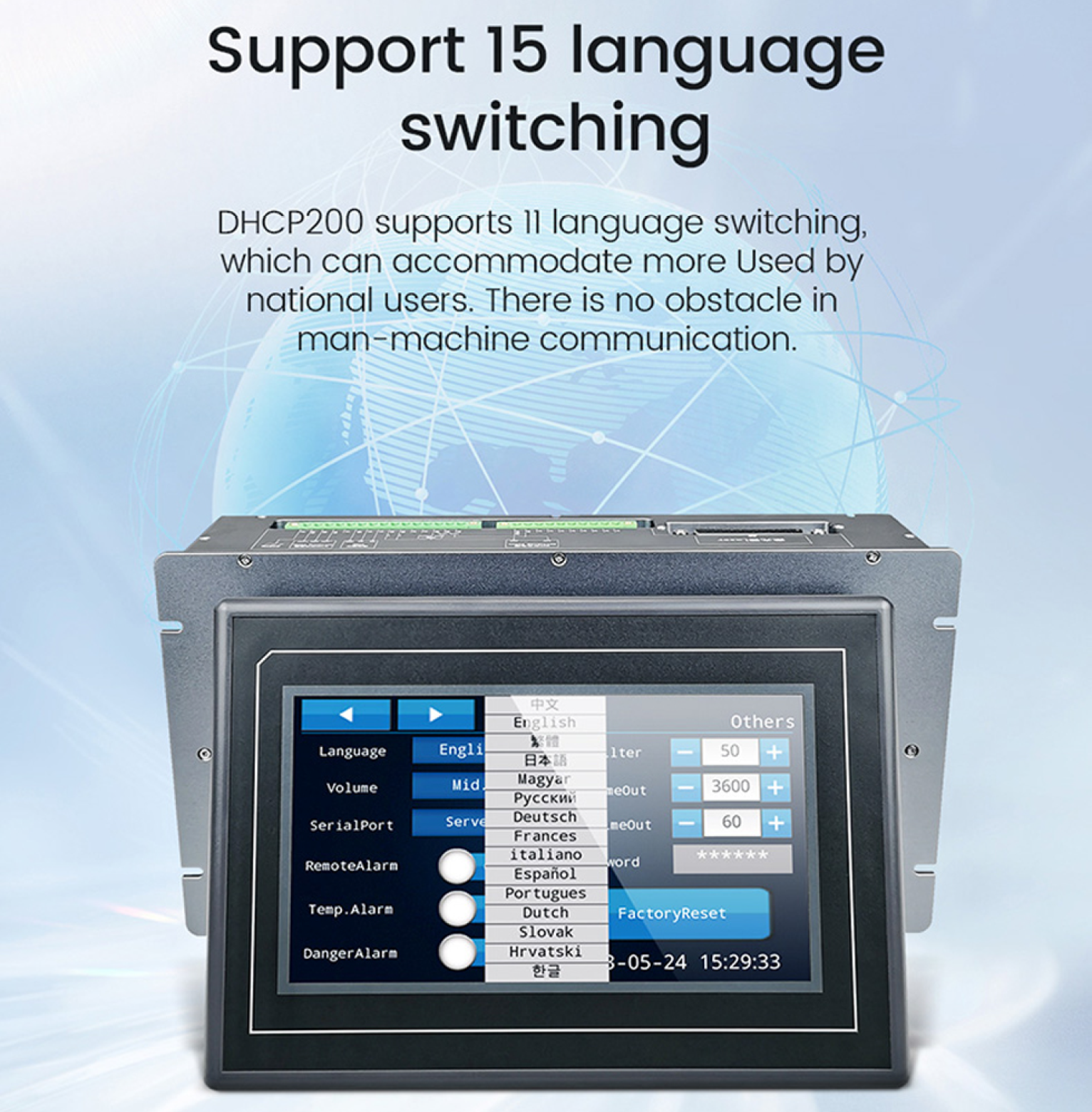

Support 15 language switching DHCP200 supports 11 language switching, which can accommodate more Used by national users. There is no obstacle in man-machine communication.

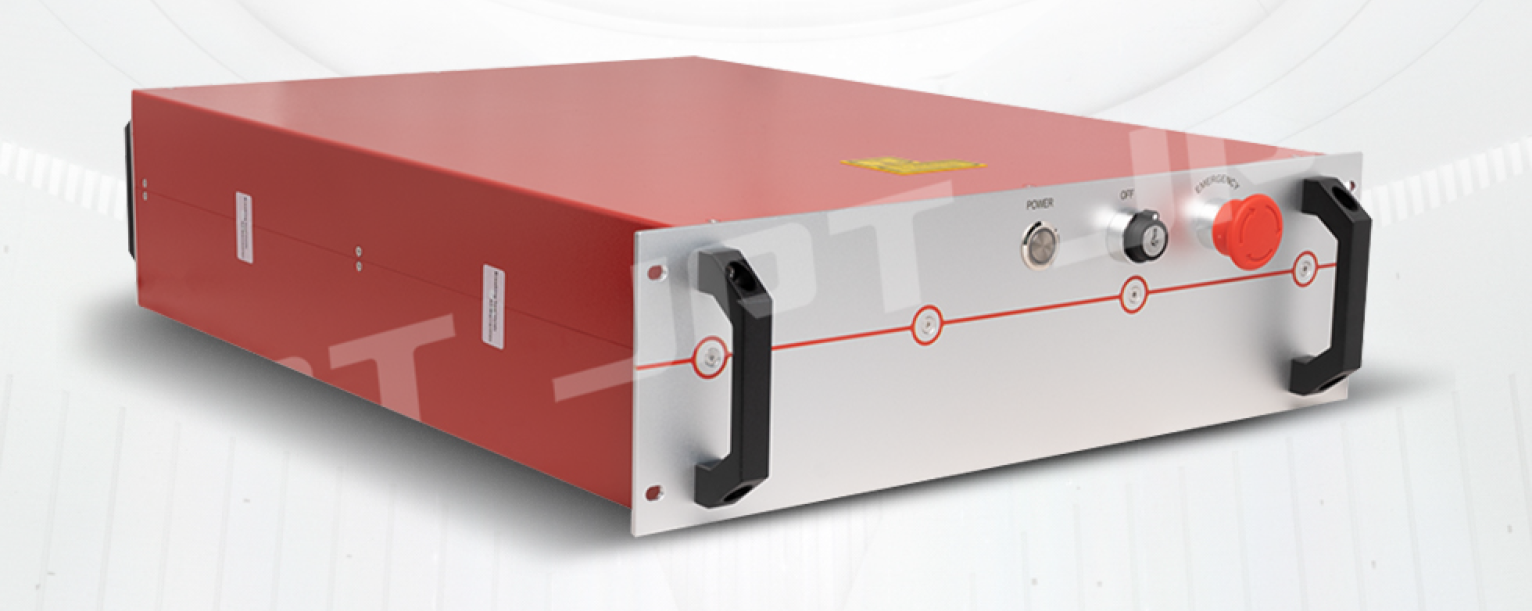

LASER SOURCE
JPT pulse laser,with a laser power of 100w/200w/300w/500w/1000W optional,perfect laser haracteristics and good pulseshape control capability.The advantage of pulse energy higher and uniformdistribution of output spot Energy.

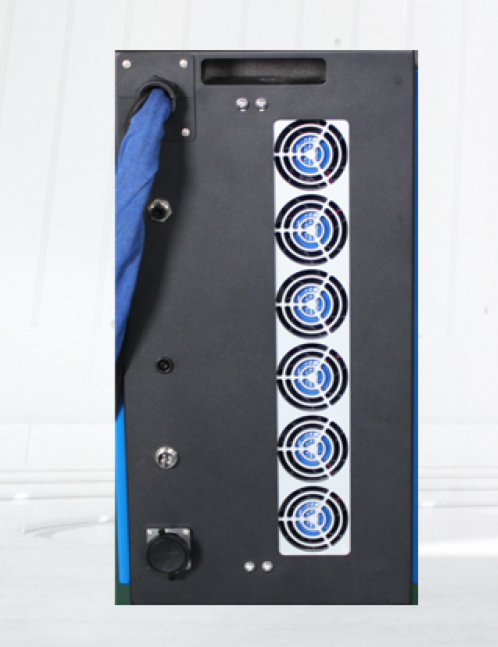

AIR COOLING
Unique air-cooling system,Protect the laser source and prolong the life of the laser source.
| Machine Name | Pulsed laser cleaning machine |
| Laser Power | 100W/200W/300W/500W |
| Laser Source | JPT |
| Laser Source Model | 1000-50 Multimode |
| Laser Model | Flat Top Light |
| Fiber Beam Quality | <9㎡ |
| Maximum Single Pulse Energy | 50MJ |
| Cleaning efficiency (paint) | 30m2/h |
| Cooling system | Air cooling |
| Laser Operation Mode | Pulsed |
| Maximum Output Power | 500W |
| Power adjustment range (%) | 0-100% |
| Fiber Cable Lenth | 15m |
| Laser Pulse Frequency | 20-1000KΗZ |
| Cleaning Model | 8 Kinds |
| Working Temperature | 5-35°℃ |
| Cooling Water Temperature | 28°C |
| Supply Current | >32A |
| Power Instabilit | Less than 5% |
| Operation Method | Handheld |
| Auxiliary Gas Description | Dry gas (oxygen/nitrogen) |

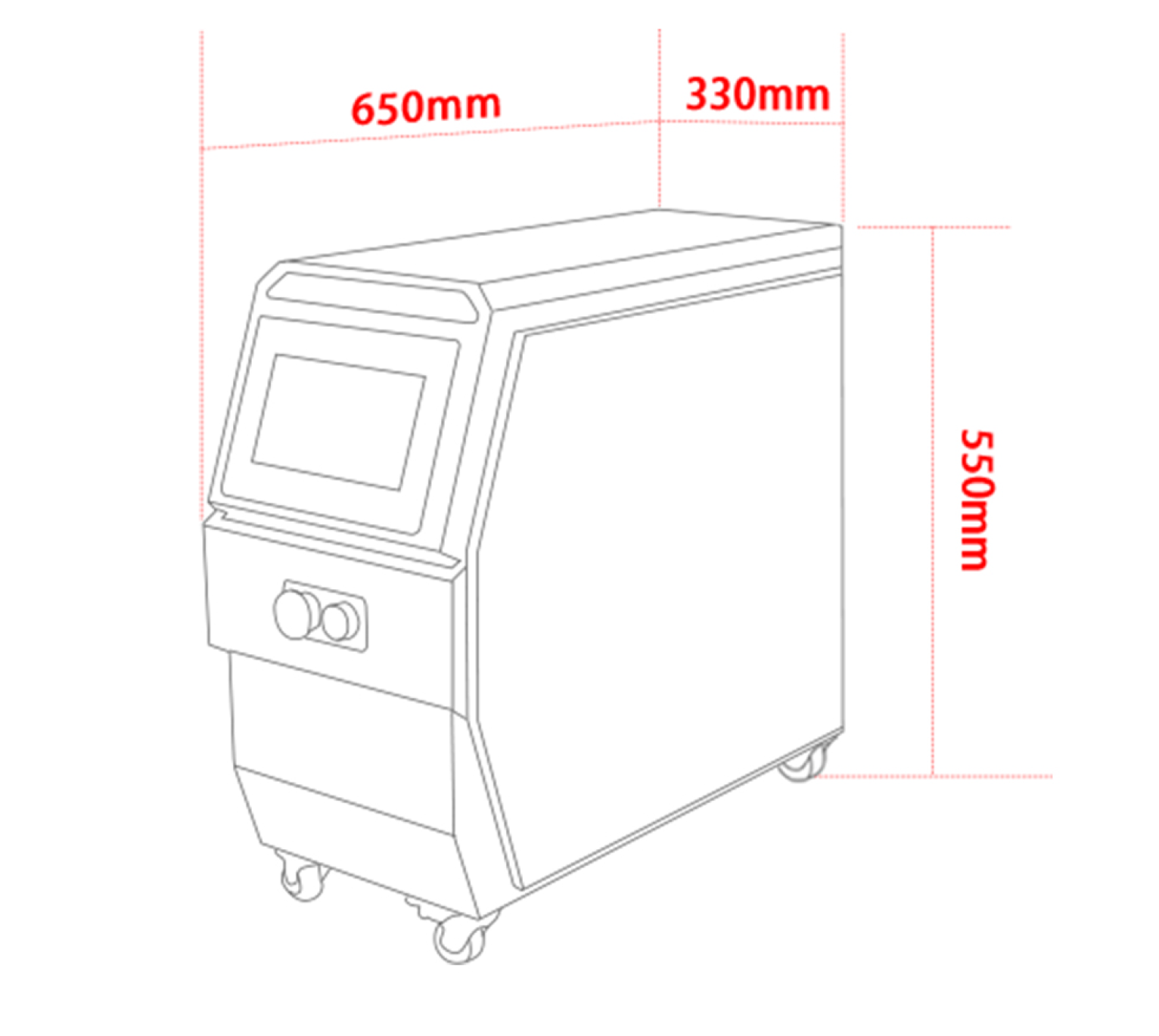

| Machine Size (L*W*H) | 650*330*550 mm |
| Net Weight | 70kg |

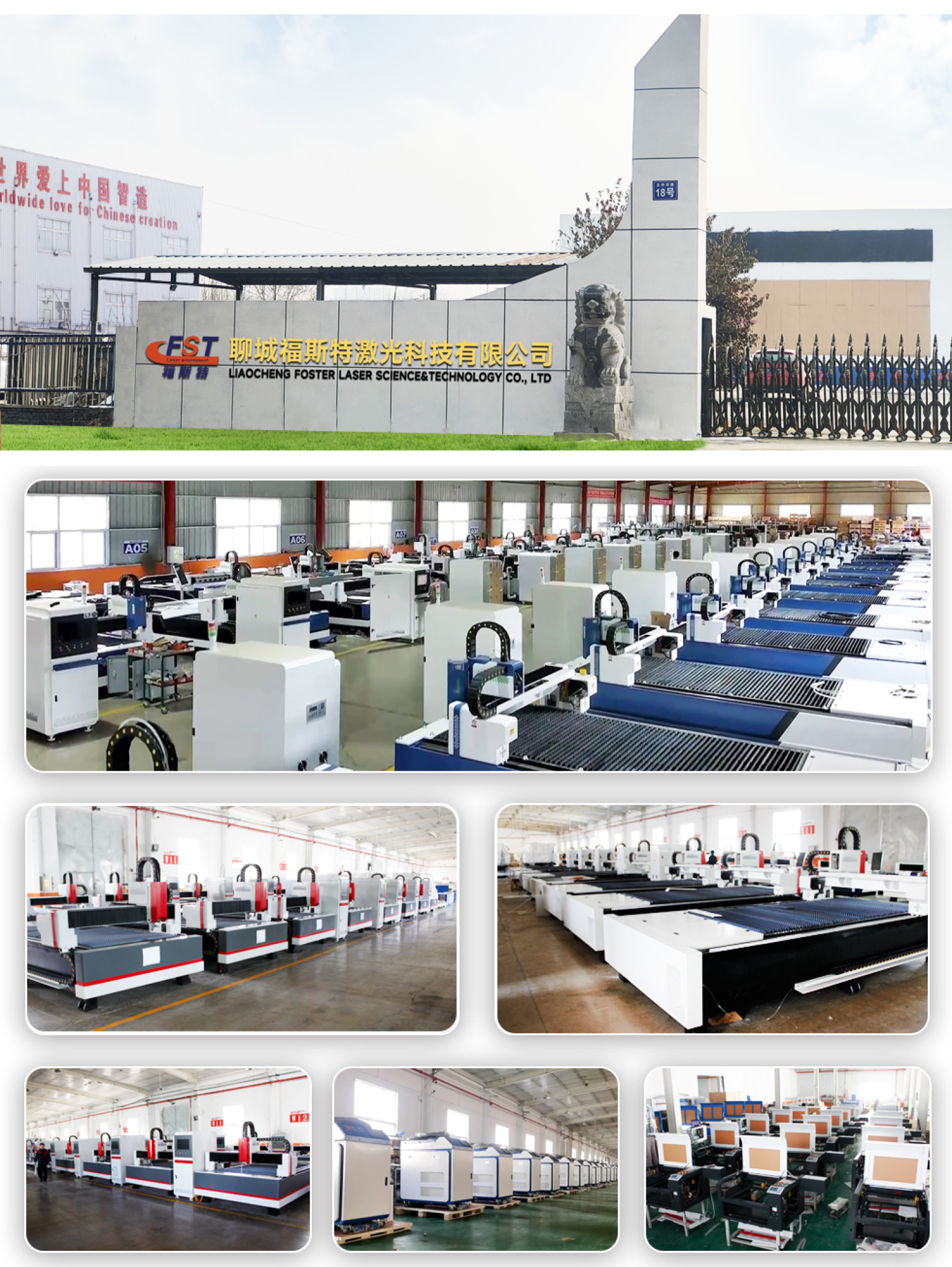

Liaocheng Foster Laser Science & Technoiogy Co., Ltd.
