Economical 6024 Three Chuck Automatic Fiber Laser Tube Cutting Machine 2000W 3000W Optional Metal Pipe Laser Cutter

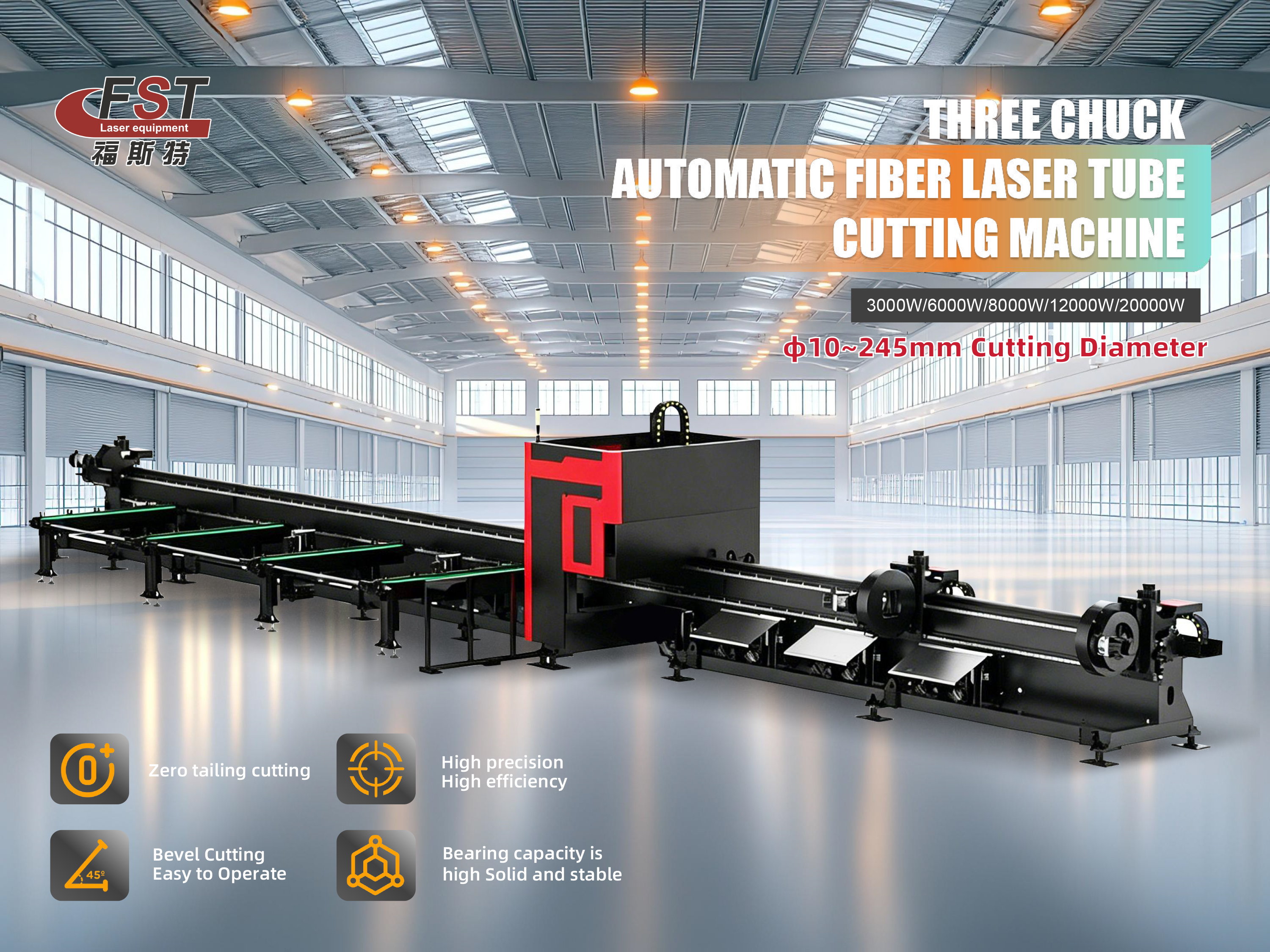

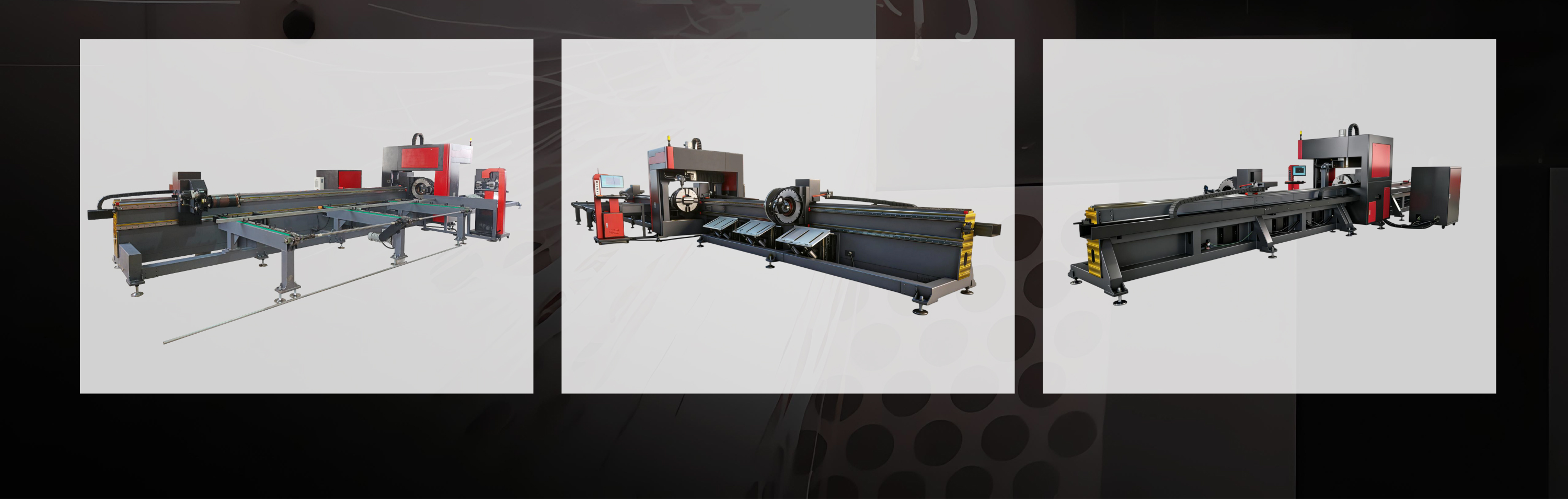

THREE CHUCK AUTOMATIC FIBER LASER TUBE CUTTING MACHINE
Three -chuck fiber laser tube cutting machine is equipped with medium to high power fiber lasersource from 3000W to 20000W. Supported by the coordinated three -chuck system, it achievesgenuine zero tail material cutting, effectively reducing waste and cutting production costs.The three -chuck structure delivers higher cutting accuracy and wider processing range, capable ofhandling complex cutting tasks. Optional bevel cutting ensures smooth and clean cutting edges,perfectly matching various welding requirements and eliminating the need for secondary grindingand finishing.It is suitable for round tubes, square tubes, rectangular tubes and various metal profiles. Featuringeasy operation, it fully meets the demands of high-precision, zero-waste and complex tube cuttingprocessing.
SELLING POINT
1.HIGH PRECISION, MATERIAL-SAVING & WELD-READY
A professional laser tube cutting machine that achieves high precision, zero waste or complex cutting. Precision cutting enables direct welding, reducing secondary grinding.
2.COMPATIBLE WITH MULTIPLE MATERIALS & TUBE TYPES

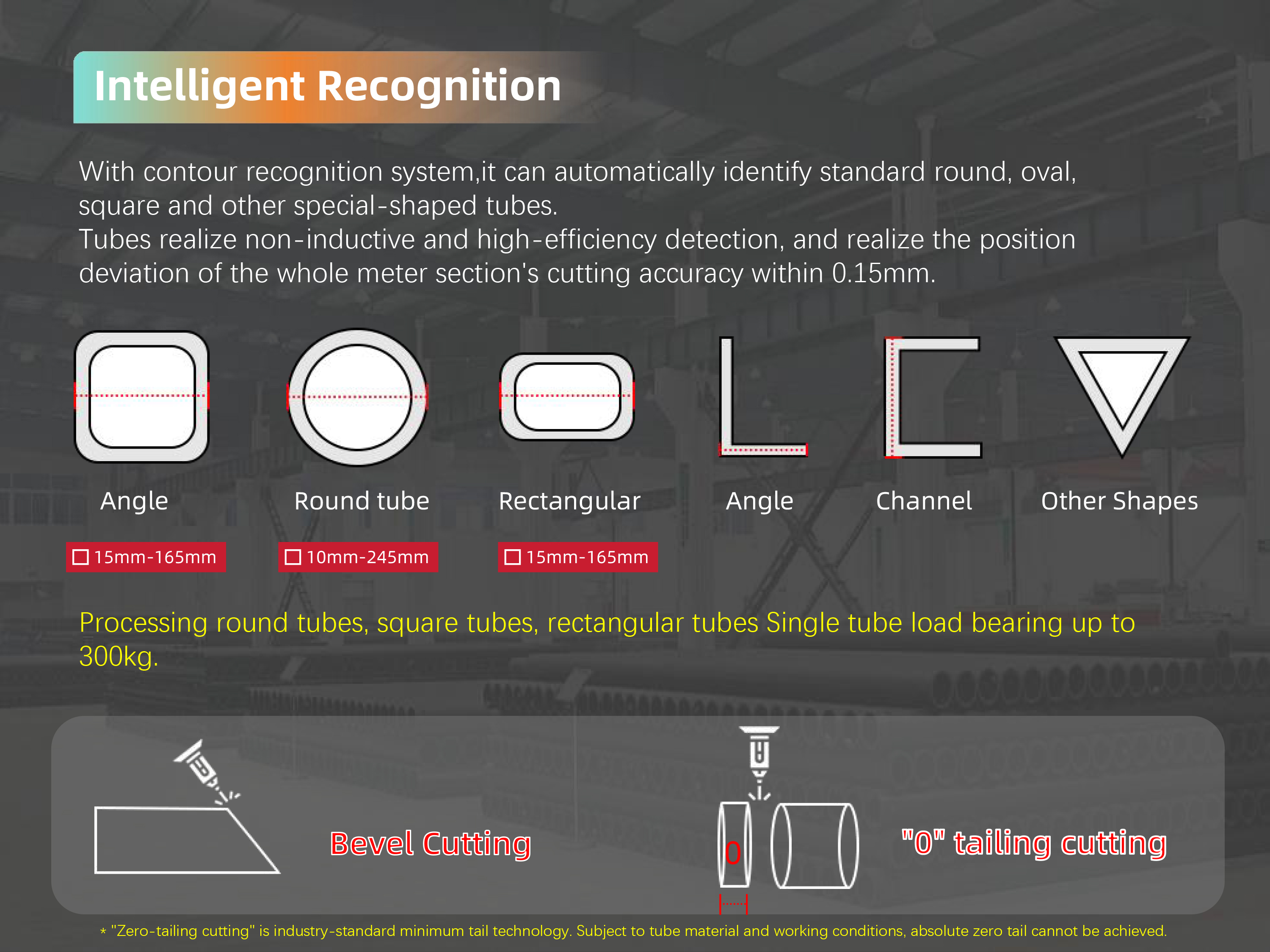

Ideal for cutting cs, ss, copper, aluminum alloy tubes( square, round, oval, and special-shaped tubes),profiles, and other metal tubes
3.THREE-CHUCK DESIGN, NO GEAR ADJUSTMENT FOR TUBE SIZES
Triple-chuck system with the second and third chucks feature full-stroke capability, eliminating gear adjustments when switching between large and small tubes.
4.CROSS-CHUCK CUTTING,ZERO MATERIAL WASTE
The cutting head can cross the center chuck and cut in the other direction, realizing really zero scrap.
improving material utilization.

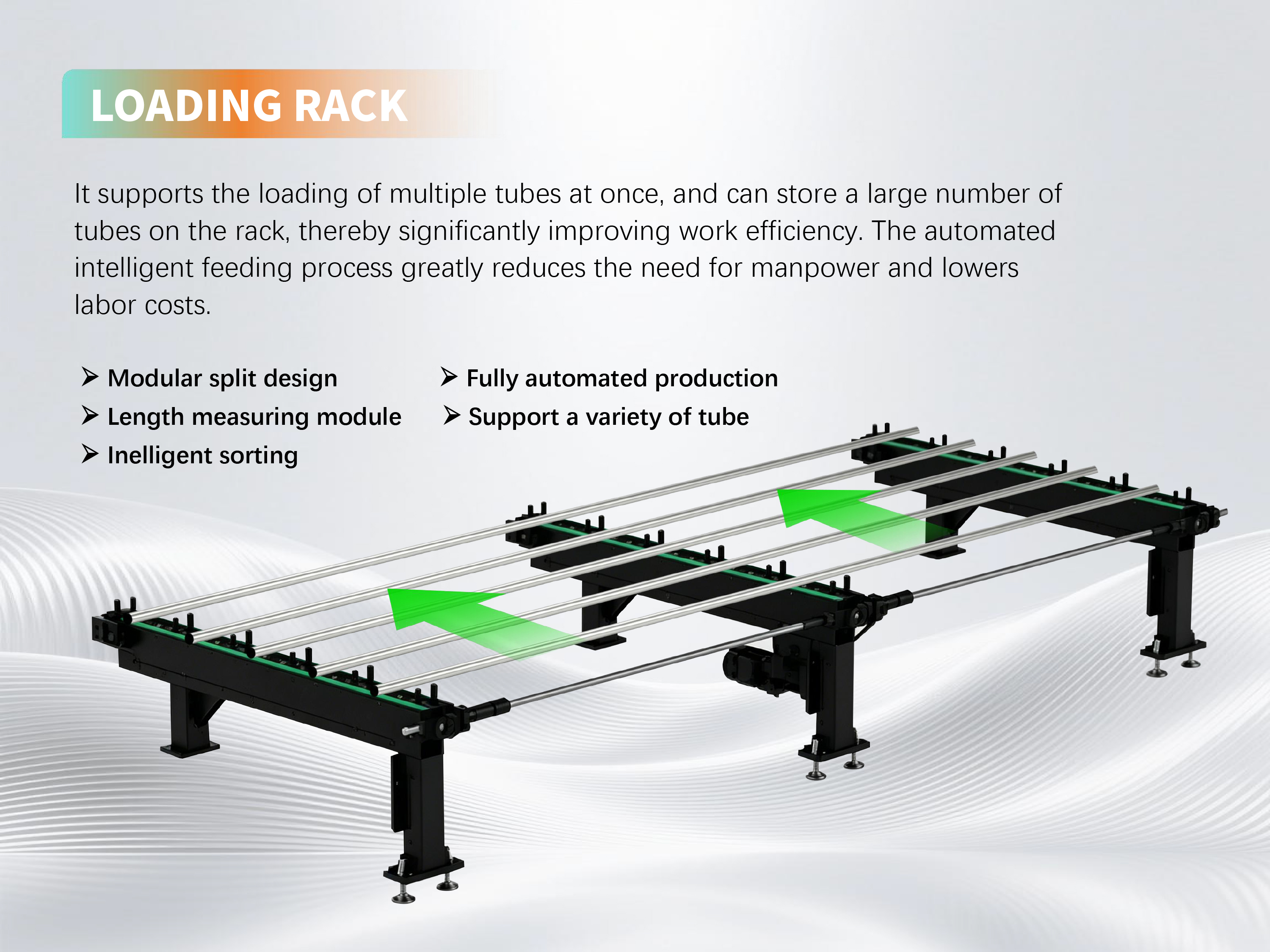

5.AUTOMATIC LOADING & FEEDING OF TUBES
Automatically completes the loading. feeding and reaching the chuck clamping position of a single
tube.

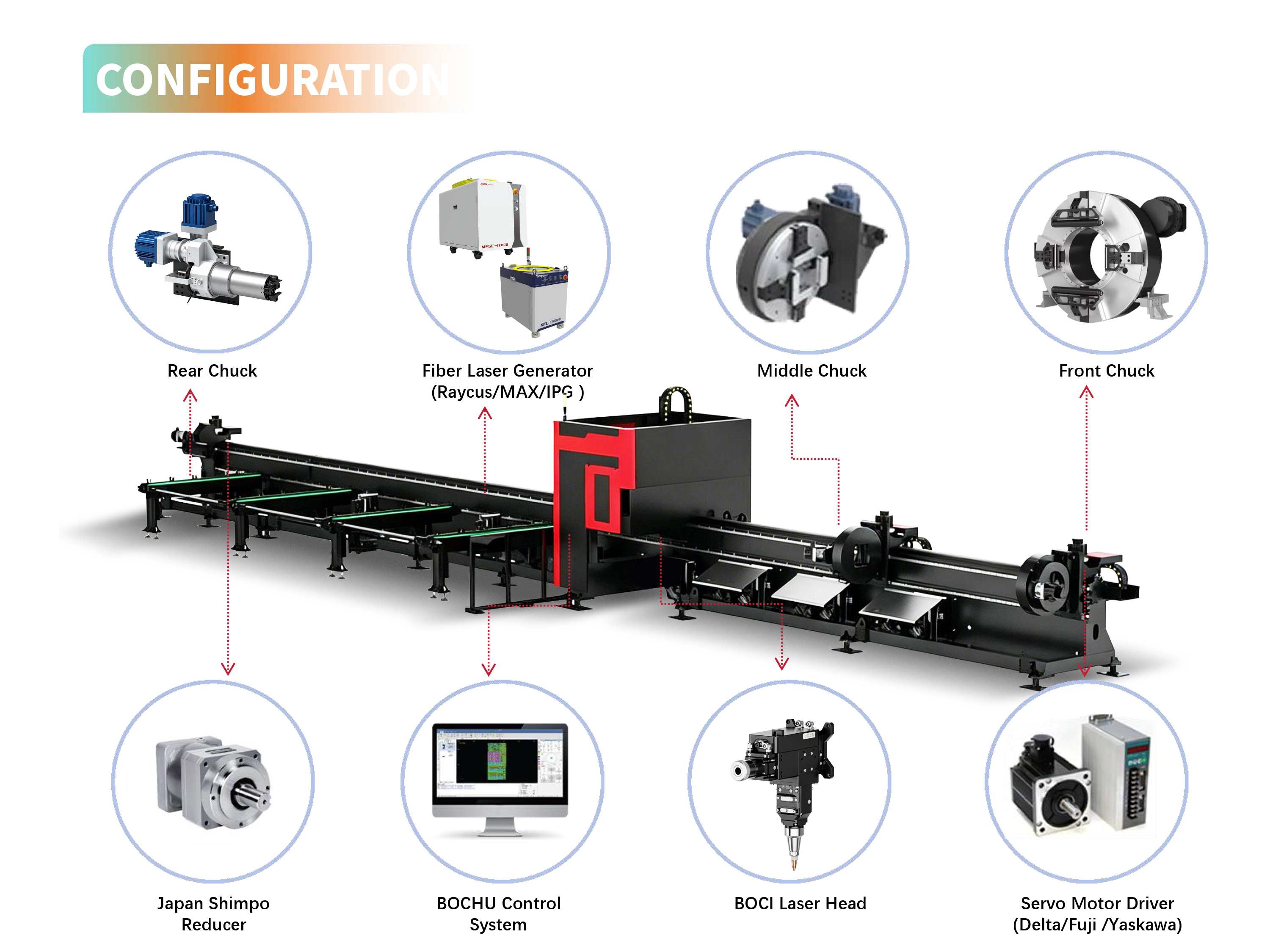

| Chuck Size | 245mm |
| Loading Length | 6000mm |
| Tail Material Length | Zero tailing |
| Unloading Length | 6000mm |
| Chamfer Swing Angle | ±45° |
| Chuck Over-travel | Three-chuck with offside function |

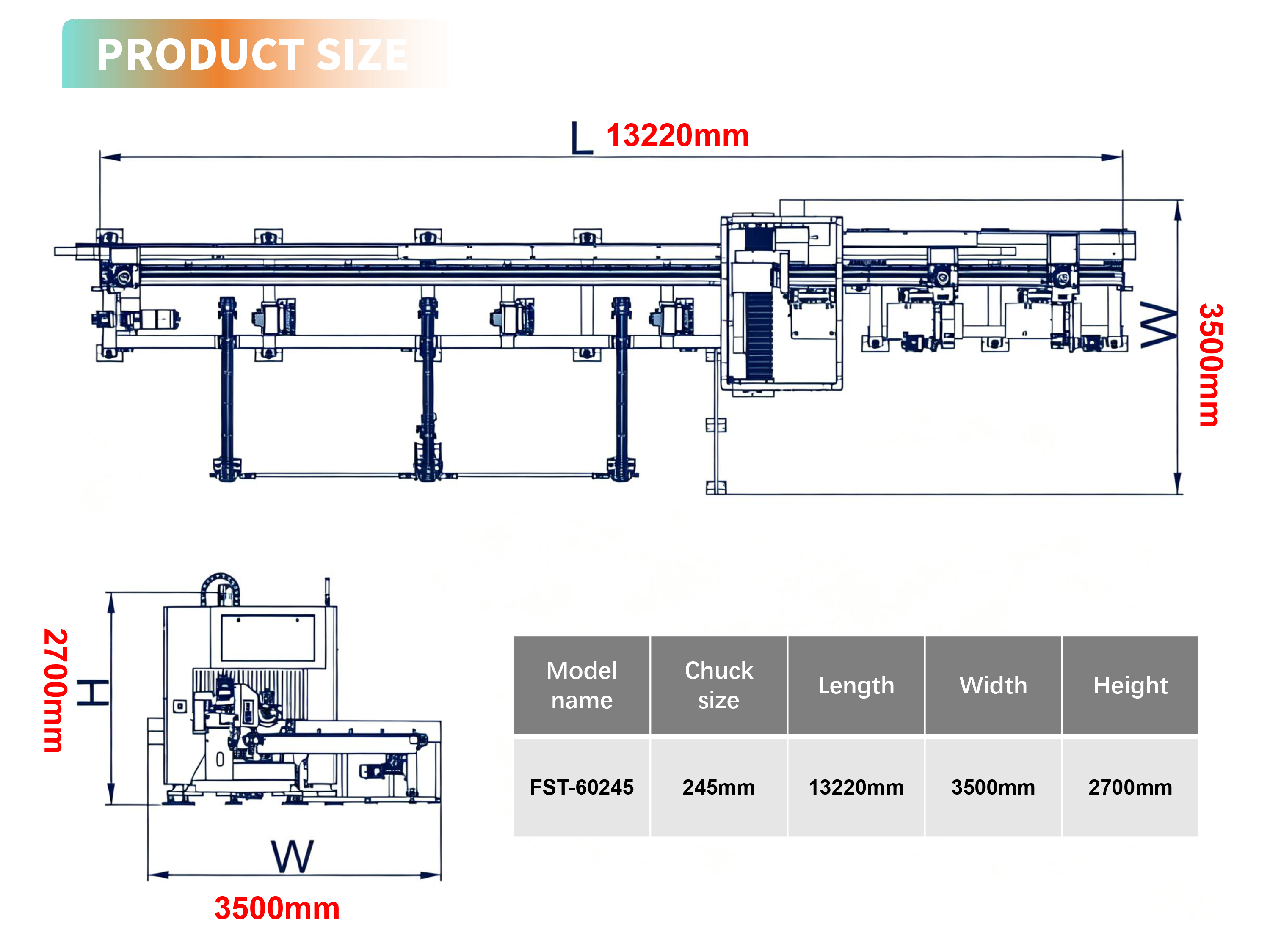

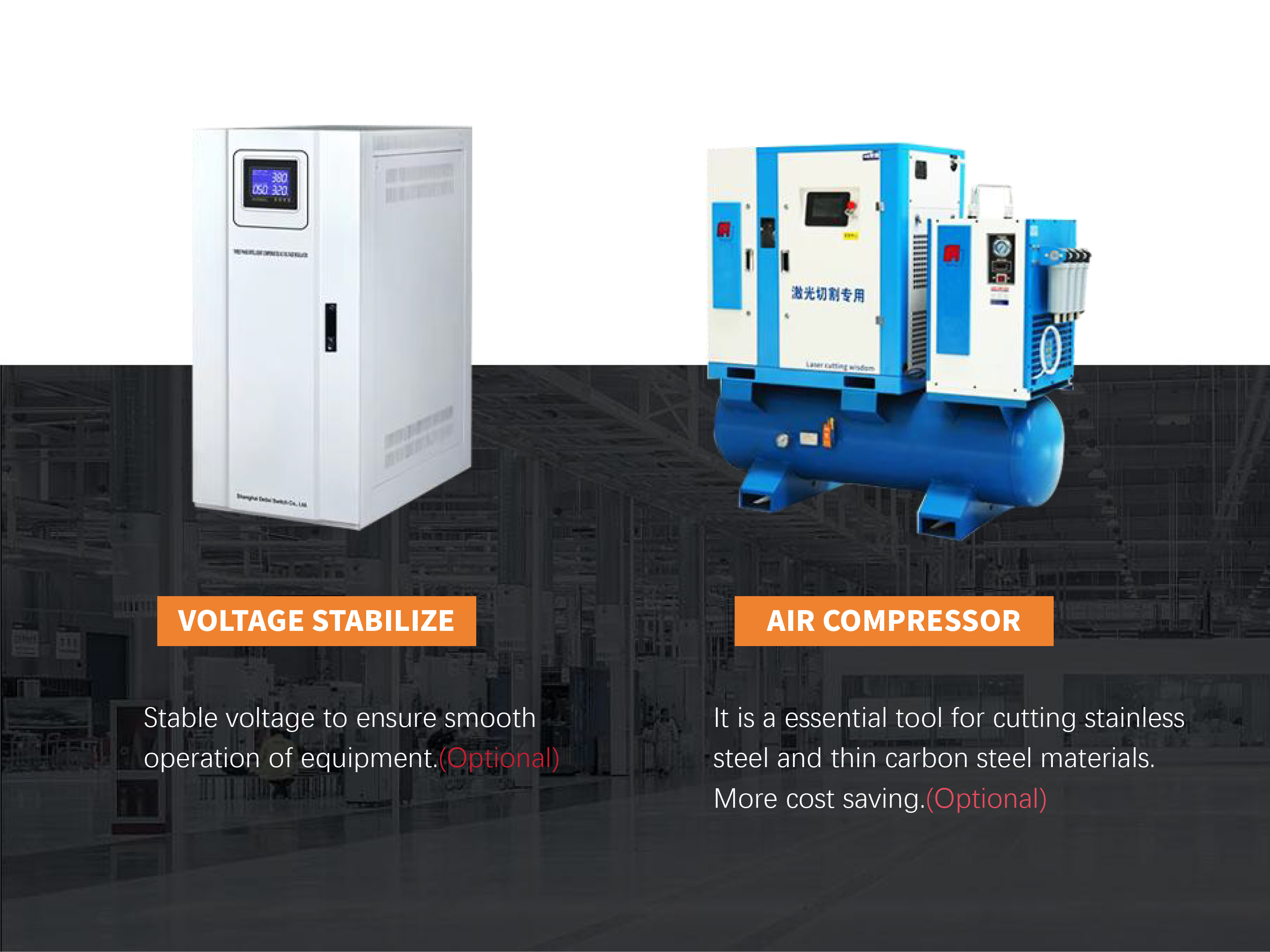

| Working Area | 6000mm* φ10~245mm |
| Cooling System | Water Cooling |
| Laser Source | Raycus/MAX/IPG |
| Cutting Head | BOCI BLT510 |
| Voltage | 380V 3Ph, 50Hz |
| Linear Guide Rail | HIWIN Rails |
| Rack and Gear | Taiwan YYC Rack |

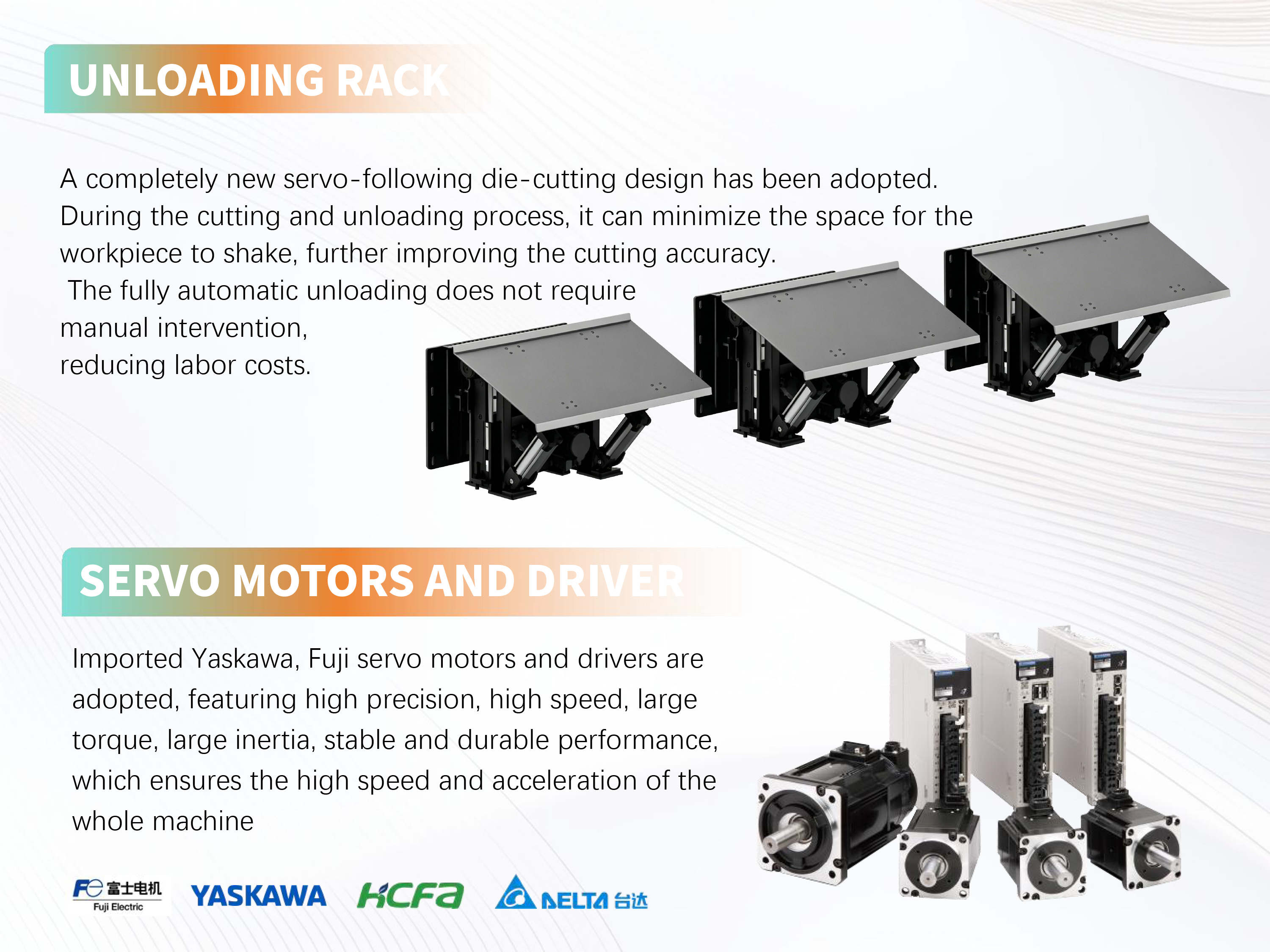

| Servo Motors and Drives | Fuji/Yaskawa/Delta |
| Single tube support weight | 300KG |
| Laser Power | 3000W/6000W/8000W/12000W/20000W |
| Chiller | HanLi/S&A |
| Maximum Speed Acceleration | 1.5G |
| Repeat the rotation accuracy | ±0.1mm |
| Positioning accuracy | ±0.1mm/m |
| Max Speed of Chucks | 100r/min |
| X/Y Position Accuracy | 0.05m/min |

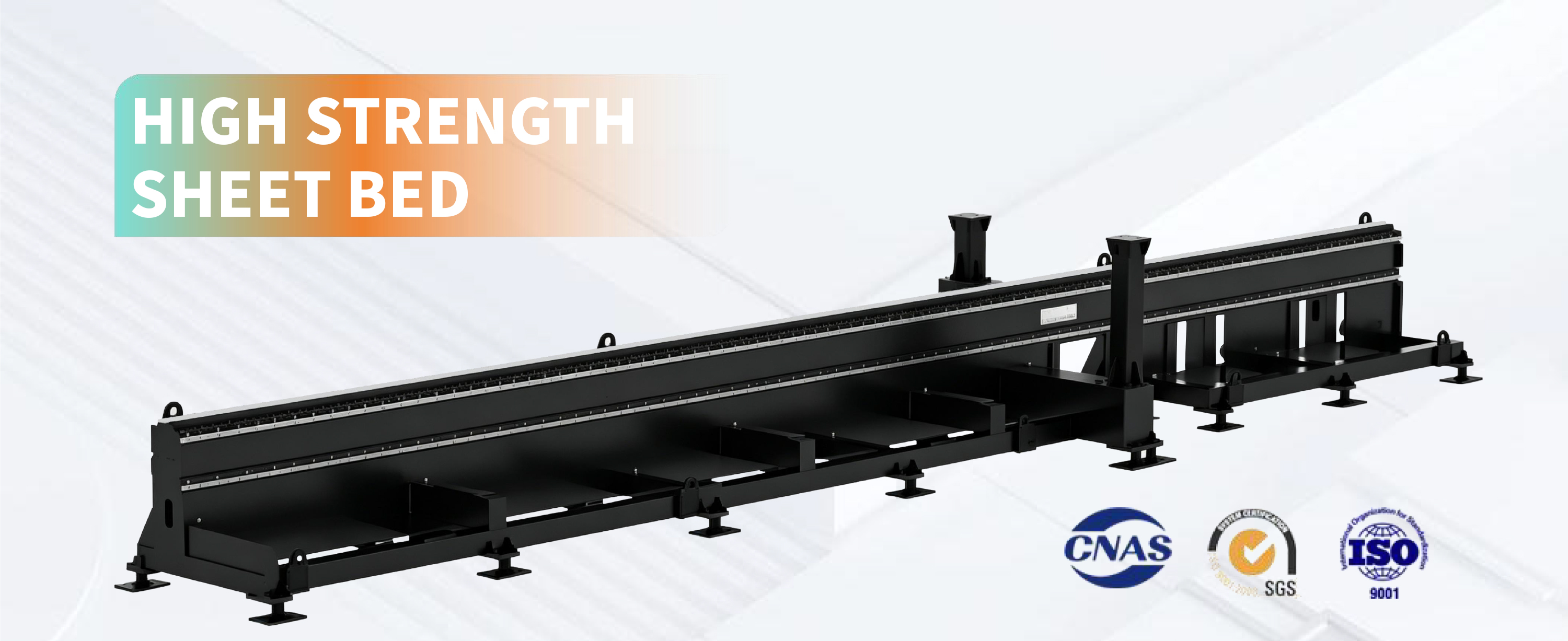

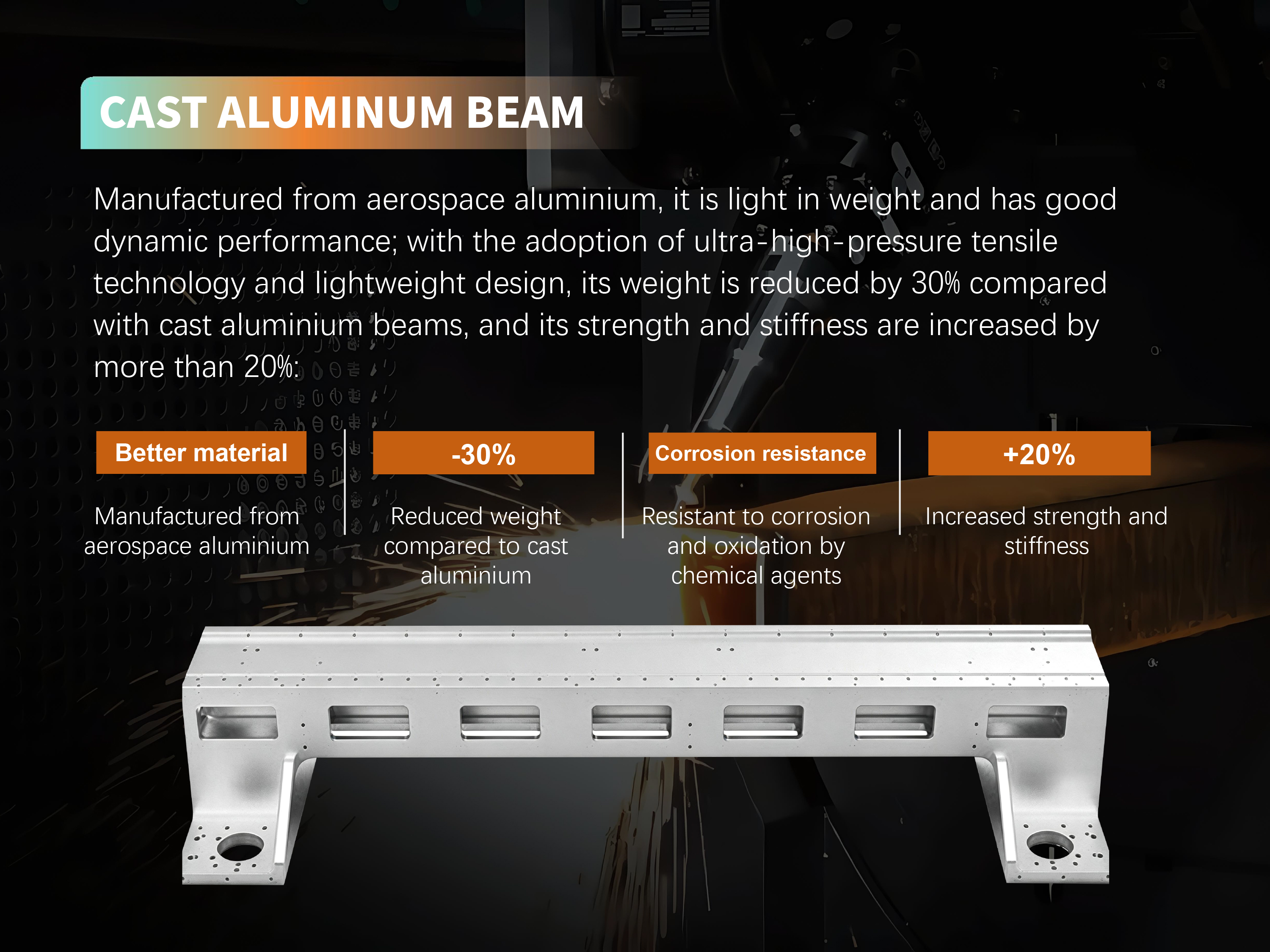

To meet high-speed operation requirements, the main bed is high-strength steel weldedwith two stress relief treatments, ensuring long -term accuracy, stability and superior rigidity.It adopts an integral high-strength plate welded bed, stable and durable. Bed high-temperature heat treatment and guide rail high-precision machining release internal stressand enhance deformation resistance.
Our self-developed high-low dual exchange platform complies with European standards,featuring fast switching speed, simple design and stable reliable performance.

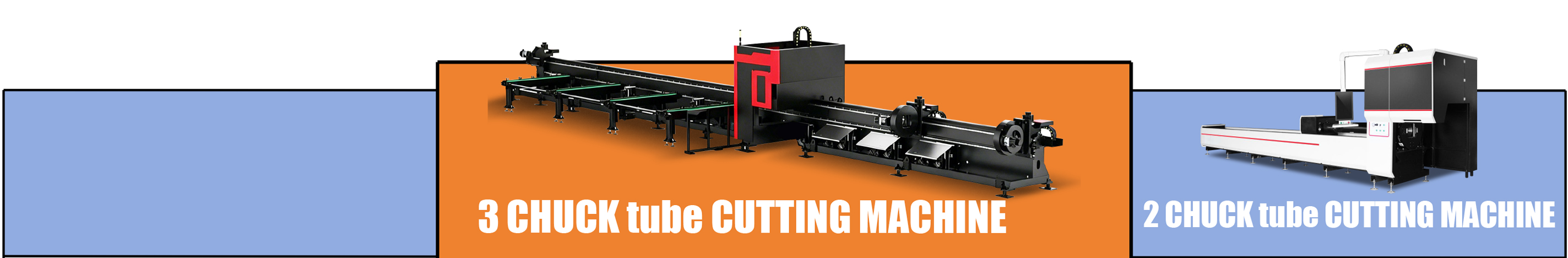

| SUPPORT STRUCTURE | The front, middle and rear three clamps are linked and support each other. | Double chuck clamping on both ends. |

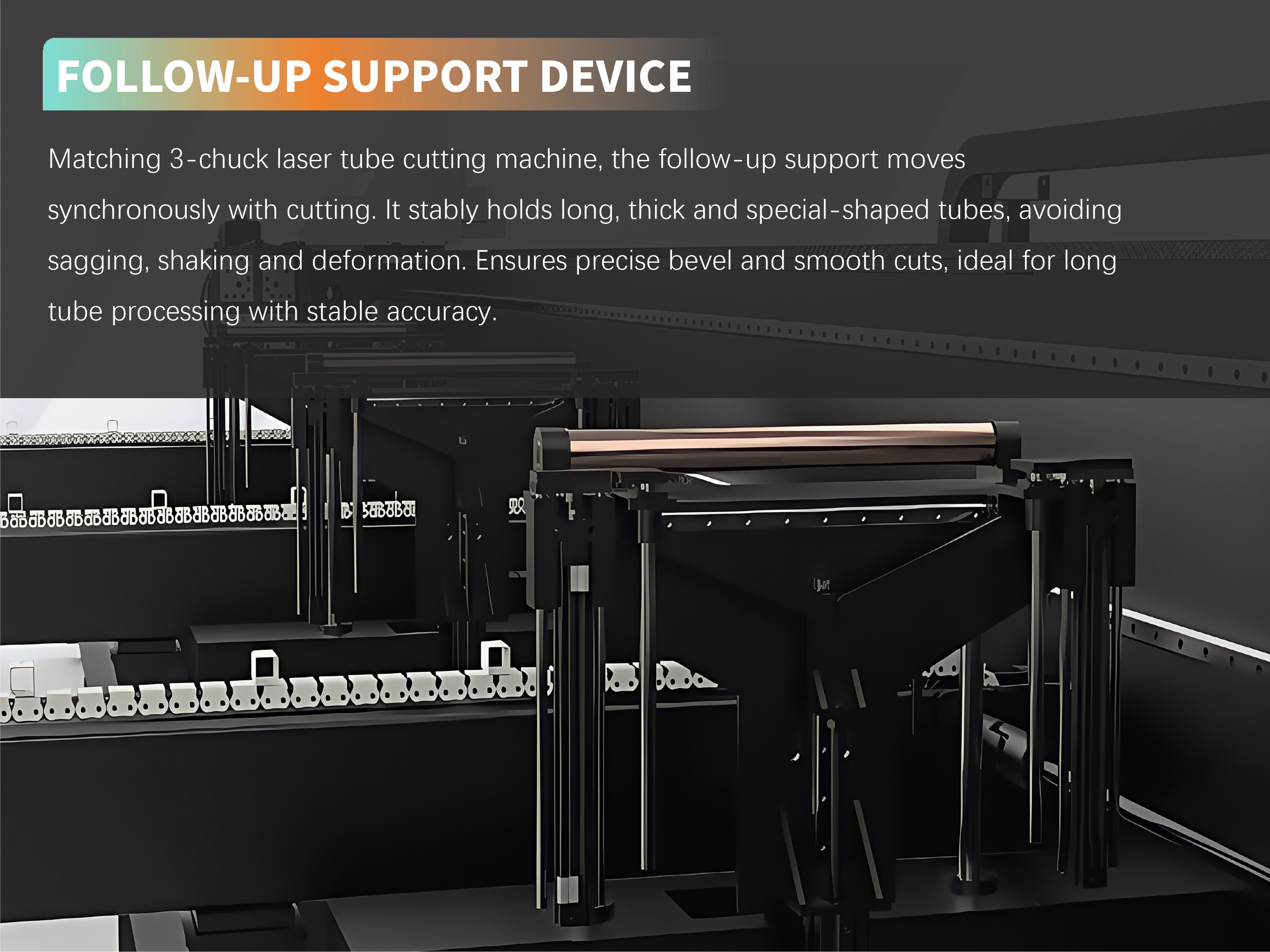

| LONG TUBE PROCESSING | Full multi-point support, preventing tube sagging and ensuring smoother operation | Long tubes are prone to saggingand shaking, and their accuracy islikely to deviate. |
| CUTTING ACCURACY | High-precision positioning, with higher flatness of bevels and surfaces | The cutting error of the medium-long tube is relatively large. |
| LABOR COST | 1 operator for 2-3 machines; fully automated process,no manual tailing intervention | 1 operator for 1 machines; manualtailing handling and tube alignmentrequired |
| MATERIAL UTILIZATION RATE | Zero tailing cutting | Tail length 200-300mm |
| PROCESSING EFFECT | Smooth cuts, standard bevels, no need for secondary grinding | Some conditions require a second adjustment. |
| OVERALL PRODUCTION EFFICIENCY | No downtime for tail handling; next tube feeds automatically for uninterrupted processing 80-200 pieces of 6m tubes per shift | Requires 1-2 minutes of downtimeper tube for tail removal andreloading 60-150 pieces of 6m tubes per shift |
Liaocheng Foster Laser Science & Technology Co., Ltd.

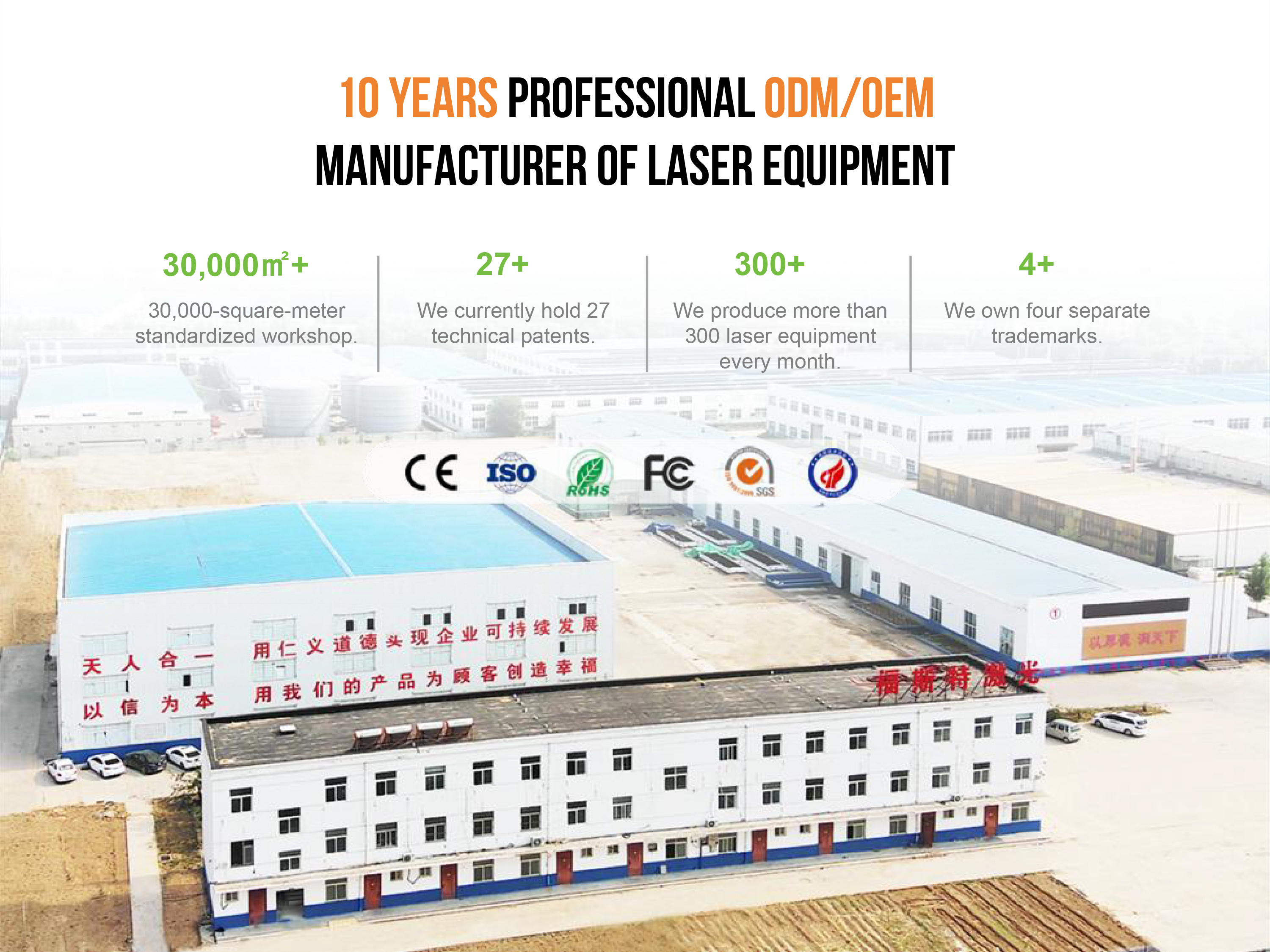

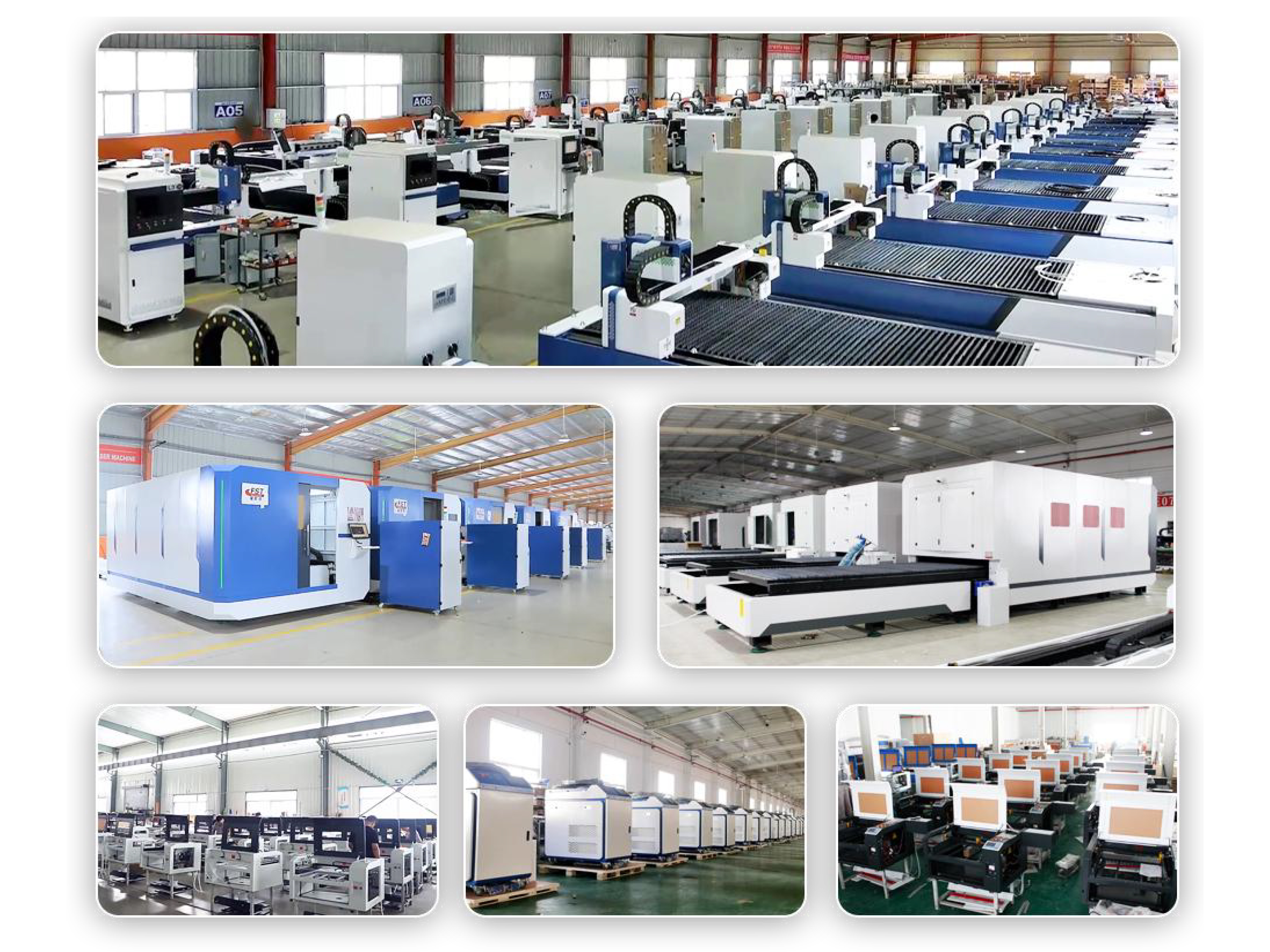

Liaocheng Foster Laser is a laser equipment company with over 20 years of technical experience, integrating R&D, production, sales and after- sales service. We focus on the manufacturing of laser equipment such as fiber laser tube cutting machines, flat laser cutting machines and laser welding machines. With a modern production base, our products have passed CE and other international certifications, exported to more than 60 countries worldwide, and won high recognition from customers at home and abroad for stable quality.

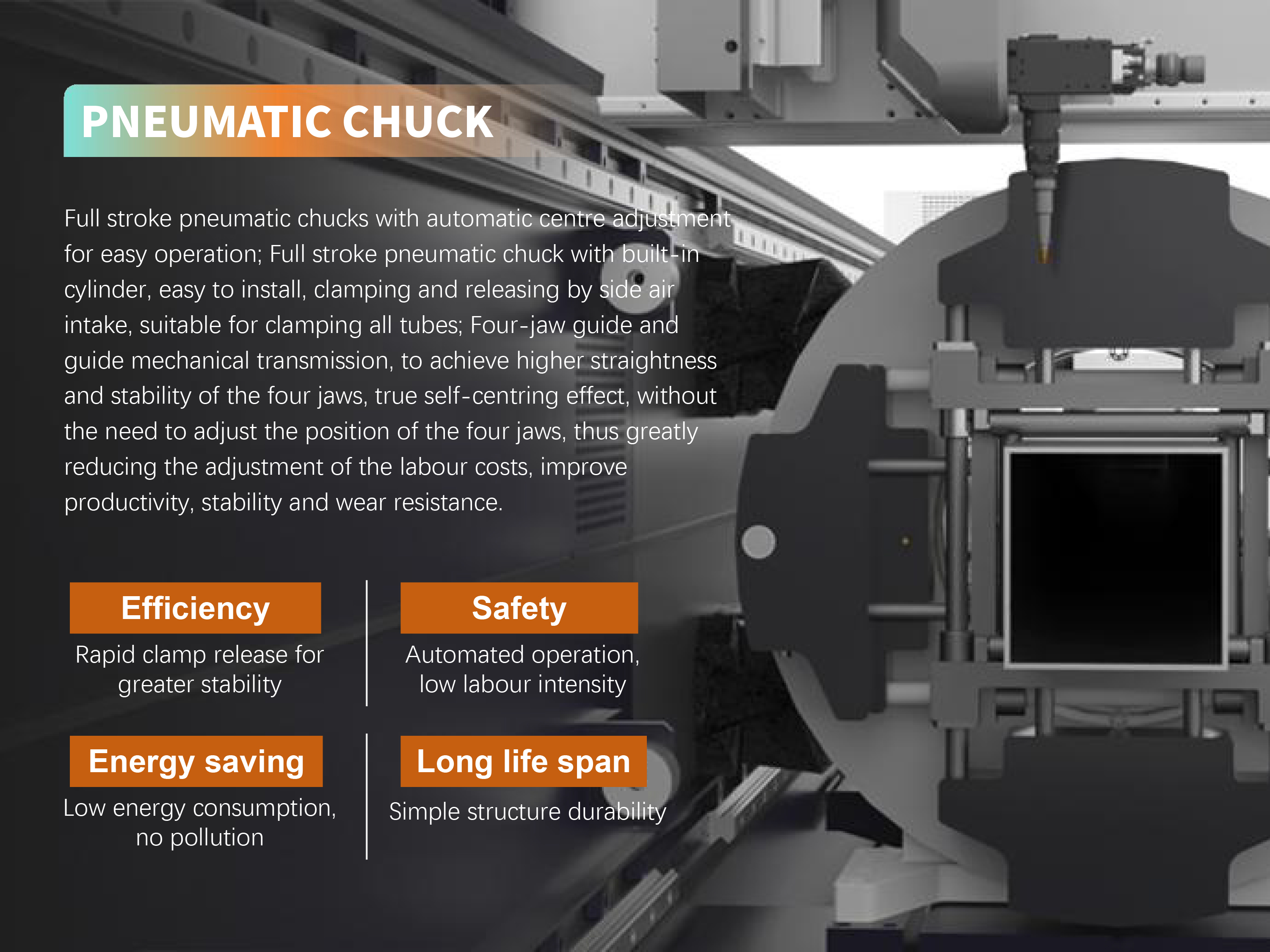

Our flagship three -chuck fiber laser tube cutting machine adopts a side -mounted triangular frame bed, featuring strong load-bearing capacity, high rigidity, stable operation and good shock resistance. Equipped with the latest pneumatic three-chuck, it supports independent clamping and opening. synchronous rotation and movement. Thanks to the unique chuck layout design, it truly achieves zero tail material cutting, greatly reducing raw material waste. Bevel cutting is optional, and no secondary processing is required for welding.

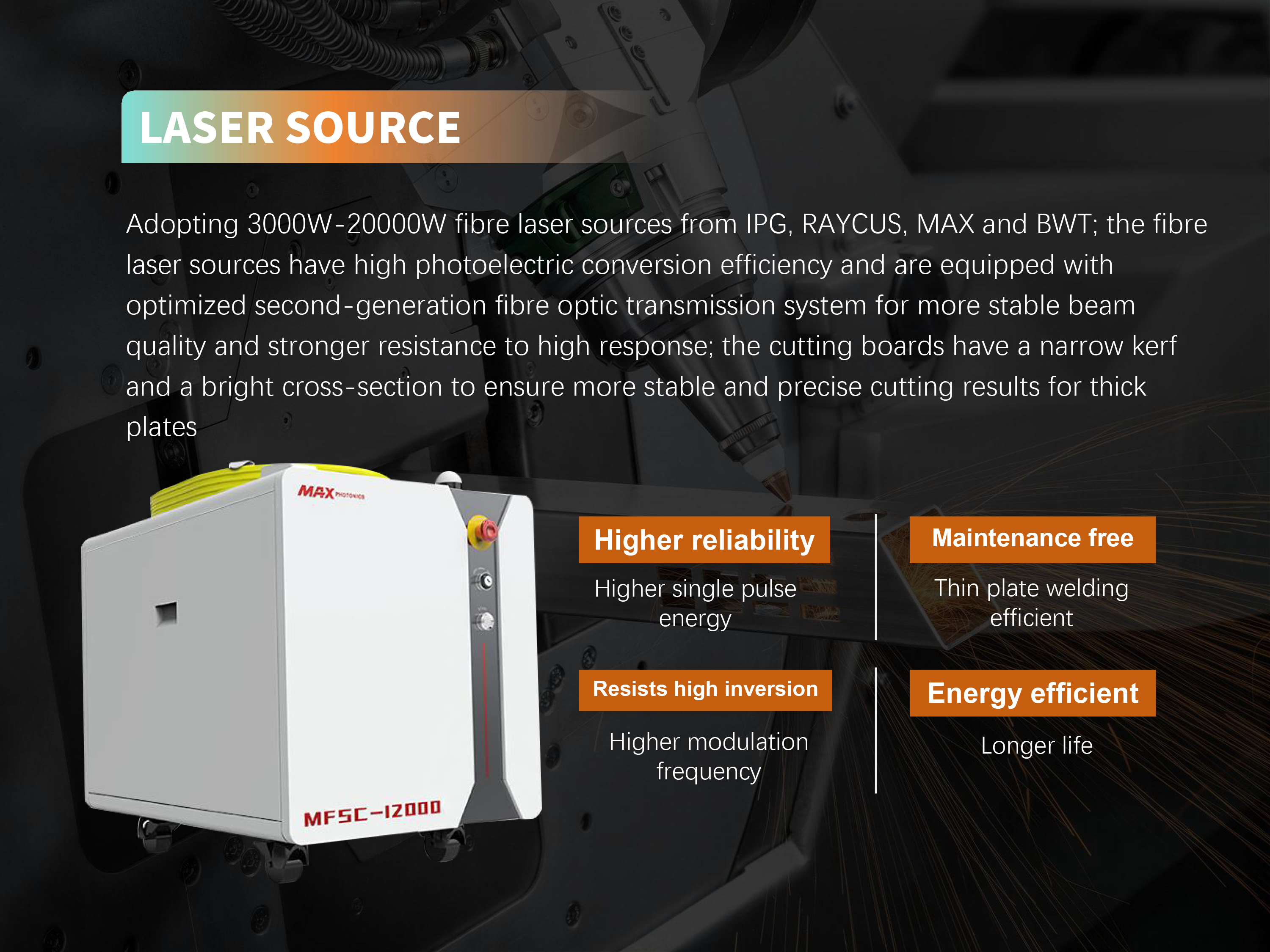

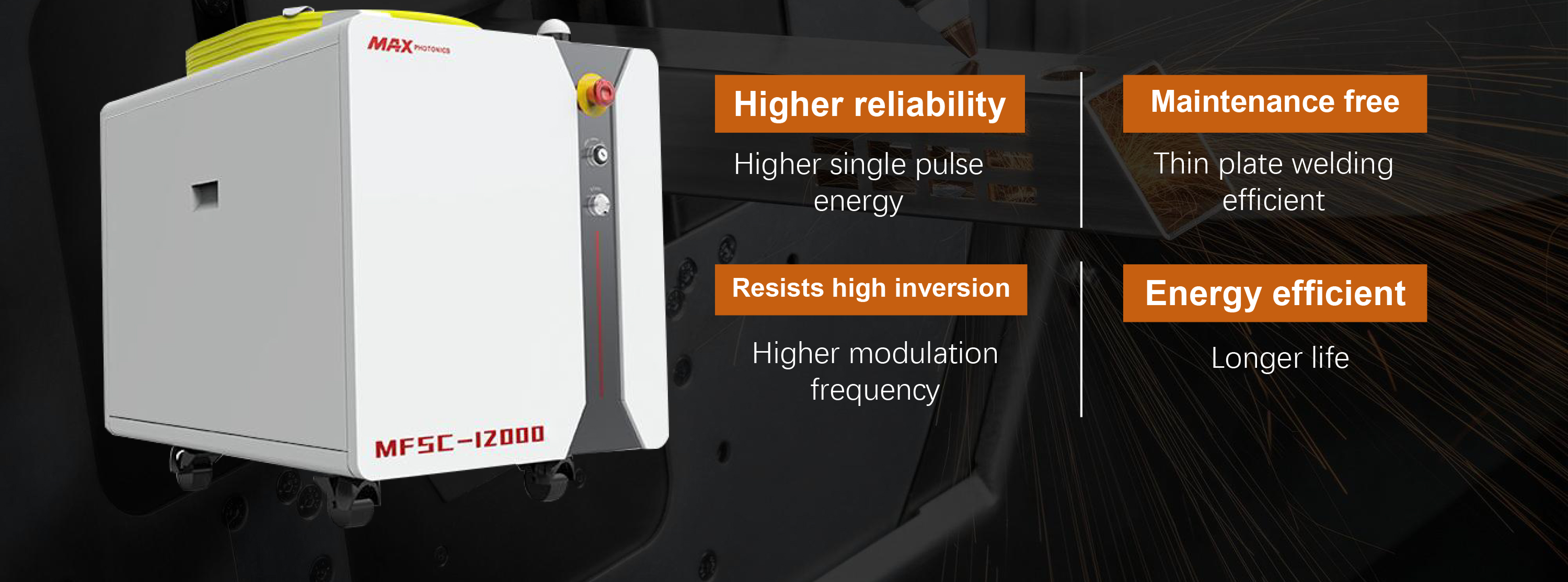

The equipment can be equipped with Raycus, Max, IPG laser sources with power ranging from 2000W to 1200oW, matched with imported servo motors and precision transmission structures, ensuring high precision,fast speed and long-lasting stable performance.

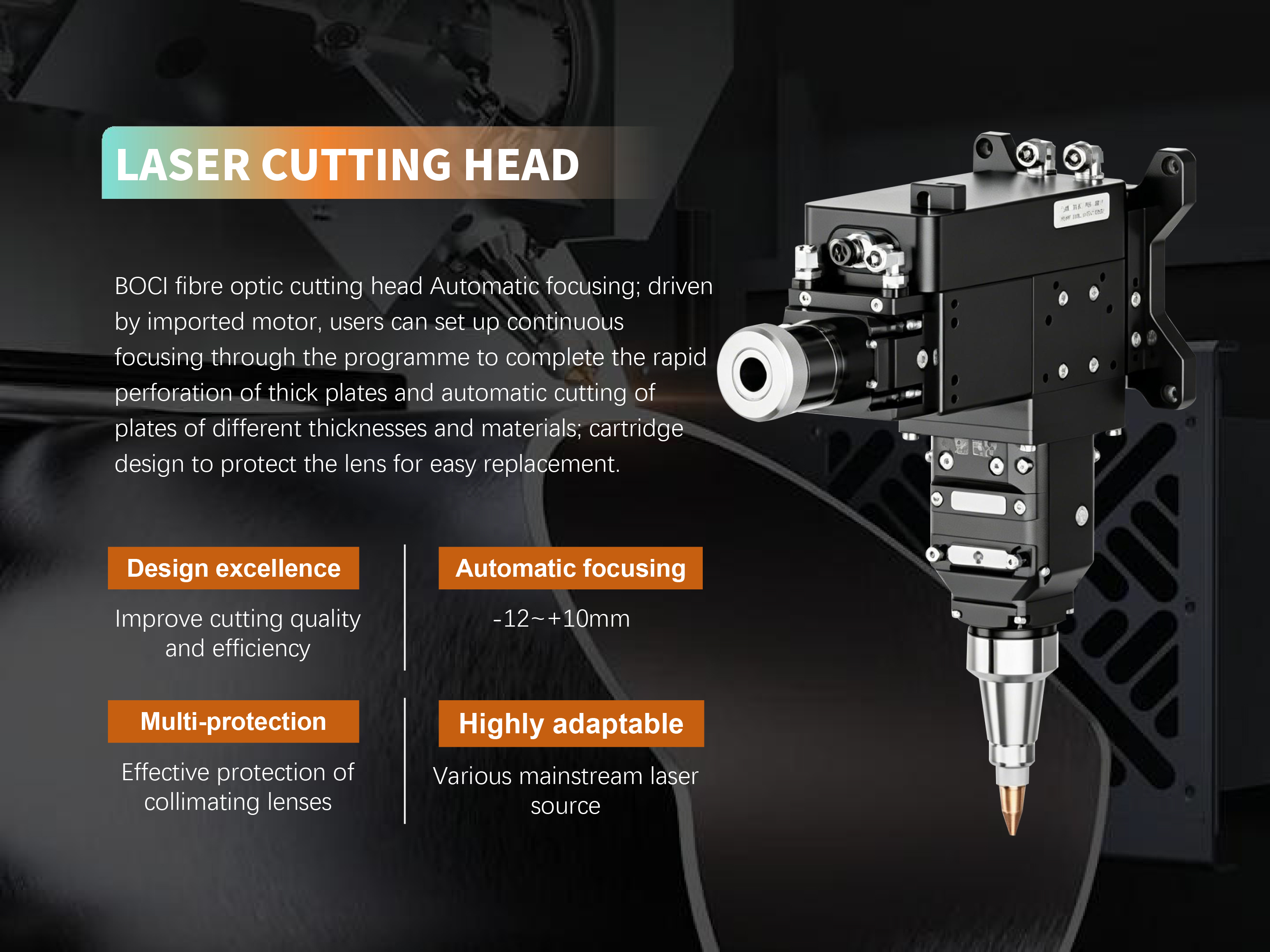

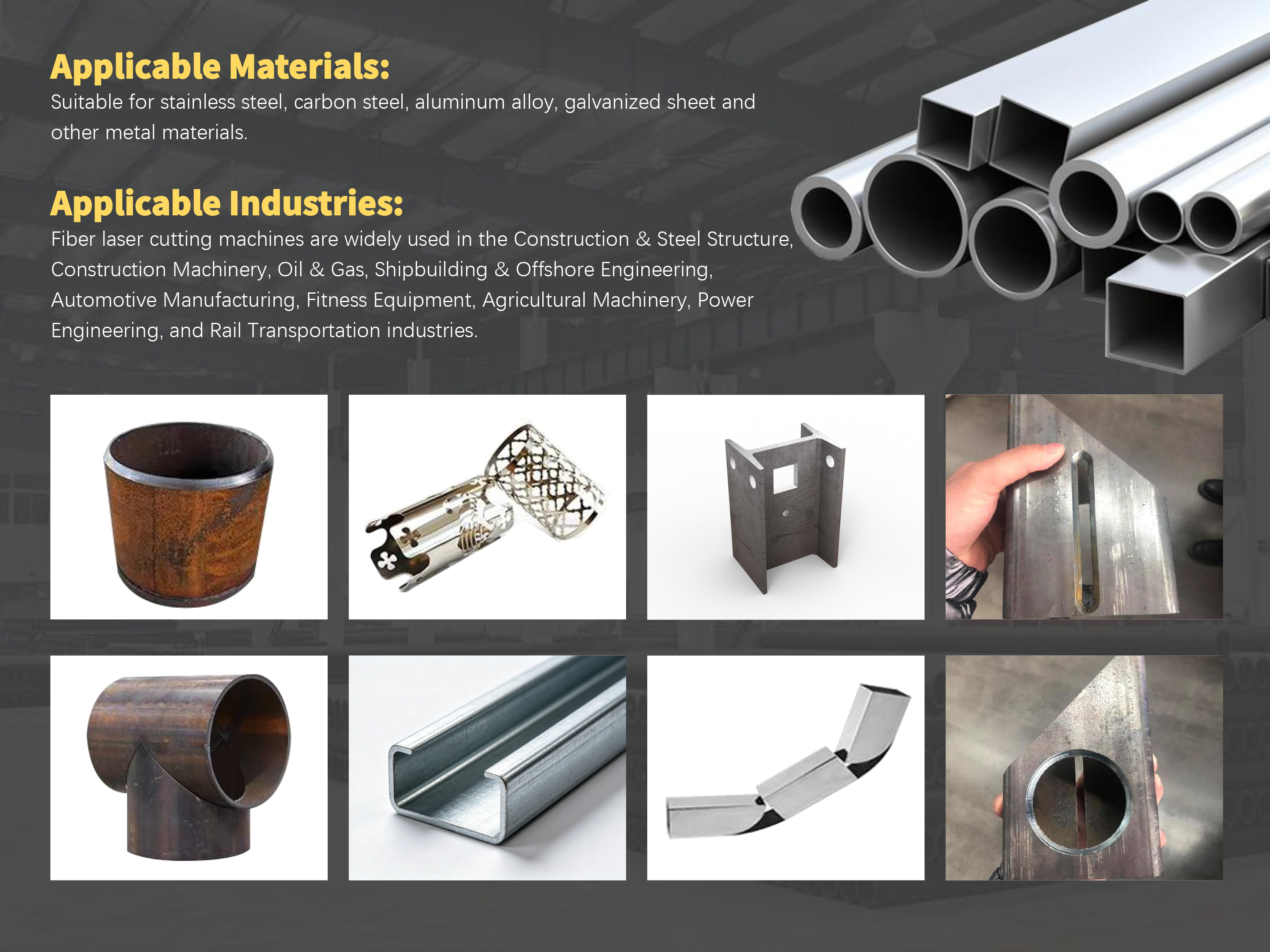

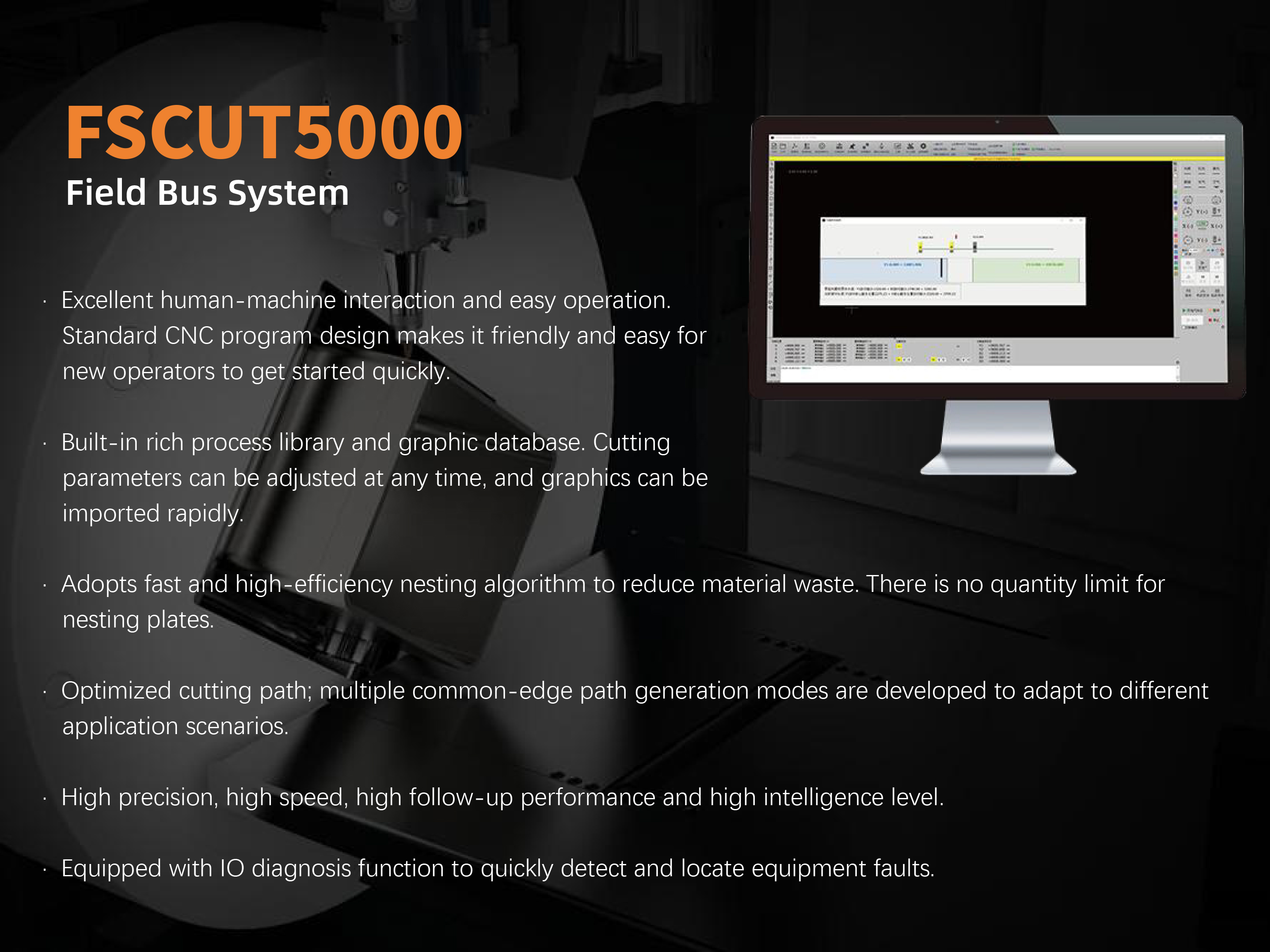

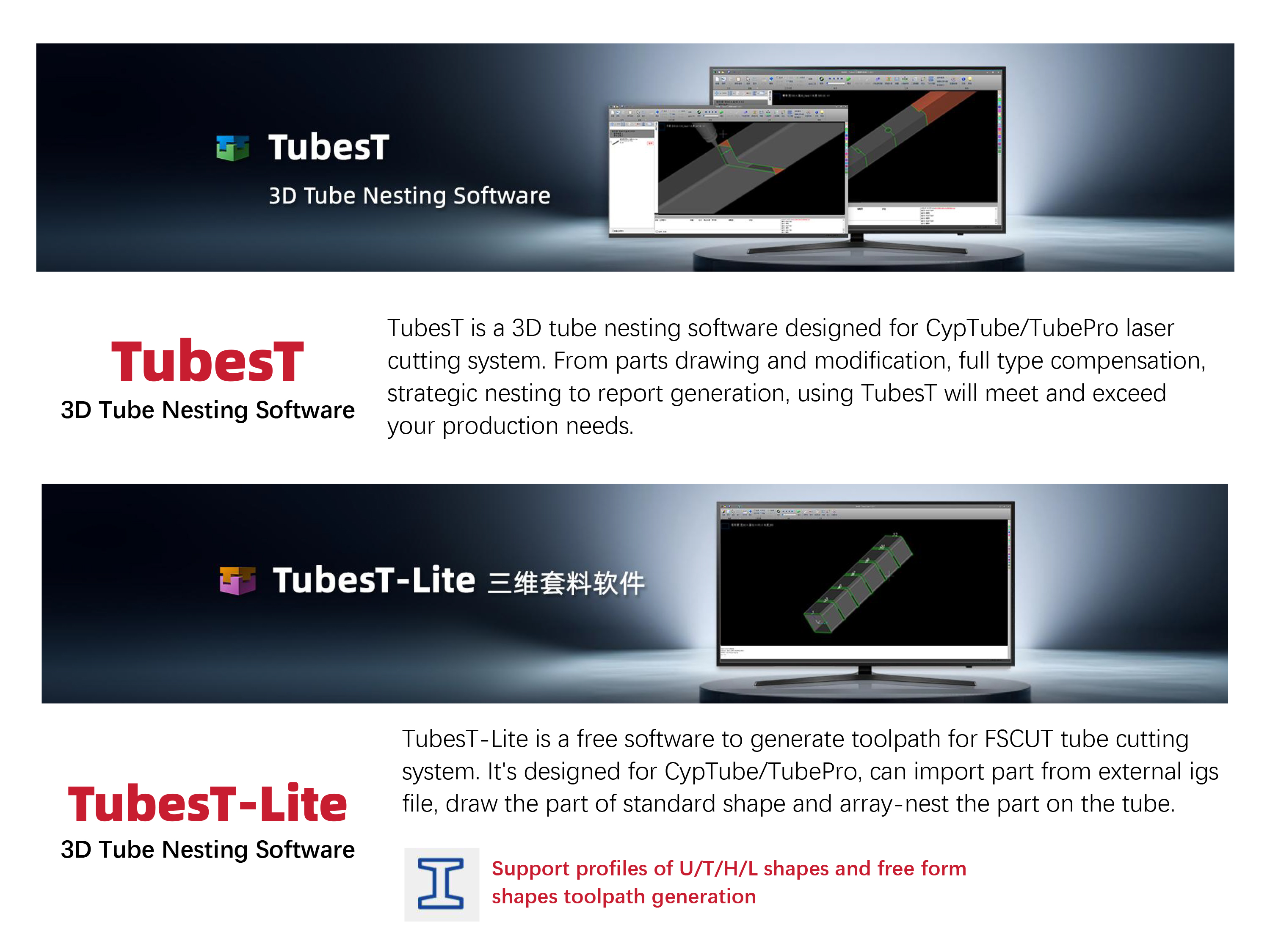

It is equipped with a dedicated auto-focus cutting head and wireless handle control, supporting semi-automatic feeding and unloading, which is easy to operate. It can cut profiles such as round tubes, square tubes, angle steel and channel steel, and is suitable for materials such as carbon steel, stainless steel , aluminum alloy and galvanized sheet, widely used in automobile, shipbuilding and other industries. We always provide cost-effective laser tube processing solutions for global customers with high-quality equipment,professional technical support and comprehensive after-sales service.
FAQ
Q: What exactly does "o"tail cutting ?
"O" tail material cutting refers to the process of tube cutting. Through the coordinated movement of the
three-chuck system (linkage of front, middle and rear chucks), the material is fully utilized. When cutting thelast section, it can stillbe accurately clamped and cut, achieving almost no waste residue, reducing material costs, and is especially suitable for high-value tubes or mass production scenarios
Q: What are the advantages of a three-chuck system?
1.High material utilization rate: It can realize full utilization of materials with almost no waste residue.significantly reducing raw material costs, suitable for high-value tube processing scenarios.
2.Wider processing range: The middle chuck works with the front and rear chucks to support complexcutting such as hollowing and pattemns in the middle of tubes, without the need to adjust equipmentadditionally, breaking the operational limitations of the two-chuck system.
3.Higher precision guarantee: It provides uniform dlamping force during long tube processing, reducing tubebending and vibration, avoiding cutting deviations, and meeting the needs of mass and high-precision
processing.

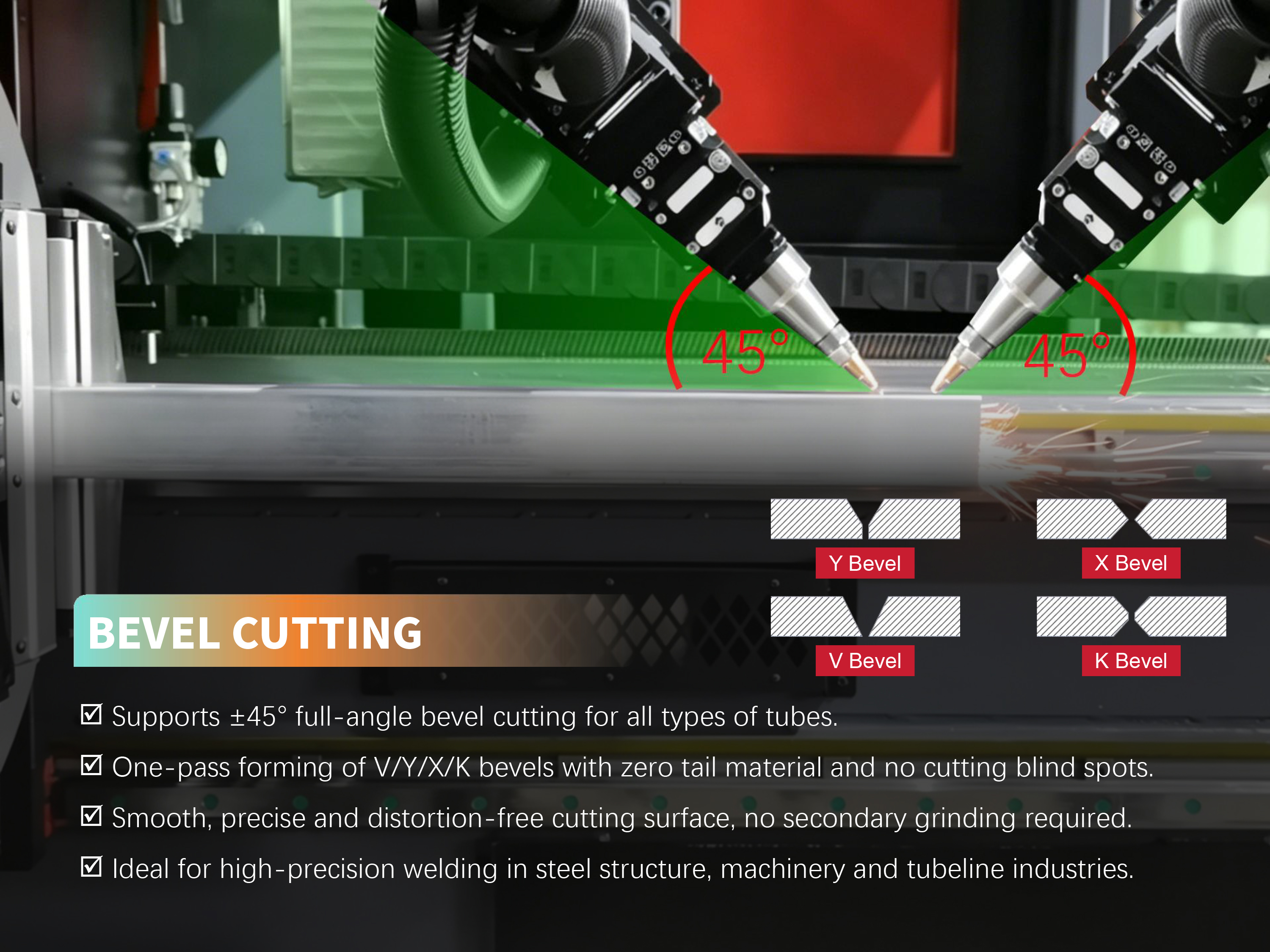

Q: What is the bevel cutting angle?
The bevel swing angle is ±45°. It supports grooving, V-shape and Y-shape bevel cutting within 50°, with a cutting precision of +0.03mm, ensuring optimal edge geometry for welding and assembly
