Short Description:

Foster laser CO2 Laser Engraving Machine with different working area , laser power or working table , Which application is engraving and cutting on acrylic , wood , fabric , cloth , leather , rubber plate PVC , paper and other kinds of non metal materials.

1390 laser cutting machine are widely used in clothing , shoes,luggage , computer embroidery clipping , model , electronic appliances , toys , furniture , advertising decoration , packaging and printing , paper products , handicrafts , Household appliances , laser processing and other industries.


Download as PDF

Product Detail

Product Tags

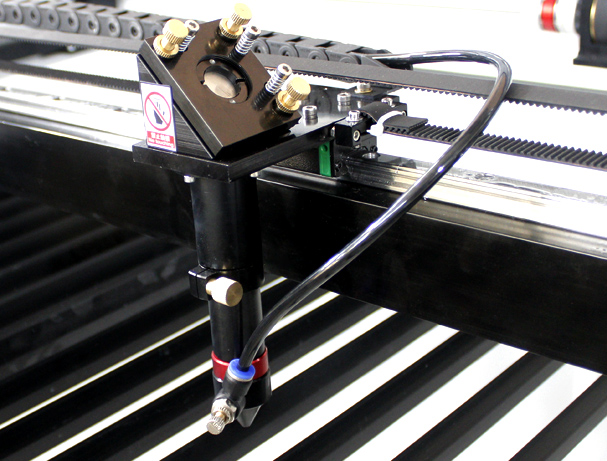

LASER HEAD

High precision retractable laser head,easy to adjust focal length , equipped with red light positioning system , accurate positioning , reduce materials.

Auto-blowing to protect laser head and prevent the laser burning.

LASER HEAD

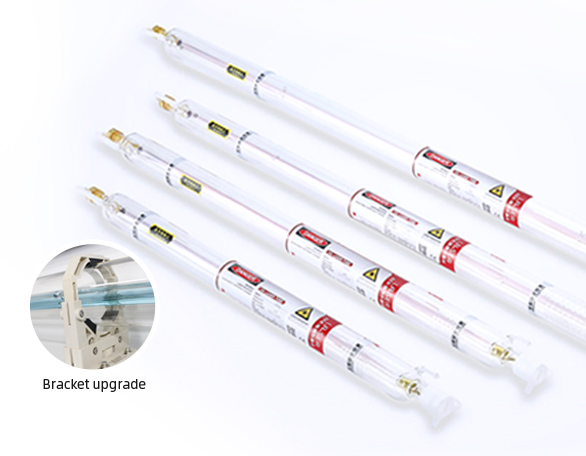

LASER TUBE

LASER TUBE

Closed Co2 laser tube , long life stable power Installation of reinforcement settings , the lase tube is not easy to collide and cause damage when moving the machine ( EFR , RECI , CDWJYONGLI , JOY . Optional

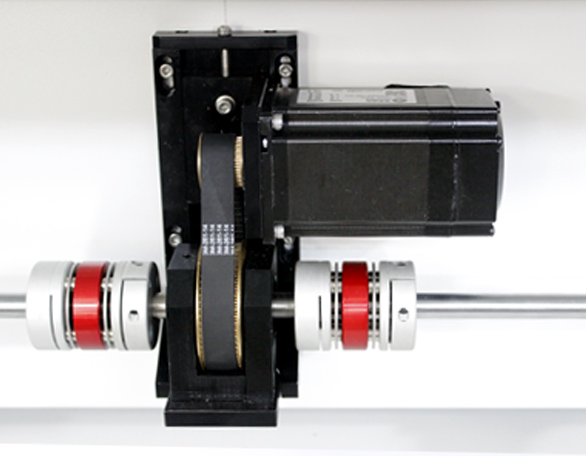

BRAND STEPPER MOTOR

High operating accuracy, high temperature resistance, can bear the high temperature generated  by high-speed operation, and low noise.

BRAND STEPPER MOTOR
BRAND STEPPER MOTOR

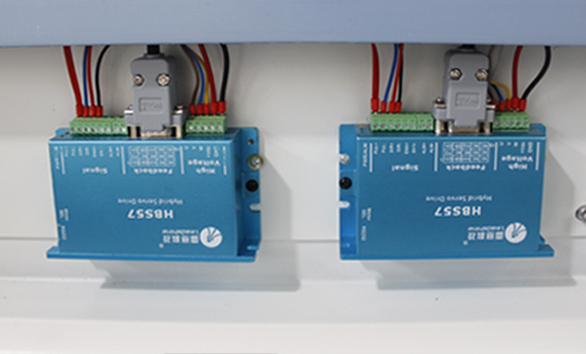

MOTOR-DRIVER

Self adaptive circuit

Necessary accessories of off-line working

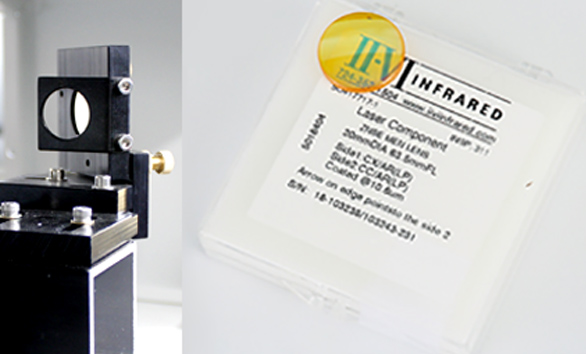

USA II-VI LENS

Imported USA II-VI Lens, suitable for various environments, and has high precision and high speed .

LASER TUBE
LASER TUBE

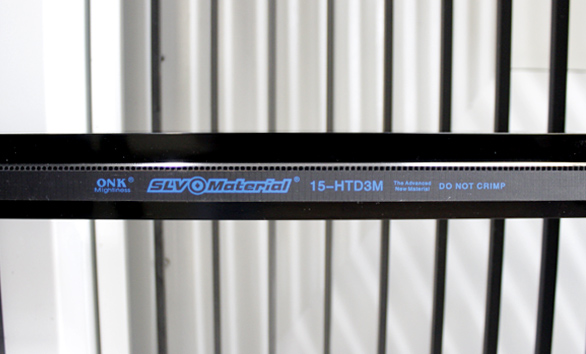

FAMOUS BRANID BELT

The brand belt, wear resistance, good stability, compact structure and low noise

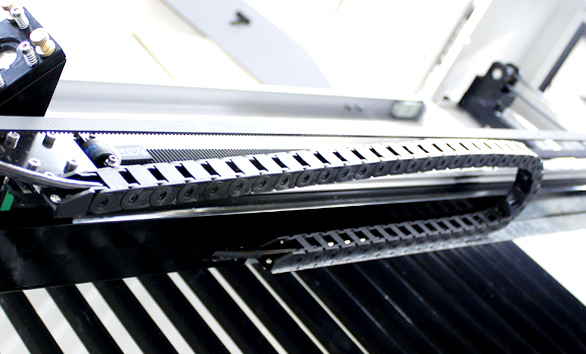

LEADING CHAIN

The current lead and breather pipe are included in it. Thicker, more stable Keep the laser head from shaking

LASER TUBE

MAIN BOARD

Multi-language in LCD panel .Ruida . The interface of the control panel is simple, easy to learn, easy to operate and the system is stable.

1.Adopt advanced laser engraving and cutting control system : Ruida RDC6442control system, the control pannal support different language include Chinese, English, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese,Korean, Italian.

2.Standard Rdworksv8 software : It support 15 different languages, include Chinese, English, Japanese, French, German, Portuguese, Polish, Spanish Russian, Korean, Vietnamese, Indonesian, Italian, Turkrish, Arabic.
It can compatible With many other software, like Coreldraw, Photoshop AUTOCAD, TAIIMA, etc.
You can use these software to make designs, then import to Rdworks tocut or engrave

3. Rdworks software support files in different format : Al, DXF, PLT, DST, BMP, DSB, EPS, DAT, NC, RDB, GIF, PG, PEG, PE, FIF, PNG, MNG, CO, CUR, TIF, TIFF, T GA, PCX, WBMP, WMF, EMF, BG, 2C, JPC, PGX, RAS, PNM, PGM, PPM, SKA, RAW

4.Storage : The main board has EMS Memory which enables the user to storemore than 100 files.

5. Laser output control : Can regulate the laser power from 1-100% according to different material.

6. Interface : USB 2 . 0 interface support connect to computer by USB cable, it also support offline work.

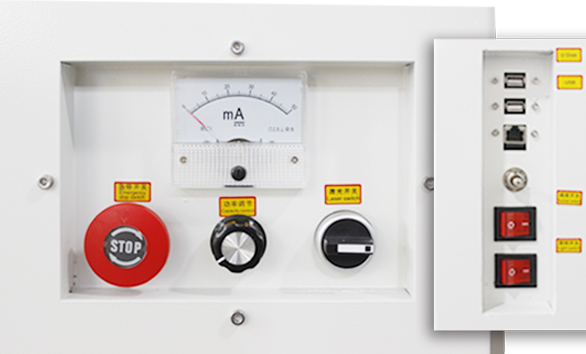

SWITCH

Key switch, emergency stop, LED light

LASER TUBE
LASER TUBE

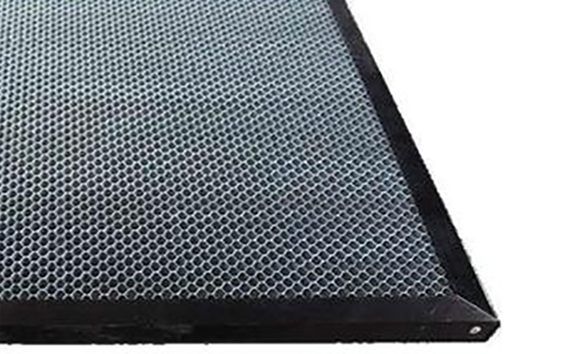

HONEYCOMB WORKTABLE

1. Small holes make sure good supporting performance which is suitable for leather cloth and other thin soft materials.

2. The hole of honeycomb worktable is small , so the small work piece can be placed on the table surface to be processed.

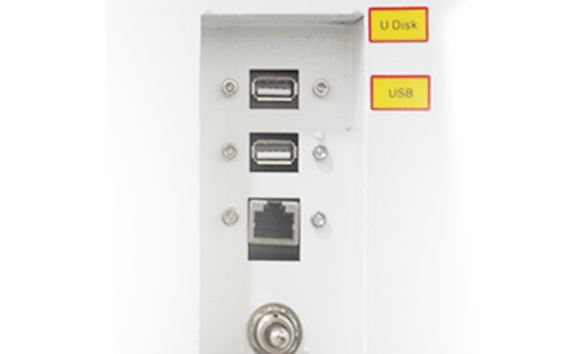

USB interface

USB interface & USB cable. Two kinds of transmission fies.

LASER TUBE
13

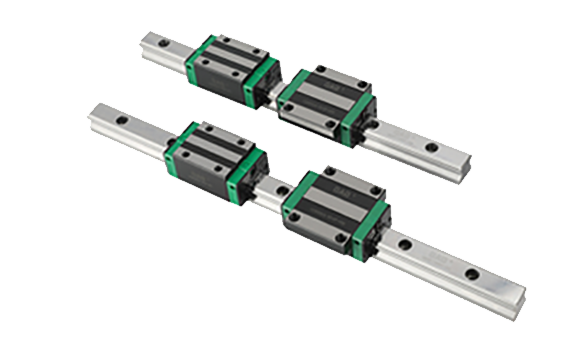

Imported linear guide

X Y axis apply imported square rails .Ensures stable operation , high precision and long life.

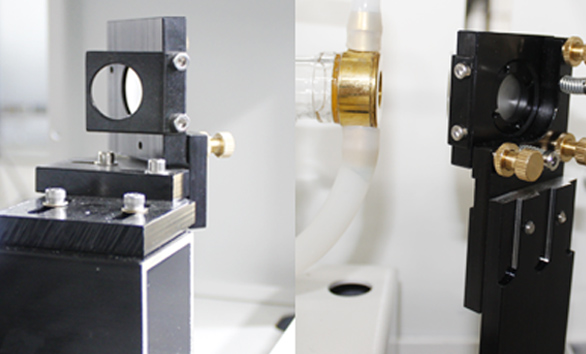

Reflector

45 mirror adjustment set.Three-point dimming bolt for easier dimming .

LASER TUBE
LASER TUBE

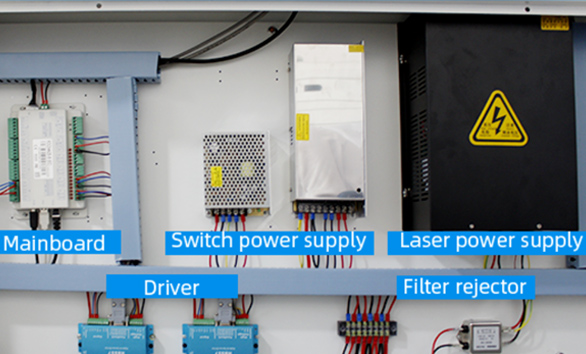

Distribution cabinet

Machine detail. Take every detail seriously to ensure that the machine is stable working during service to every customer.

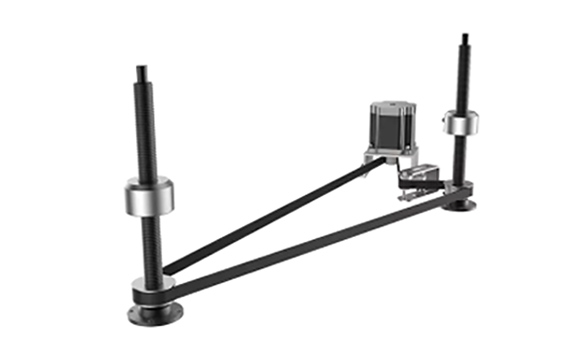

Platform lifting

It allows you to process materials of various sizes can be lifted in Z direction ( up-and-down ) to get more working space

LASER TUBE

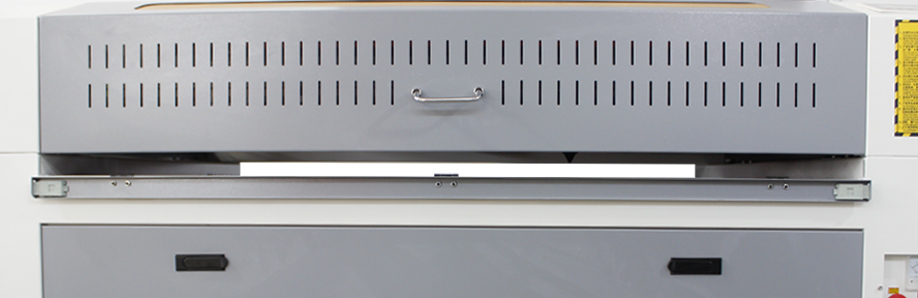

Front and back Feeding Doors

Front and back feeding material system, you can cut and engrave the material at the largest scale.

666

Coreldraw and CAD control directly

Advanced working software which can be embedded into Coredraw and CAD User can operate the machine buy Coredraw or CAD software directly.

LASER TUBE
13

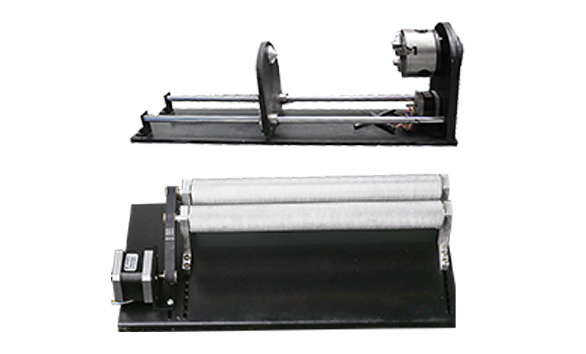

Rotary fixture

Rotary fixture Can engrave degree , usually applied in advertisement and craft work , for colum or cone work piecsurface ( need work together with motorized Up and Down System )Rotary fixture is for the circle engraving of cylindrical or column work pieces Need working together with Motorized Up and Down System.

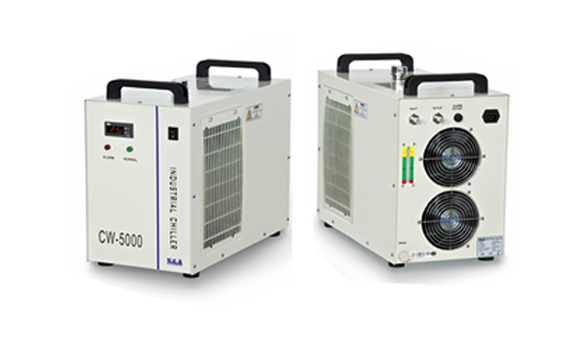

Water chiller

Best in china, it is for cooling the laser tube after water fill in the pipe when machine is Working.

LASER TUBE
13

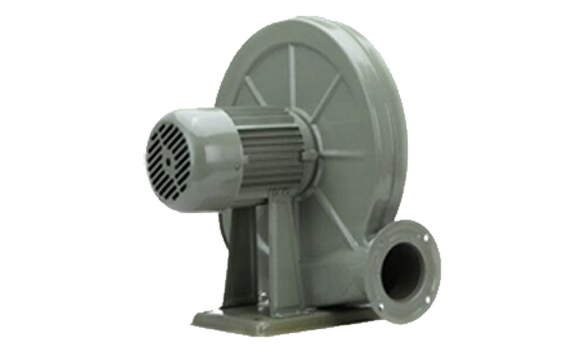

Exhaust fan

Removes smoke and dust caused during engraving and cutting.

Specification

Technical Parameters
Technical Parameters
Model FST-1390
Worktable honeycomb or blade
Eneraving area 1300*900mm
Laser Power 60w/80w/ 100w/ 150w / 300w
Engraving Speed 60000mm/min
Engraving Depth 5mm
Cutting Speed 0-5000mm/min
Cutting Depth (Acrylic) 0-30mm (acrylic)
Up and down work table Ec Up and down 550mm adjustable
Minimum Shaping Character 1 X 1mm
Resolution Ratio 0.0254mm (1000dpi)
Power Supply 220V(or110V)+/-10% 50Hz
Resetting Positioning Accuracy less than or equal to 0.01mm
Water protecting sensor and alarm Yes
Operating Temperature 0-45℃
Operating Humidity 35-70℃
Graphic Format Supported PLT/DXF/BMP/JPG/GIF/PGN/TIF
Operation System Windows 98/ME/2000/XP/VISTA/Windows 7/8
Software Ruda/AWC
Engraving on Curve Surfaces(Yes/No) No
Control Configuration DSP
Water Cooling(Yes/No) Yes
Maximum Height Of Materials To Engrave(mm) 120mm
Laser Tube Sealed CO2 glass laser tube
Machine Dimension 1840x1400x1030(mm)
Packing Dimension 2040×1600×1320mm
Gross Weight 410kg
