Foster 1080 100w co2 cnc laser machine laser engraving cutting machine price laser cutting machine for factory sale

Short Description:

Advantages of FST- 1080 laser cutting machine

Foster laser Co2 Laser Engraving Cutting machine with different working area, laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials. 1080laser cutting machine are widely used in clothing, shoes, luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing paper products, handicrafts. Household appliances, laser processing and other industries

CO2 LASER POWER

This laser engraving and cutting machine comes with a Co2aser tube to cut through various materials and engrave you designs faster, deeper, and clearer

RUIDA LCD DIGITAL CONTROLLER

The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDworks v8

USB ÐERNET Ports

2 USB ports allow flash drive connectivity and a∪SB-to-∪SBPC connection the ethernet connection is compatible With Pcs

VIEWING WINDOW

A transparent acrylic glass viewing window allows observation throughout the laser engraving process

ADJUSTABLE LASER NOZZLE

The laser nozzle can extend downwards or be fully retracted allowing more control over different focal distance setups

WATER FLOW SENSORA

pressure flow sensor monitors water flow throughout the laser engraving process and prevents the laser from firing if water stops circulating through the laser tube AUTOMATIC SHUTDOWN

The auto-shutdown safety feature stops the machine when opening the transparent window cover. Once closed, press the “Enter”button to continue operation. (Optional)


Product Detail

Product Tags

FIELD-LENS7213

TWO-part split machine

Save space, save freight, through the narrow door

Ruida Controller system

Offline use, Easy to operate

FIELD-LENS7213
FIELD-LENS7213

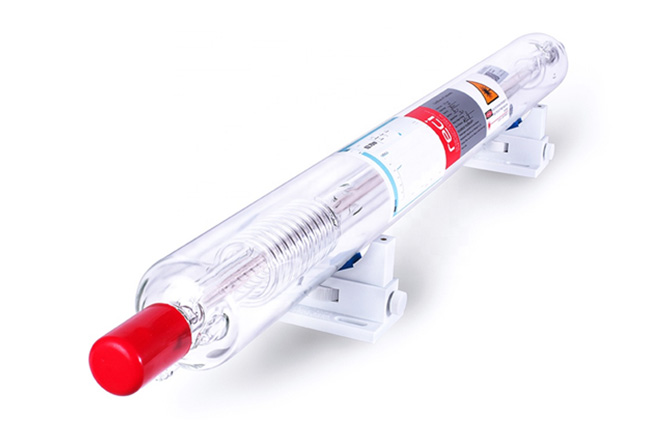

Famous laser tube

EFR, RECI, CDWG, YONGLI, JOY (optional)

High cost performance

The same price, the best performance and quality

FIELD-LENS7213
FIELD-LENS7213

Three lines linear guide

High accuracy, High speed

PASS THROUGH DOOR

Front and back feed

FIELD-LENS7213
FIELD-LENS72

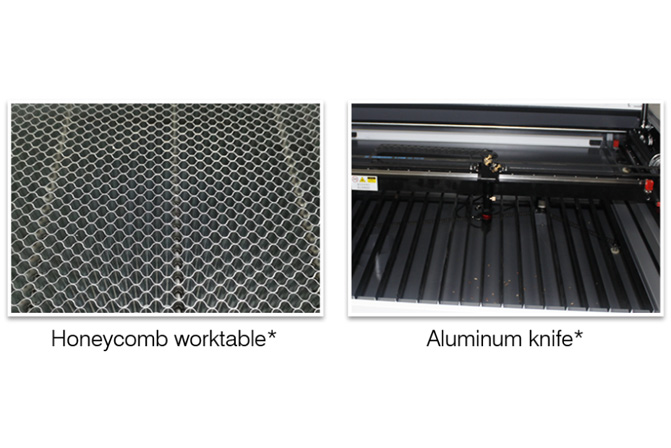

WORK AREA

1000x800mm, you can choose Honeycomb worktable Aluminum knife one or two. It depends on the needs of the customer.

INDUSTRIAL LASER HEAD

High precision retractable laser head easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce material loss. Auto-blowing to protect laser head and prevent the laser burning

FIELD-LENS72
FIELD-LENS72

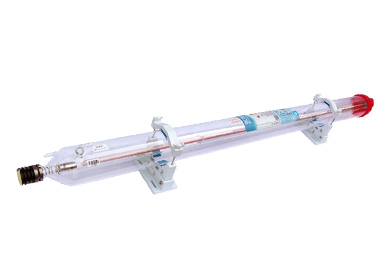

LASER TUBE

Closed Co2 laser tube , long life stable power Installation of reinforcement settings, the lase tube is not easy to collide and cause damage when moving the machine ( EFR , RECI, CDWJYONGLI, JOY. Optional

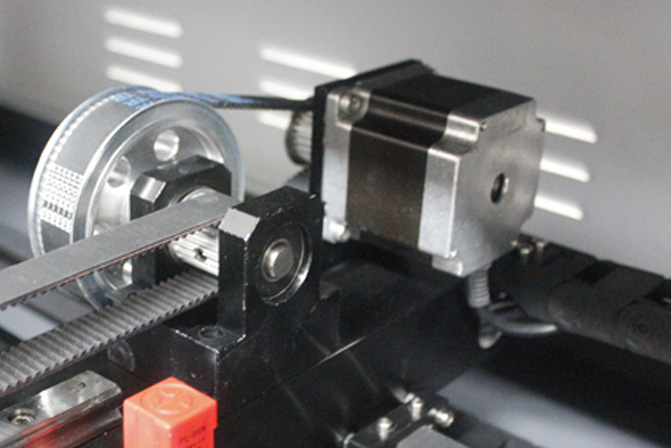

BRAND STEPPER MOTOR

High operating accuracy, high temperature resistance, can bear the high temperature generated  by high-speed operation, and low noise.

FIELD-LENS72
FIELD-LENS72

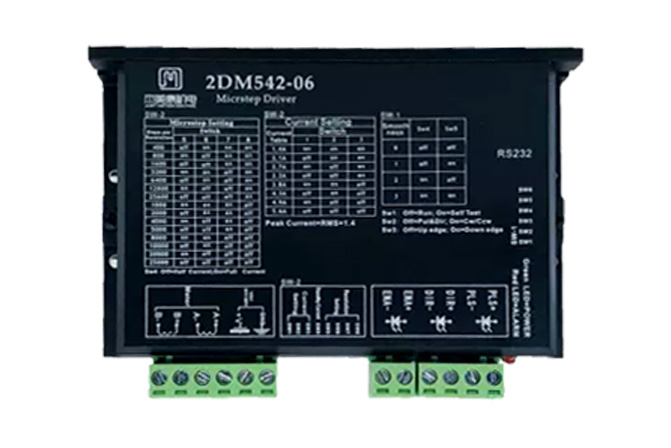

MOTOR-DRIVER

Self adaptive circuit
Necessary accessories of off-line working

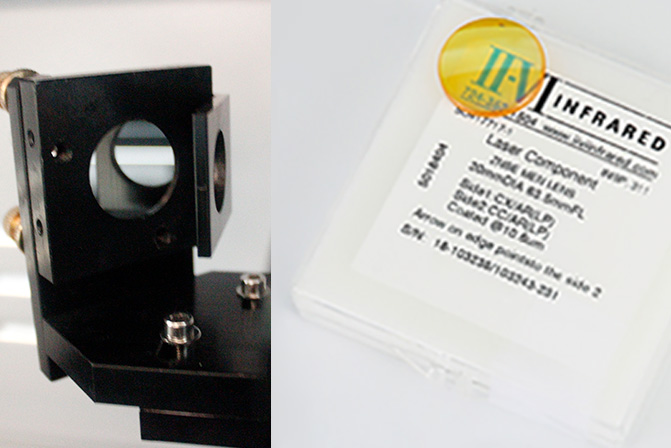

USA II-VI LENS

Imported USA II-VI Lens, suitable for various environments, and has high precision and high speed.

FIELD-LENS72
FIELD-LENS72

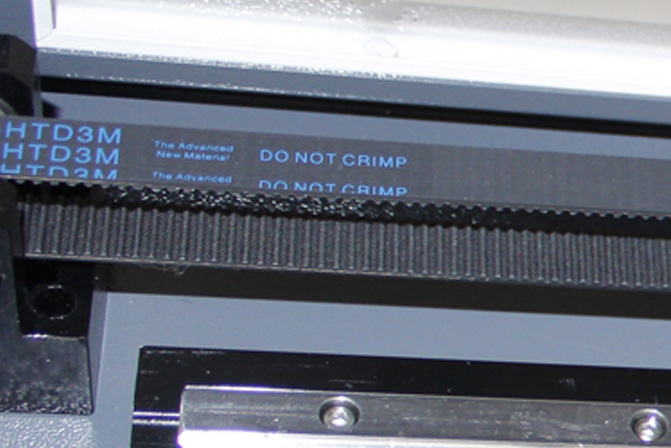

FAMOUS BRANID BELT

The brand belt, wear resistance, good stability, compact structure and low noise

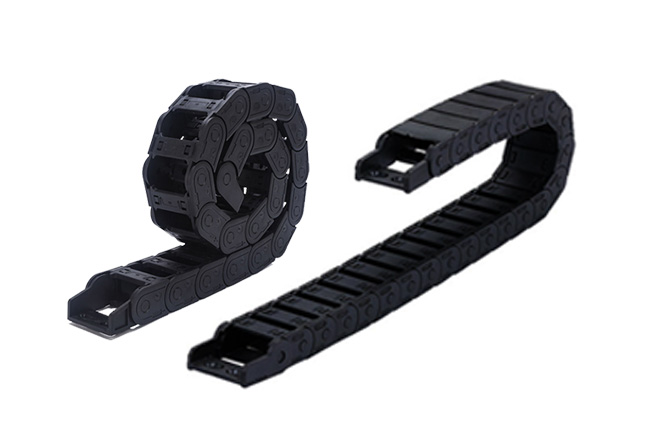

LEADING CHAIN

The current lead and breather pipe are included in it .Thicker , more stable Keep the laser head from shaking

FIELD-LENS72

CONTROL PANEL

1. Adopt advanced laser engraving and cutting control system: Ruida RDC6442control system, the control pannal support different language include Chinese ,English, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese,Korean, Italian.

2. Standard Rdworksv8 software: It support 15 different languages, include Chinese ,English, Japanese, French, German, Portuguese, Polish, Spanish Russian, Korean, Vietnamese, Indonesian, Italian, Turkrish, Arabic
It can compatible With many other software, like Coreldraw, Photoshop AUTOCAD, TAIIMA, etc.
You can use these software to make designs, then import to Rdworks tocut or engrave

3. Rdworks software support files in different format: Al, DXF, PLT, DST, BMP ,DSB, EPS, DAT, NC, RDB, GIF, PG, PEG, PE, FIF, PNG, MNG, CO, CUR, TIF, TIFF, T GA , PCX, WBMP, WMF, EMF, BG, 2C, JPC, PGX, RAS, PNM, PGM, PPM, SKA, RAW

4. Storage: The main board has EMS Memory which enables the user to storemore than 100 files.

5. Laser output control: Can regulate the laser power from 1-100% according to different material

6. Interface: USB 2 . 0 interface support connect to computer by USB cable, it also support offline work

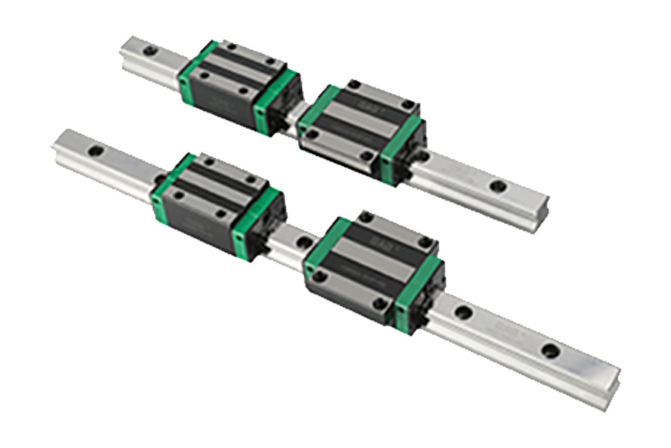

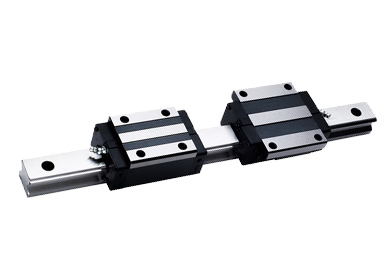

LINEAR GUIDE

XY axis apply imported square rails Ensures stable operation , high precision and long life

FIELD-LENS72
FIELD-LENS72

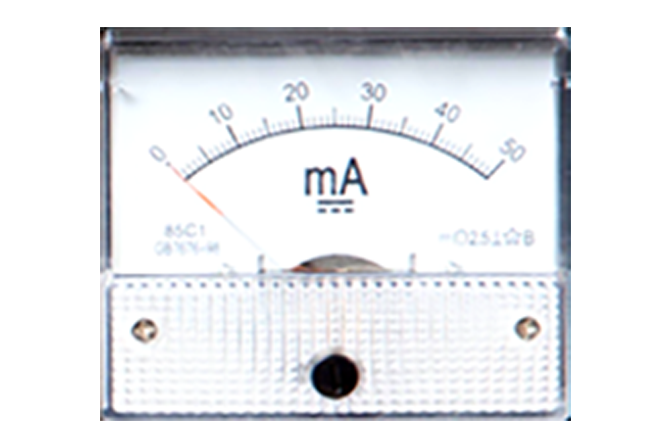

AMPEREMETER

The ammeter can detect whether the laser tube current is normal . ( Optional )

SOFTWARE

COREL DRAW Auto CAD Light burn supported

FIELD-LENS72
FIELD-LENS72

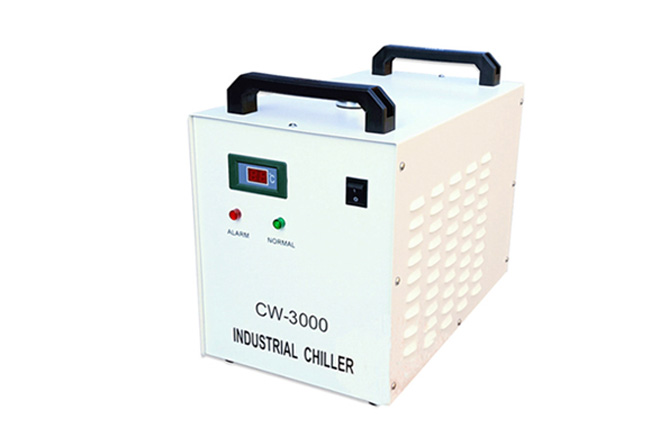

WATER CHILLER

Best in china . it is for cooling the laser tube after water fill in the pipe when machine is working

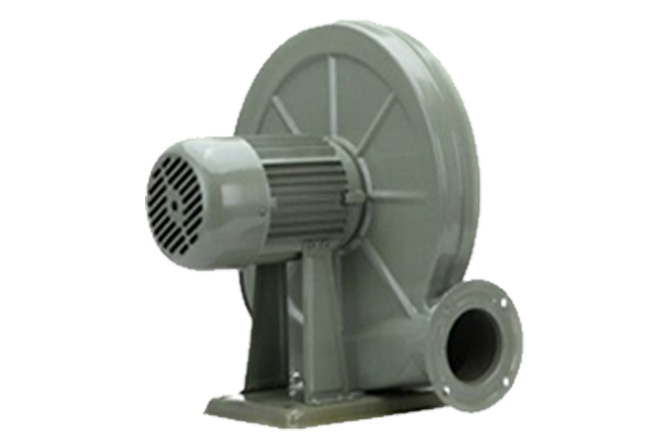

EXHAUST FAN

Removes smoke and dust caused during engraving and cutting

FIELD-LENS72
FIELD-LENS72

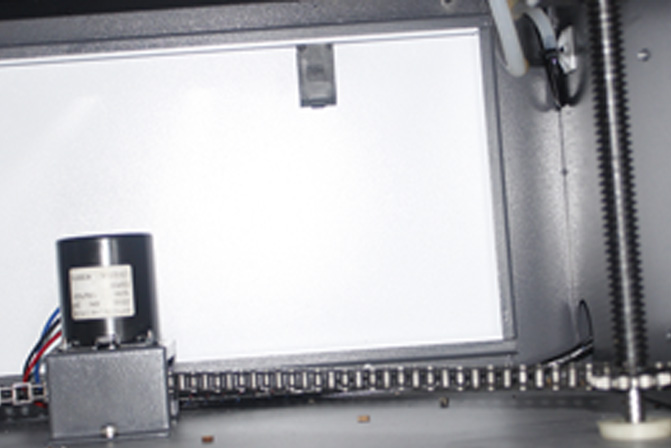

PLATFORM LIFTING

It allows you to process materials of various sizes, can be lifted in Z direction ( up-and- down) to get more working space. ( Optional )

Product Video

Specification

Technical Parameters
Technical Parameters
Model FST-1080
Worktable Honeycomb / Aluminum knife
Eneraving area 1000*800mm
Laser Power 60W/80W/100W/130W/150W
Engraving Speed 500mm/s Max
Engraving Depth 5mm
Cutting Speed 60mm/s
Cutting Depth (Acrylic) 0-15mm (acrylic)
Up and down work table Ec Up and down 300mm adjustable
Minimum Shaping Character 1 X 1mm
Resolution Ratio 0.0254mm (1000dpi)
Power Supply 220V(or110V)+/-10% 50Hz
Resetting Positioning Accuracy less than or equal to 0.01mm
Water protecting sensor and alarm Yes
Operating Temperature 0-45℃
Operating Humidity 35-70℃
Graphic Format Supported PLT/DXF/BMP/JPG/GIF/PGN/TIF
Operation System windows xp, win7, win10
Software RDworksV8
Control Configuration DSP
Water Cooling(Yes/No) Yes
Laser Tube Sealed CO2 glass laser tube
