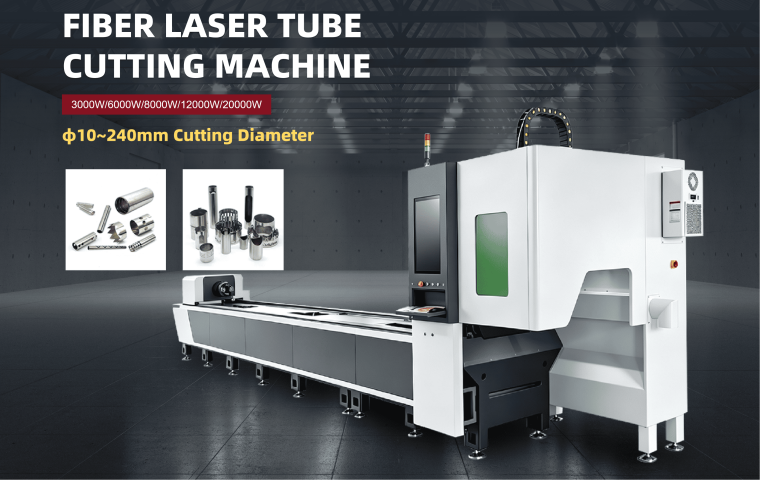

Many metal fabricators struggle with traditional tube cutting methods. Sawing, plasma cutting bring heavy burrs, plenty of post‑processing work, high material loss and low output. If you process heavy‑weight long tubes with diameters up to 240 mm, the FST‑6024 fiber laser tube cutting machine is one reliable option for your production line.
Main Technical Parameters of FST‑6024
- Processing diameter: φ10‑240 mm; working length: 6000 mm
- Single tube max load: 300 KG
- Optional laser power: 3000W‑20000W
- Repeat rotation accuracy: ±0.1 mm; positioning accuracy: ±0.1 mm/m
- Power supply: 380V, 3‑Phase, 50Hz
It can cut carbon steel, stainless steel, aluminum, brass, copper and galvanized metal. Supported profiles include round tube, square tube, rectangular tube, angle steel and channel steel. Widely used in steel structure, automotive, agricultural machinery, fitness equipment, rail transport and ship‑building industries.
Why this machine ensures stable mass production
The whole machine bed adopts thickened high‑strength steel plate integrated welding, with high‑temperature stress‑relief treatment. It effectively reduces vibration and deformation during high‑speed continuous cutting.
Core spare parts adopt well‑known international brands:
- Laser source: Raycus / MAX / IPG
- Auto‑focus cutting head: BOCI / Raytools
- Linear guide: HIWIN; Rack & pinion: Taiwan YYC
- Servo & driver: Yaskawa, Fuji, Delta
- Reducer: Japan Shimpo
- Full‑stroke pneumatic self‑centering chucks, no frequent manual jaw adjustment.
The follow‑up support device holds long pipes tightly during cutting, avoiding sagging, shaking and deformation. Buffered unloading platform plus mobile unloading trolley protect finished workpieces from scratches.
Software & Upgrade Options
Equipped with TubePro tube cutting control software and TubesT 3D nesting software. Operators can import IGS files, run intelligent nesting, handle 7‑axis tube delivery and complex corner cutting technology.
Available optional upgrades:
✅ Intelligent tube contour recognition
✅ Bevel cutting / 3D cutting function
✅ Zero‑tail‑material cutting upgrade (original tail material: ~20 cm)
✅ Voltage stabilizer, air compressor
✅ Industrial air‑conditioner for electric cabinet, fume extraction system
Manufacturer Background & After‑sales Service
We are an ODM & OEM laser equipment manufacturer with more than 20‑year experience. Our factory owns over 30,000 ㎡ standardized workshop, 27 technical patents, monthly output above 300 sets. Products passed CE certification, exported to over 60 countries. Trademarks have been registered in more than 10 countries.
- 2‑year full machine warranty (free spare parts for non‑human‑caused damage)
- Operation manual & tutorial videos provided
- Online remote engineer training; on‑site training negotiable
- Lifetime technical support after warranty period
- Standard shipping by sea, complete anti‑rust & container packaging
FAQ
Q1: What information do I need to get an accurate quotation? A: Please tell us tube material, outer diameter, wall thickness and maximum single‑tube weight. We will recommend suitable laser power and configurations accordingly.
Q2: Can it cut special‑shaped profiles? A: Yes. It supports angle steel, channel steel, U‑shape, H‑shape and other irregular profiles.
Q3: What is the tail material length in standard configuration? A: About 20 cm. You can upgrade to three‑chuck structure for zero‑tail‑material cutting.
If you want to get full datasheet, cutting sample videos or price offer, please contact our sales team.
