6024 High Platform Fiber Laser Cutting Machine φ10~240mm Cutting Diameter 3000W 6000W

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

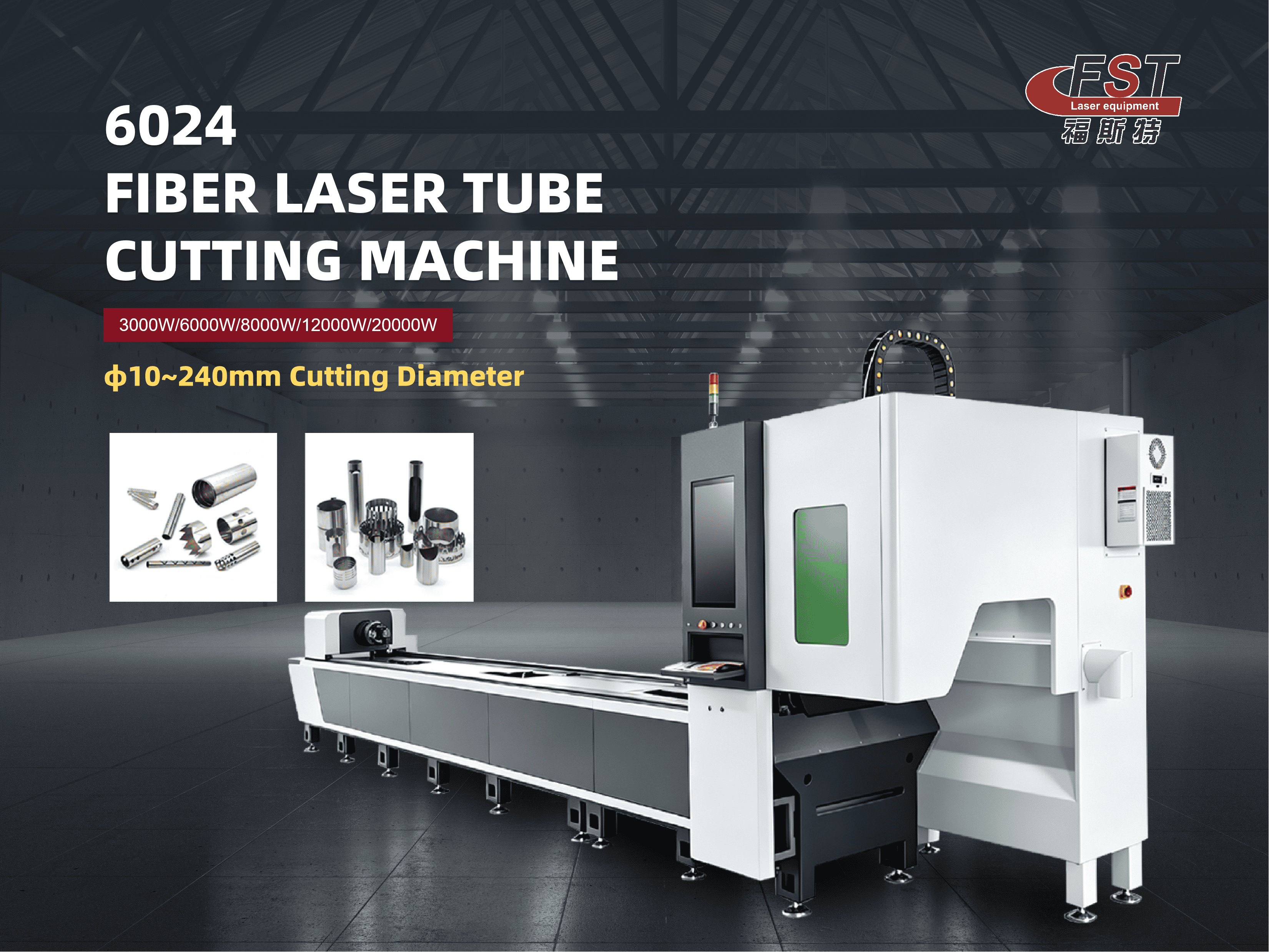

6024 High Platform laser cutting machine_01

6024 Fiber Laser Tube Cutting Machine

Selling Point

6024 Fiber Laser Tube Cutting Machine

6024 Fiber laser tube cutting machines are advanced equipment designed for the precise and efficient cutting of metal tubes and pipes. Equipped with an upgraded thickened and heightened machine bed, the equipment delivers greatly enhanced structural stability during operation. These machines utilize high-powered laser beams to achieve clean, accurate cuts with minimal material wastage. They are widely used in various industries such as automotive, aerospace, construction, and manufacturing due to their ability to handle complex cutting tasks with high precision.

Selling Point

High precision cutting:

The laser tube cutting machine ensures precise and clean cuts, reducing the need for post-processing. It can handle intricate designs and complex geometries with ease.

High stability and durability:

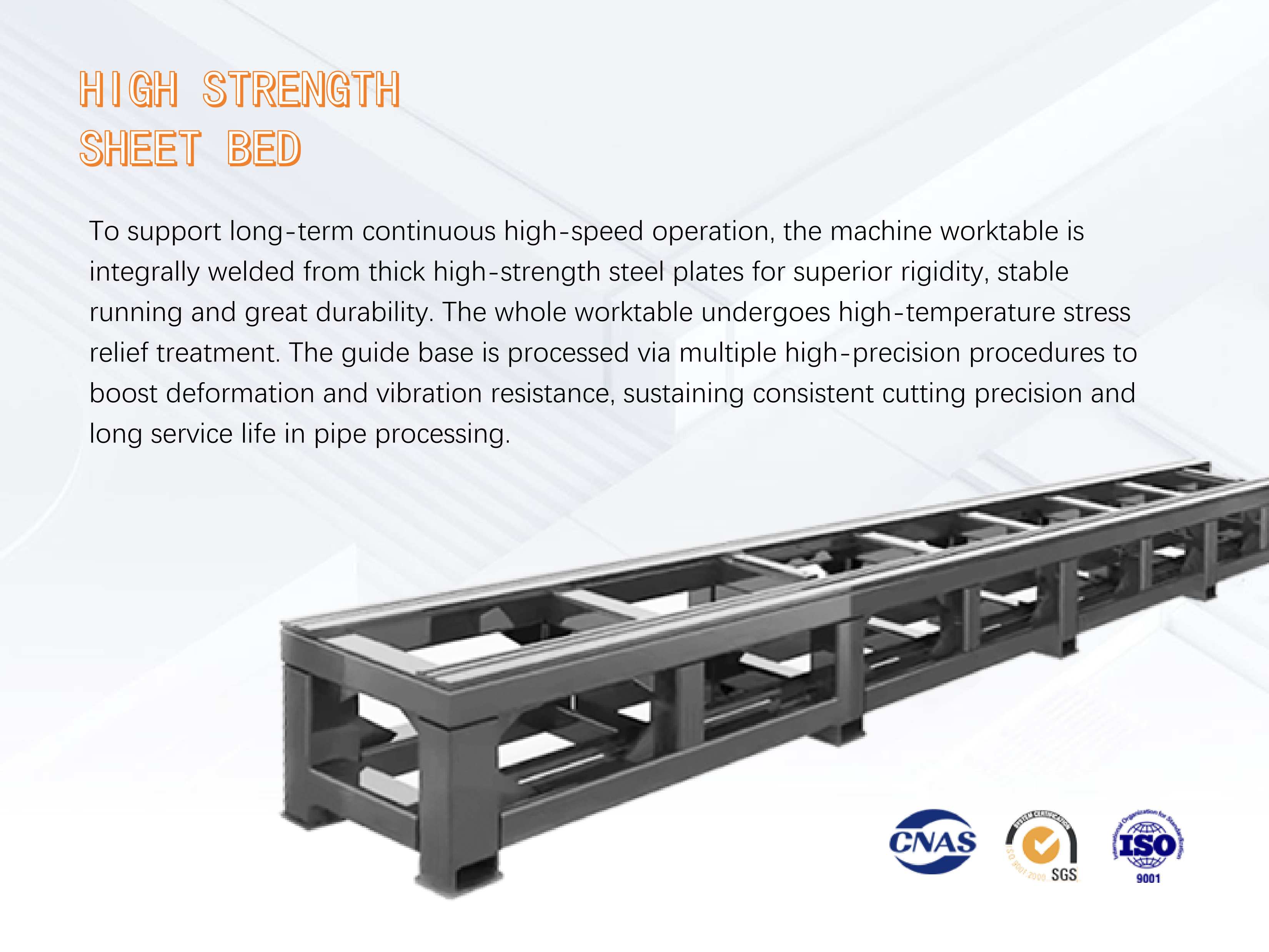

Upgraded thickened & heightened machine bed, ultra-rigid structure for stable high-speed cutting without vibration.The machine’s stability during operation ensures consistent cutting quality.

Multifunctionality:

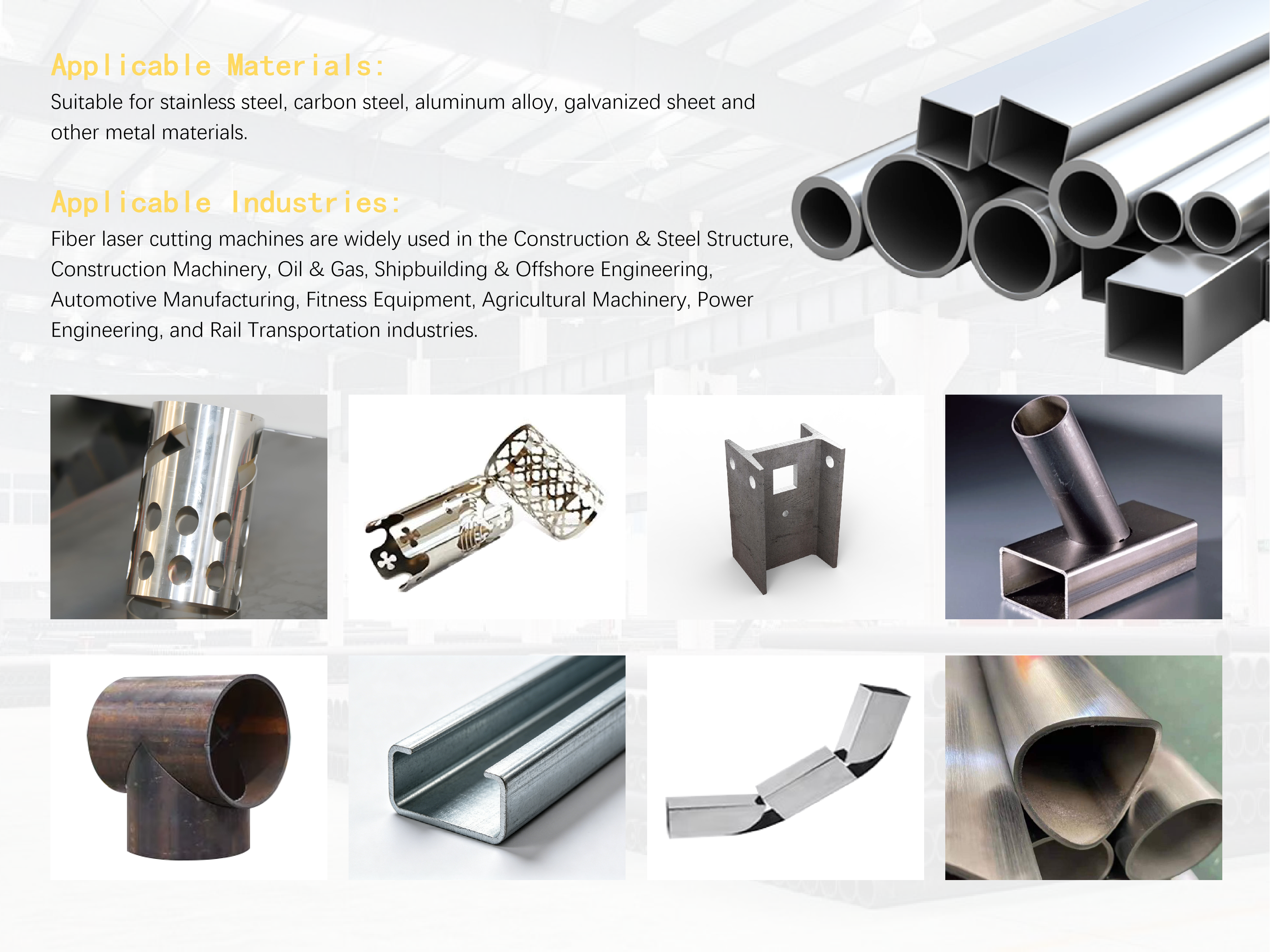

Capable of cutting a wide range of materials, including stainless steel, carbon steel, aluminum, brass, and copper.Suitable for cutting various shapes such as round, square, rectangular, and oval tubes.

Efficiency:

Equipped with advanced automation features, it significantly reduces production time and labor costs.The machine can cut tubes and pipes at high speeds without compromising on quality.

Environmental friendliness:

Produces less noise and emissions compared to traditional cutting methods, making it an environmentally friendly option.

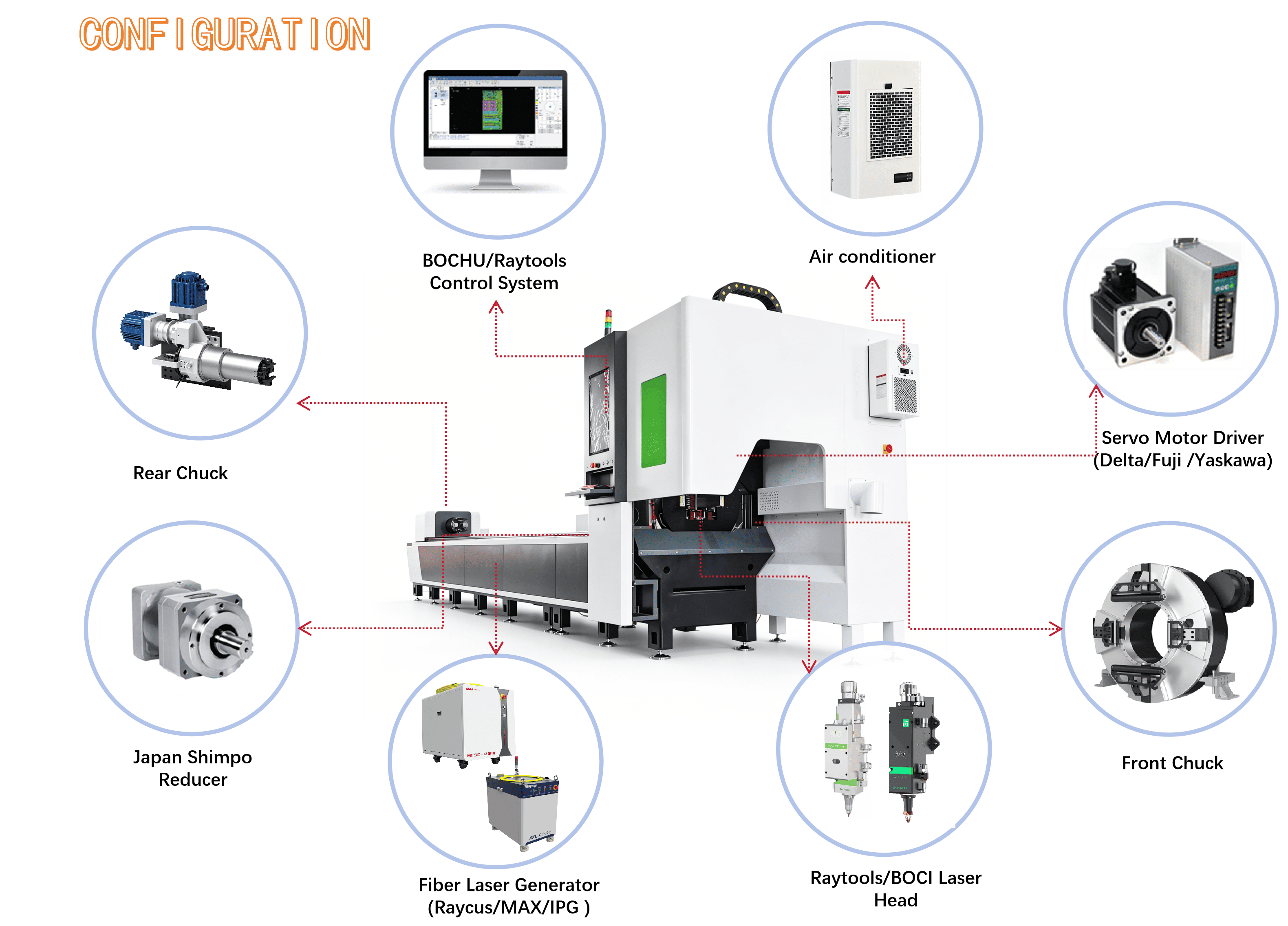

6024 High Platform laser cutting machine_02

PARAMETER

Working Area	6000mm* φ10~240mm
Cooling System	Water Cooling

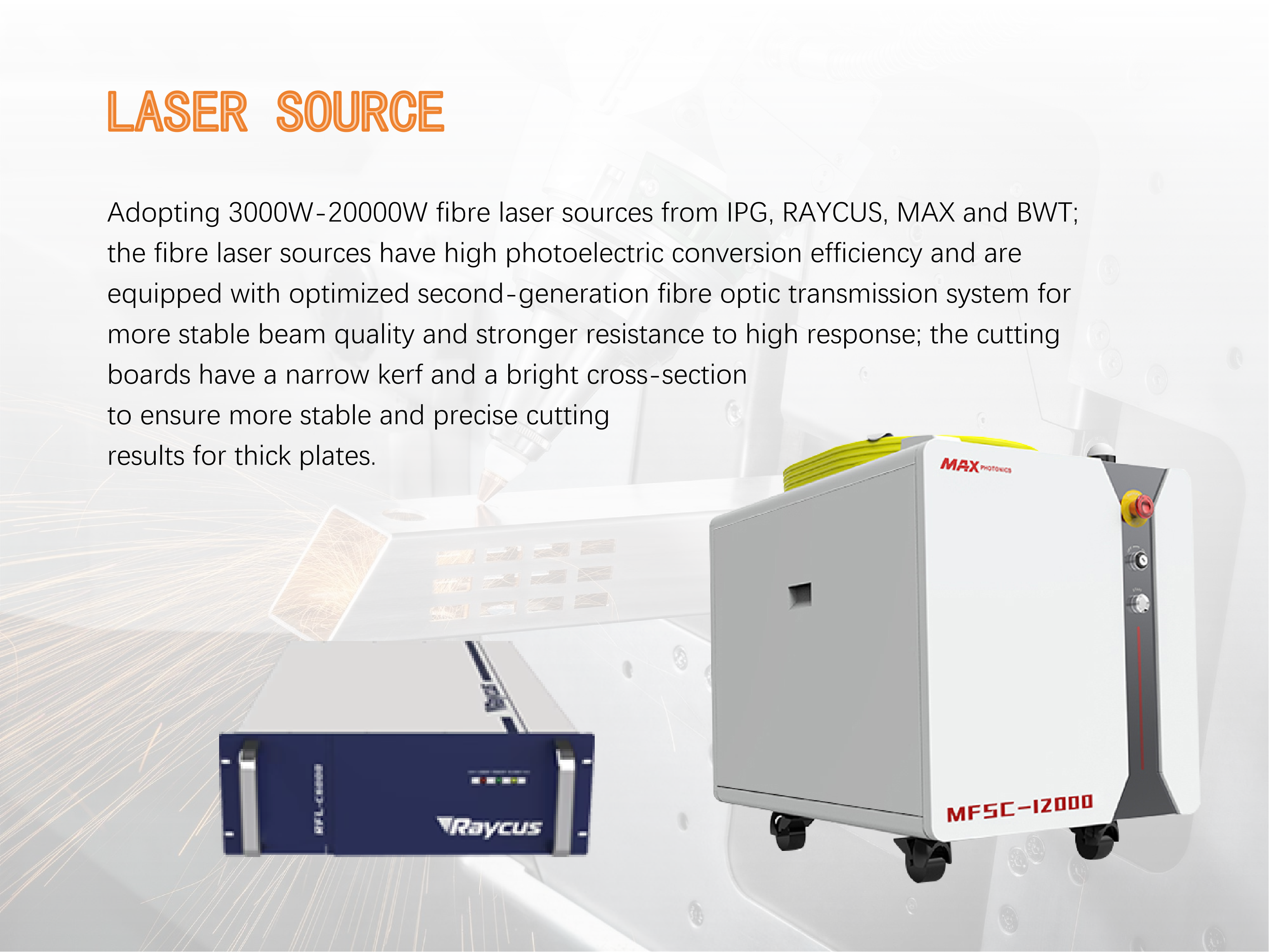

Laser Source	Raycus/MAX/IPG

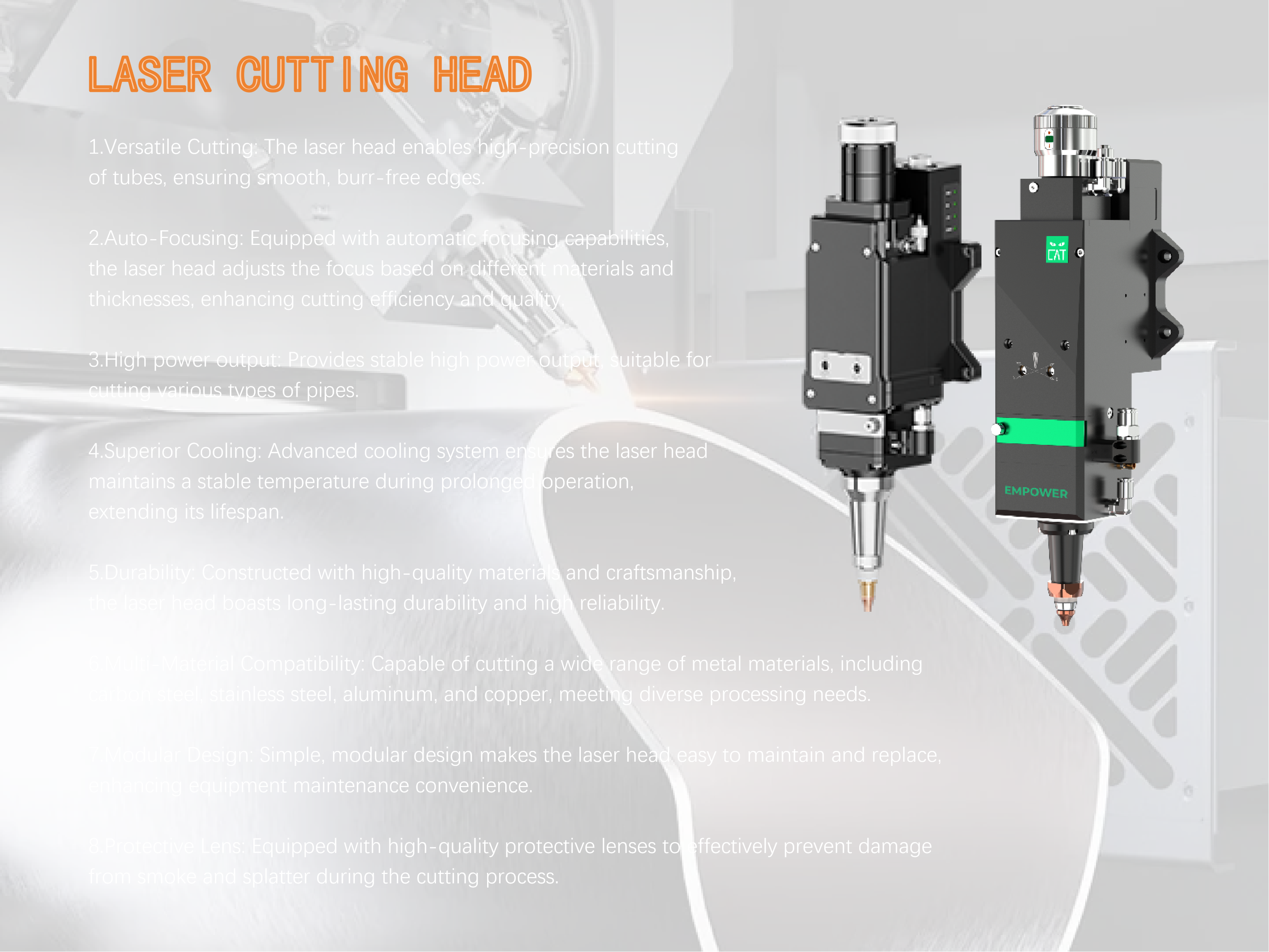

Cutting Head	BOCI/Raytools
Voltage	380V 3Ph, 50Hz
Linear Guide Rail	HIWIN Rails
Rack and Gear	Taiwan YYC Rack
Servo Motors and Drives	Fuji/Yaskawa/Delta
Single tube support weight	300KG
Laser Power	3000W/6000W/8000W/12000W/20000W
Chiller	HanLi/S&A
Maximum Speed Acceleration	1.5G
Repeat the rotation accuracy	±0.1mm
Positioning accuracy	±0.1mm/m
Max Speed of Chucks	100r/min
X/Y Position Accuracy	0.05m/min

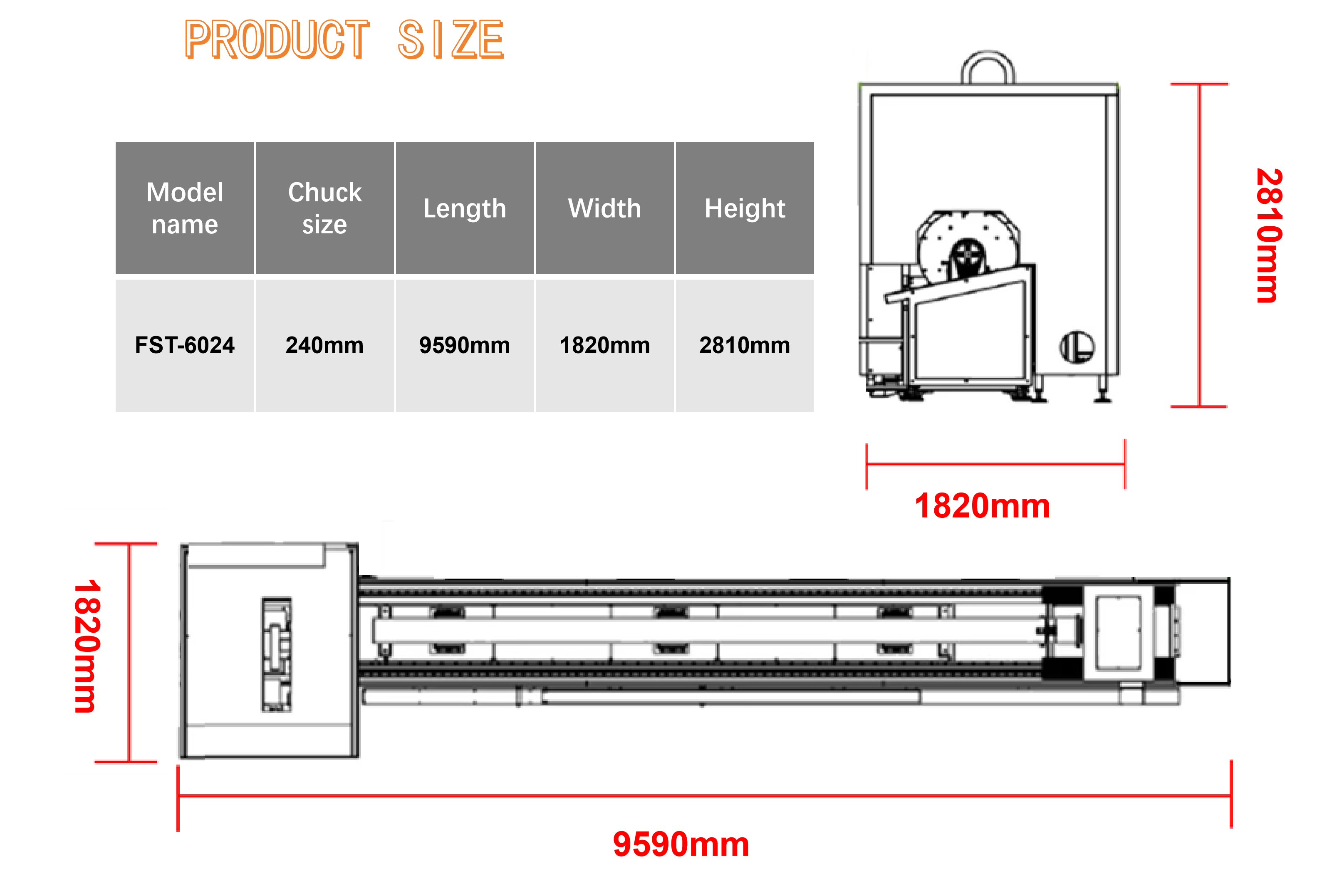

6024 High Platform laser cutting machine_03

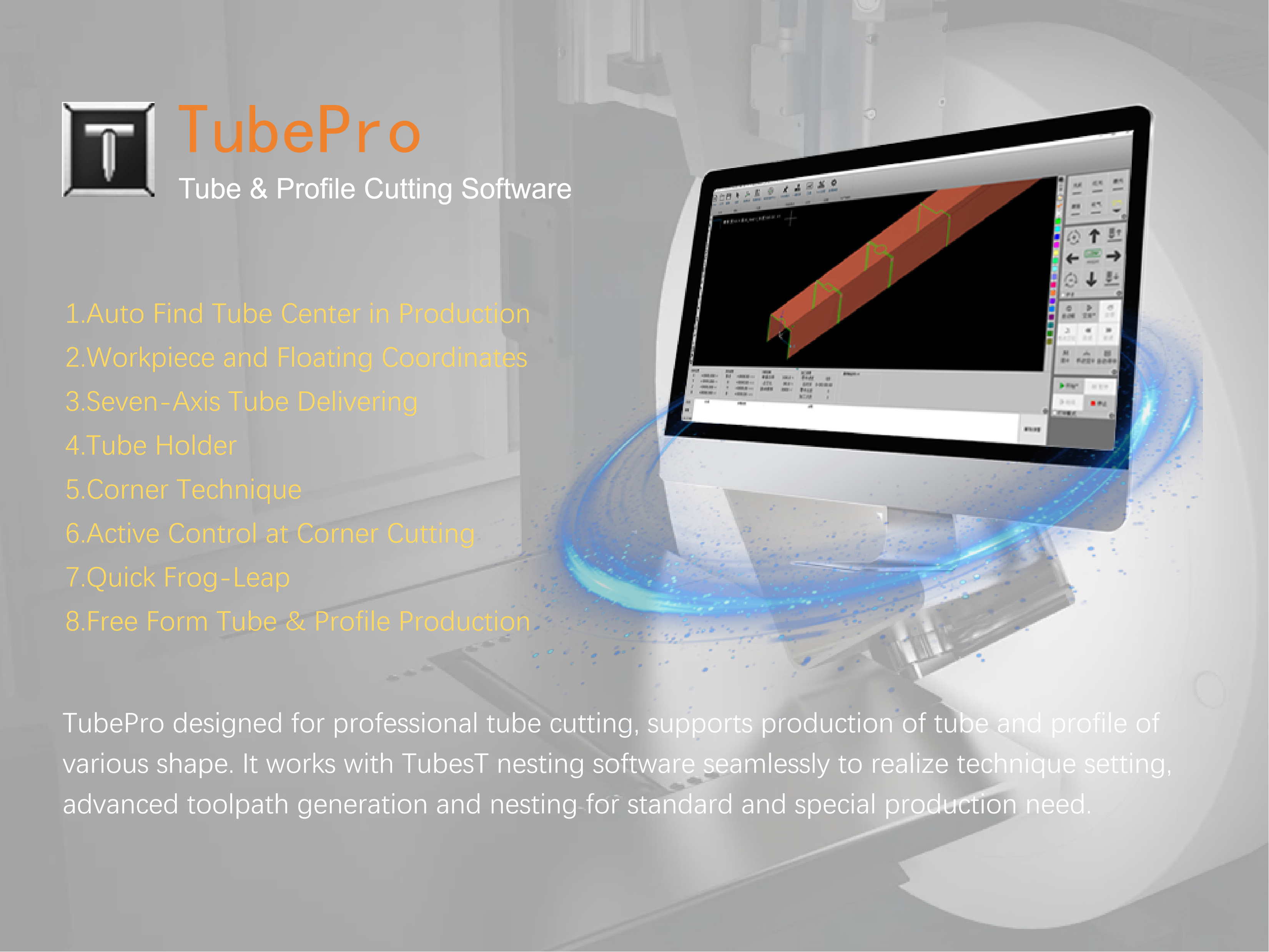

TubesT-Lite is a free software to generate toolpath for FSCUT tube cutting system. It's designed for CypTube/TubePro, can import part from external igs file, draw the part of standard shape and array-nest the part on the tube.

** Support profiles of U/T/H/L shapes and free form shapes toolpath generation

TubesT is a 3D tube nesting software designed for CypTube/TubePro laser cutting system. From parts drawing and modification, full type compensation, strategic nesting to report generation, using TubesT will meet and exceed your production needs.

Optional Voltage Stabilizer and Air Compressor

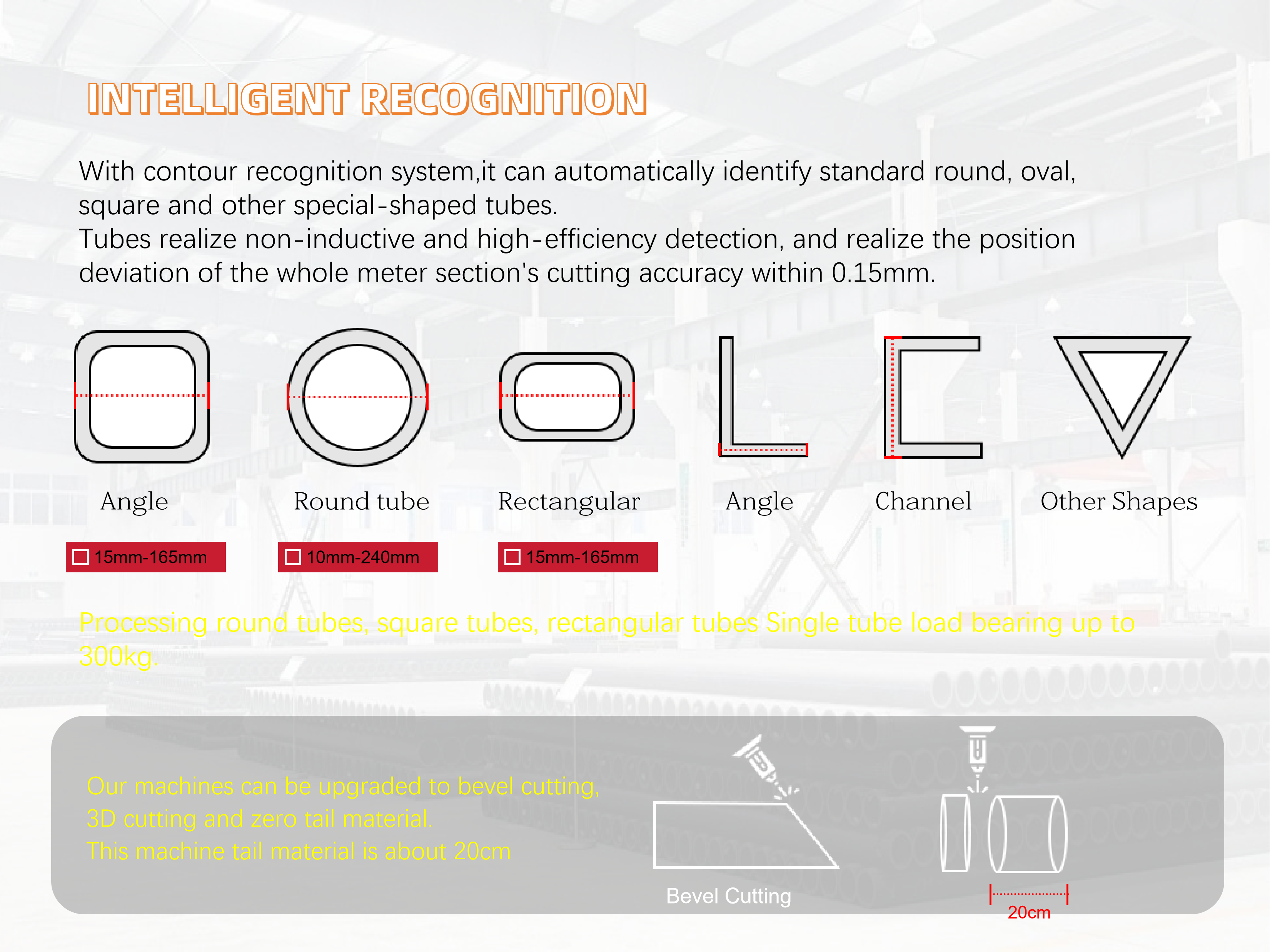

6024 High Platform laser cutting machine_11

6024 High Platform laser cutting machine_12

10 Years Professional OEM/ODM Laser Manufacturer

Liaocheng Foster Laser Science & Technology Co., Ltd.

Liaocheng Foster Laser is a laser equipment company with over 20 years of technical experience, integrating R&D, production, sales and after-sales service. We focus on the manufacturing of laser equipment such as fiber laser tube cutting machines, flat laser cutting machines and laser welding machines. With a modern production base, our products have passed CE and other international certifications, exported to more than 60 countries worldwide, and won high recognition from customers at home and abroad for stable quality.

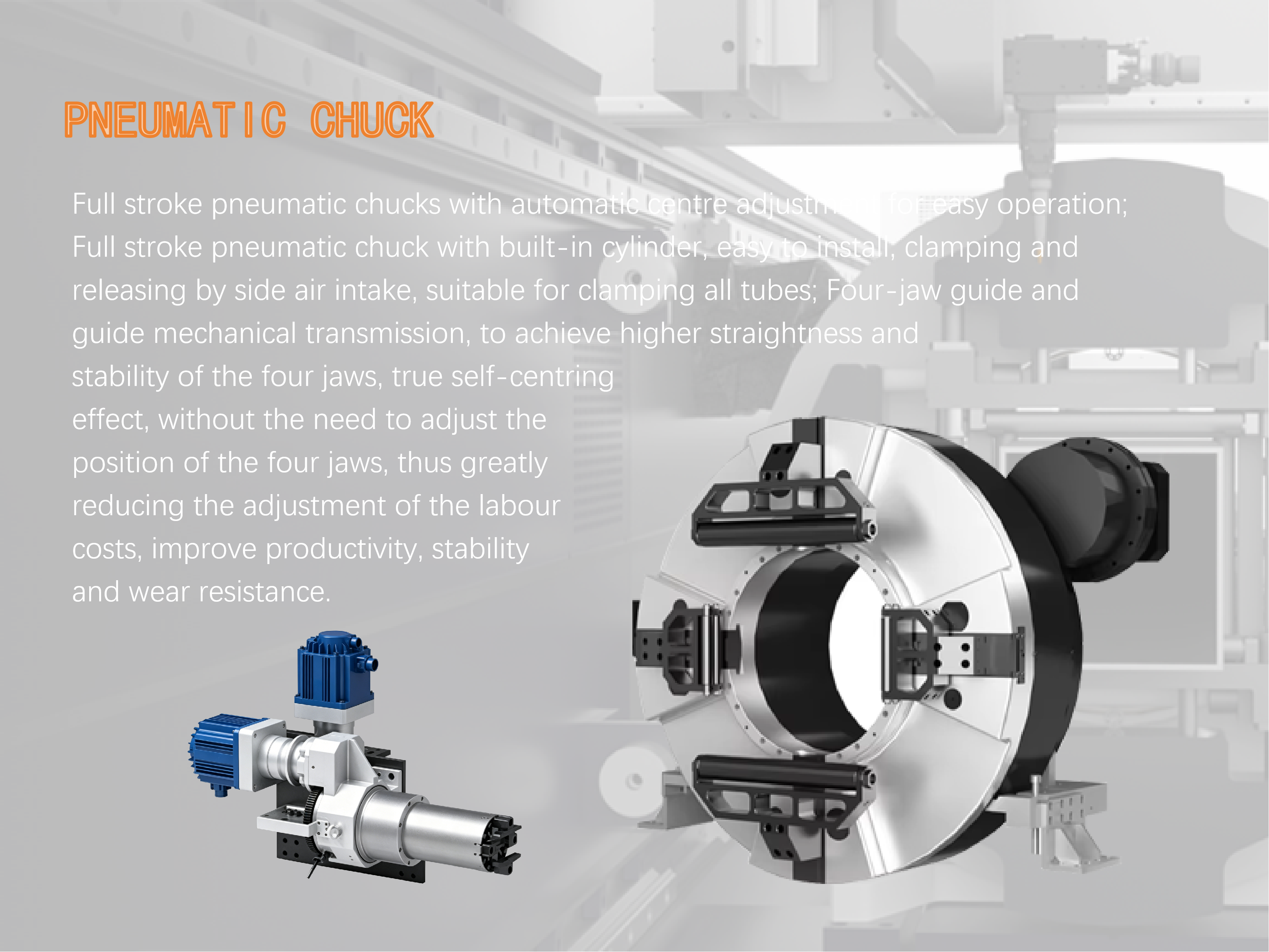

Our flagship three-chuck fiber laser tube cutting machine adopts a side-mounted triangular frame bed, featuring strong load-bearing capacity, high rigidity, stable operation and good shock resistance. Equipped with the latest pneumatic three-chuck, it supports independent clamping and opening, synchronous rotation and movement. Thanks to the unique chuck layout design, it truly achieves zero tail material cutting, greatly reducing raw material waste. Bevel cutting is optional, and no secondary processing is required for welding.

The equipment can be equipped with Raycus, Max, IPG laser sources with power ranging from 2000W to 12000W, matched with imported servo motors and precision transmission structures, ensuring high precision, fast speed and long-lasting stable performance.

It is equipped with a dedicated auto-focus cutting head and wireless handle control, supporting semi-automatic feeding and unloading, which is easy to operate. It can cut profiles such as round tubes, square tubes, angle steel and channel steel, and is suitable for materials such as carbon steel, stainless steel, aluminum alloy and galvanized sheet, widely used in automobile, shipbuilding and other industries. We always provide cost-effective laser tube processing solutions for global customers with high-quality equipment, professional technical support and comprehensive after-sales service.
