Mini destktop Laser marking machine

Short Description:

Advantages of portable optical fiber laser machine
You can take it anywhere .Because it’s so small It won’t take up any of your space and Is easy to carry around the office.

The column of the mini Laser marking machine can be rotated 360to facilitate multi-angle marking of objects that are not easy to move.
Integrates multiple core components such as fiber laser, high-speed galvanometer, power supply, and genuine EZCAD system . This mini laser marking machine is a small-volume, lightweight, fast-speed ,high-flexibility, cost-effective mini laser marking machine

(1)No Consumables, Long lifespan Maintenance Free
The Fiber laser source has super long lifespan of over 100,000 hours withoutany maintenance . No need to spare any extra consumer parts at all . Supposeyou will work for 8 hours per day, 5 days a week, A fiber laser could work properly for you for more than 8-10 years without extra costs except electricity .

(2)Multi-functional
It could Mark / Code / Engrave un-removable serials Numbers, batch Numbers ,Expiry info, Best Before date, logo any Characters that you want . It could also mark QR code .
(3)Small and Simple Operation, Easy to use
Our patent software supports almost all common formats, The operator does not have to understand programming, Just simply set a few parameters and click start
(4)High Speed Laser Marking .
The laser marking speed is very fast, 3-5 times than the traditional marking machine.
(5)Optional rotary axis for different cylindrical
Optional rotary axis can be used to mark on different cylindrical, spherical objects . The stepper motor is used for digital control, and the speed can be automatically controlled by computer, Which is more convenient, simple, safe and stable.
Fiber laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel Brass, Aluminium, Steel, Iron etc and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.


Product Detail

Product Tags

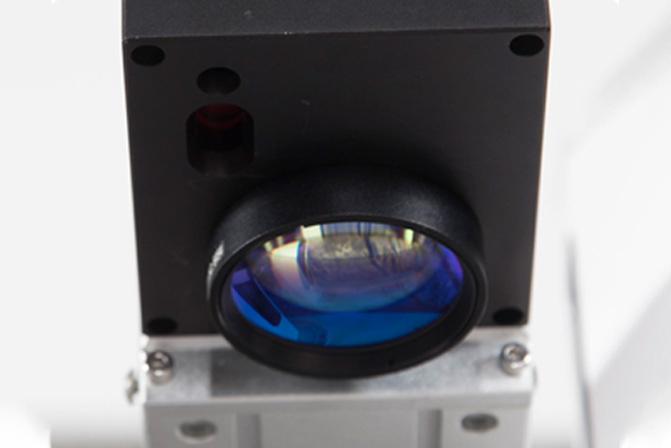

FIELD LENS

FIELD LENS

We use famous brand to provides precision laser Standard 110x110mm marking area. Optional 150x150mm.

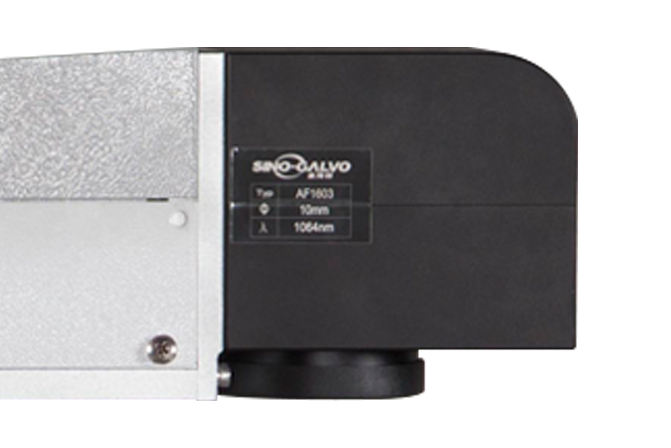

GALVO HEAD

Famous brand Sino-galvo, high speed galvanometer scan adopting SCANLAB technology, digital signal, high precision and Speed.

FIELD LENS
FIELD LENS

LASER SOURCE

We use Chinese famous brand Max laser source Optional: IPG / JPT / Raycus laser source.

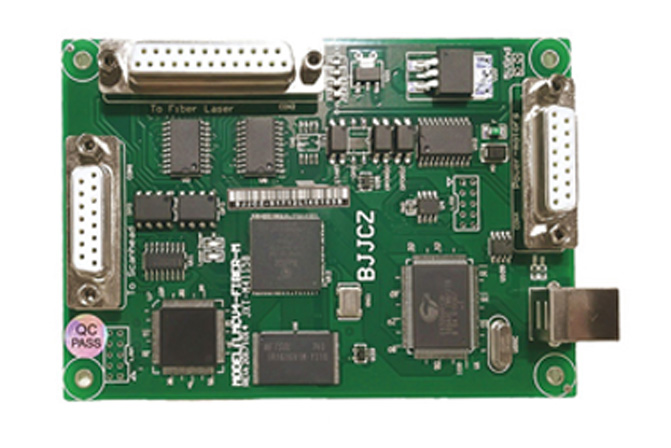

JCZ CONTROL BOARD

JCZ Ezcad genuine products, user-friendly interface , functional diversity, high stability, high precision Each board has its own number and refuses to be counterfeited.

FIELD LENS
FIELD LENS

THE CONTROL SOFTWARE

1. Powerful editing function.

2. Friendly interface.

3. Easy to use.

4. Support Microsoft Windows XP, VISTA, Win7, Win10 system.

5 . Support ai, dxf, dst, plt, bmp, jpg, gif, tga, png, tif and other file formats.

RED LIGHT PREVIEW

Adopt Red light preview to show the laser path since laser beam is invisible.

WORKING-PLATFORM
FIELD LENS

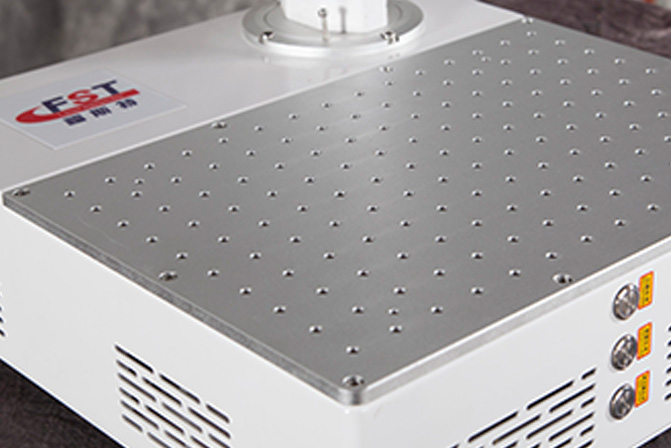

WORKING PLATFORM

Alumina working platform and imported precise beeline device. Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.

FOOT SWITCH

It can control the laser on and off make the operate more convenient.

FIELD LENS
FIELD LENS

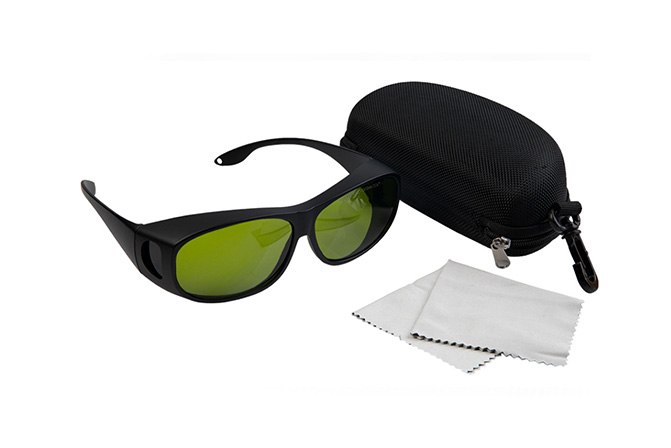

GOGGLES ( OPTIONAL )

Can protect eyes from laser Wave 1064nm, let the operate more safe.

Product Video

Specification

Technical Parameters
Technical Parameters
Model fiber laser marking machine
Working area 110*110/150*150(mm)
Laser power 10W/20W/30W
Laser wavelength 1060nm
Beam quality m²<1.5
Application metal and partial nonmetal
Marking Speed 7000mm/ standard
Repeated Precision ±0.003mm
Working voltage 220V or 110V /(+-10%)
Cooling Mode Air Cooling
Supported graphic formats AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Controlling software EZCAD
Working temperature 15°C-45°C
Optional parts Rotary Device, Lift platform, other customized Automation
Warranty  2 year
Package  Plywood
