Hand-held Fiber laser welding machine

Short Description:

Advantages of fiber laser welding machine

(1) Save 2-5 professional welders

(2) precision welding

(3) Thin plate welding

(4)  Fast welding speed

(5) Easy to learn ,no professional required

(6) Almost no deformation

(7) Welding of different metal materials

(8) No sanding required

(9) Welding for stainless steel, carbon steel ,galvanized sheet , aluminum , copper…

(10) Suitable for welding complex seams and various devices:Butt welding,Lap welding,Stitch welding,Nail welding,Crimping welding ,T-weld, stack Lap welding ,Splicing edge welding


Product Detail

Product Tags

FIELD-LENS72

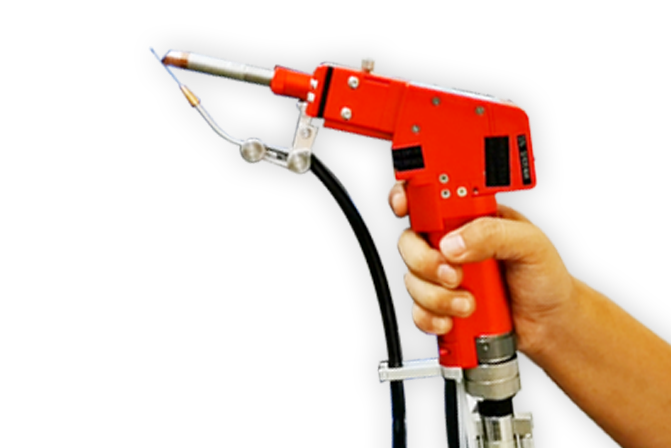

LASER WELDING GUN

Fast speed , good at thin plate Welding , precision welding.

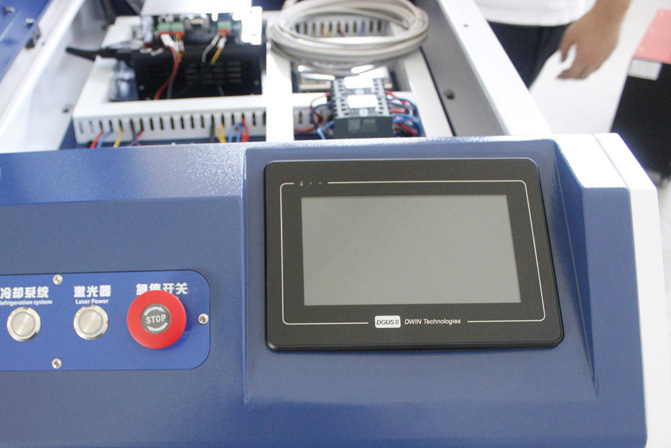

OPERATION PANEL

The operation is simple, you can set different Wobble Type and width, you can learn in almost 5 minutes.

FIELD-LENS72
FIELD-LENS72

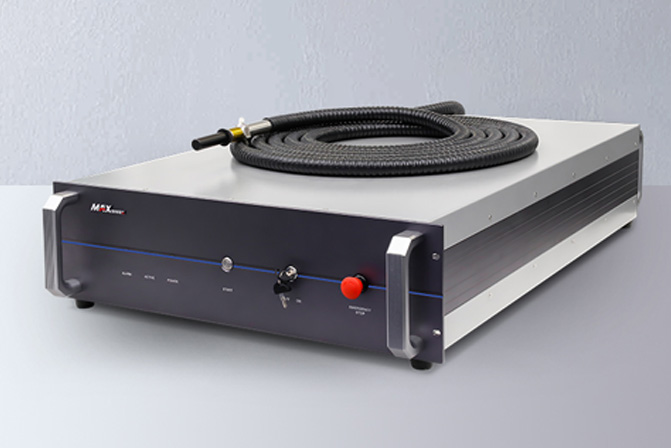

LASER SOURCE

Internationally renowned laser source( Max / Raycus / JPT ), stable laser power, long life, good welding effect, beautiful welding seam.

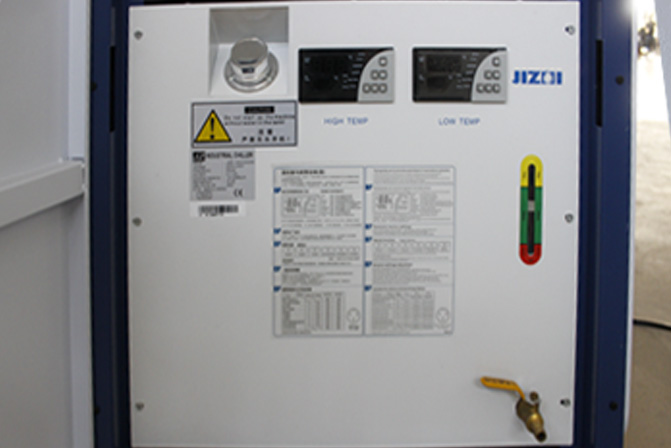

WATER CHILLER

When the machine is working, cool the laser source with water

FIELD-LENS72
FIELD-LENS72

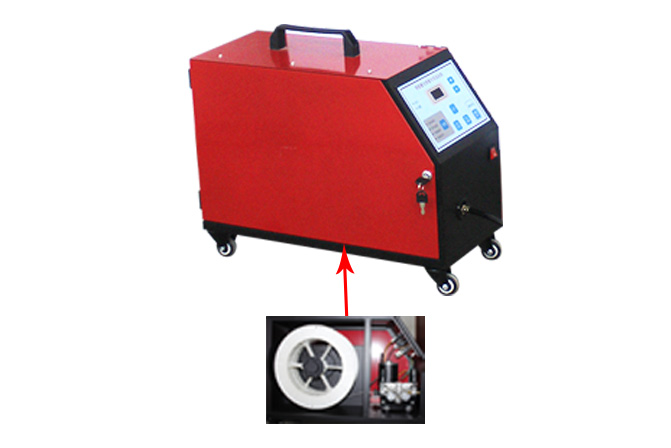

WIRE FEEDER

High degree of automation and labor cost saving.

Product Video

Specification

Technical Parameters
Technical Parameters
Model Fiber laser welding machine
Laserwavelength 1070nm
Laserpower 1000W/1500W/2000W
Operating mode Continue us/pu Ise
Length of fiber-optical 10m(standard)
Interface of fiber-optical QBH
Module life lOOOOOhrs
Power supply 220V/ 380V
Cooling method WaterCooling
LaserEnergy Stability <2%
Air humidity 10-90%
Recommended welding thickness 1000W Stainless steel, carbon steel 0-2mm
Red light positioning Support
Recommended welding thickness
1000W Stainless steel, carbon steel 0-2mm Galvanized sheet,aluminum 0-1.5mm
1500W Stainless steel, carbon steel 0-3mm Galvanized sheet,aluminum 0-2mm
2000W Stainless steel, carbon steel 0-4mm Galvanized sheet,aluminum 0-3mm
