Best reci 80w 100w cnc laser engraver wood stone mdf laser cutting machine 6090 9060 cnc co2 laser engraving machine

Short Description:

Advantages of FST- 9060 laser cutting machine

applicable materials Acrylic , leather , wood , rubber , double-color board , MDF , plywood,bamboo , paper , cardboard , marble , granite , stone , glass , fabric,textile , coated metal , painted metal , anodised aluminum etc.

Applicable industries

Arts and crafts , advertising , decoration , wood working , leather manufacturing , packaging , printing , mould making , furniture , clothing and brand making etc.


Product Detail

Product Tags

FIELD-LENS72

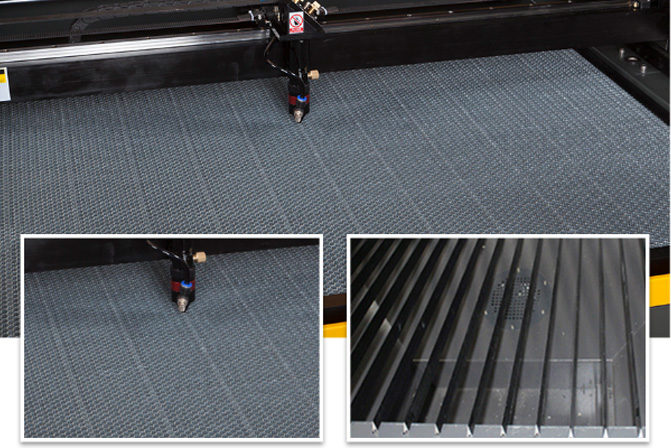

WORK AREA

900*600mm You can choose Honeycomb worktable Aluminum knife one or two. It depends on the needs of the customer.

INDUSTRIAL LASER HEAD

High precision retractable laser head easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce material loss. Auto-blowing to protect laser head and prevent the laser burning

FIELD-LENS72
FIELD-LENS72

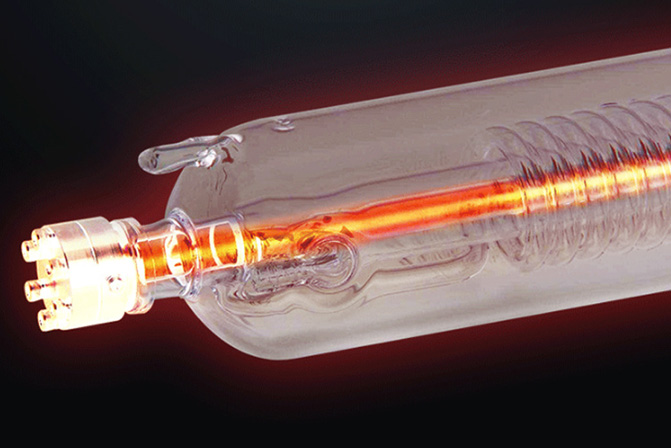

LASER TUBE

Closed Co2 laser tube , long life stable power Installation of reinforcement settings , the lase tube is not easy to collide and cause damage when moving the machine ( EFR , RECI, CDWJYONGLI, JOY.

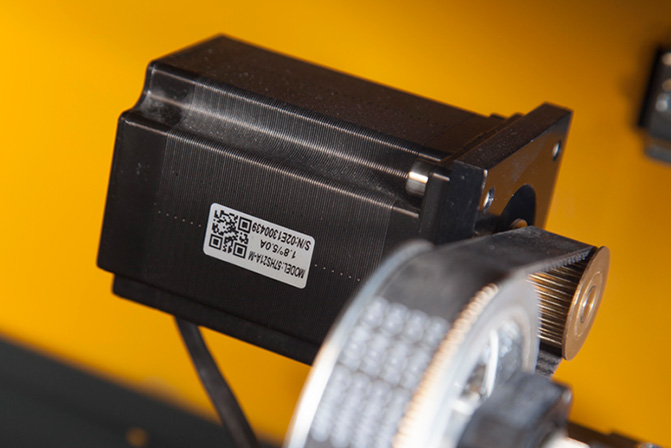

BRAND STEPPER MOTOR

High operating accuracy, high temperature resistance, can bear the high temperature generated  by high-speed operation , and low noise.

FIELD-LENS72
FIELD-LENS72

ELINEAR GUIDE RAIL

Taiwan TBI linear guide , high precision, high speed high stability

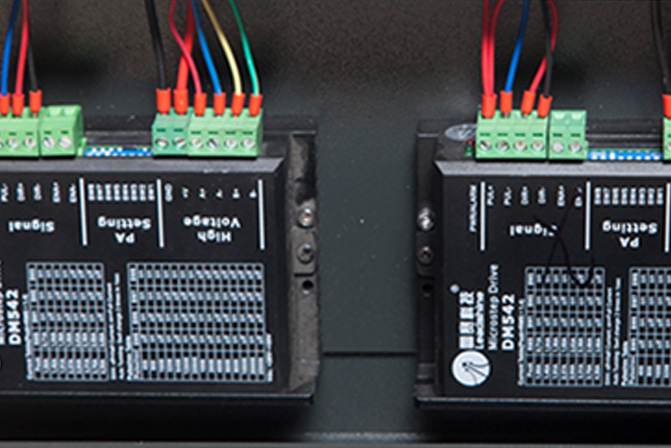

Leadshine DRIVER

Self adaptive circuit

Necessary accessories of off-line working

FIELD-LENS72
FIELD-LENS72

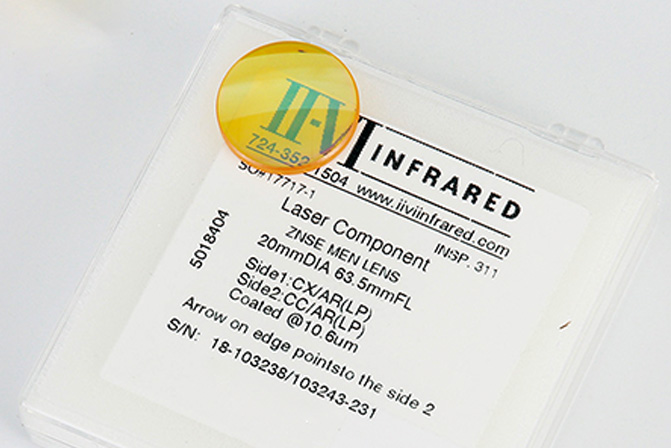

USA II-VI LENS

Imported USA II-VI Lens, suitable for various environments , and has high precision and high speed.

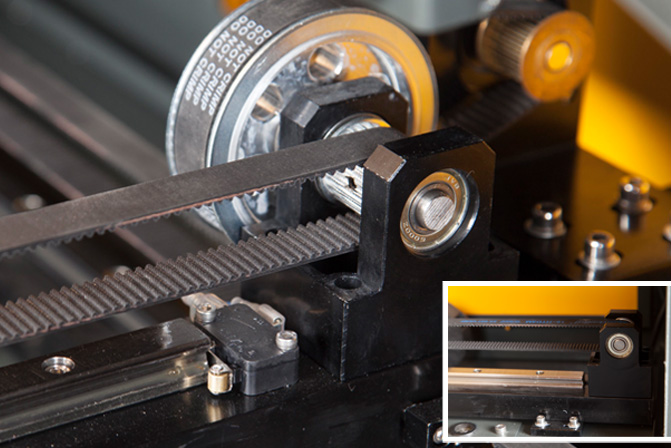

FAMOUS BRANID BELT

The ONK brand belt, wear resistance, good stability, compact structure and low noise

FIELD-LENS72
FIELD-LENS72

LEADING CHAIN

The current lead and breather pipe are included in it. Thicker, more stable Keep the laser head from shaking

Control panel OFF - LINE

Free upgrade to RD-6445

Can read the processed image in u-dlisk , and operate on the panel to engrave or cut directly without PC.

FIELD-LENS72
FIELD-LENS72

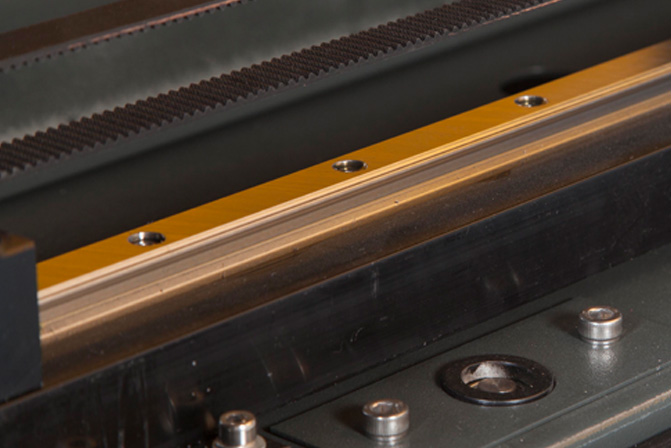

Imported LINEAR GUIDE

XY axis apply imported square rails Ensures stable operation , high precision and long life

AMPEREMETER

Measurement of current in AC and DC circuits during machine operation

FIELD-LENS72
FIELD-LENS72

Supported SOFTWARE

Coreldraw and CAD control directly.

Advanced working software which can be embedded into Coredraw and CAD User can operate the machine buy Coredraw or CAD software directly

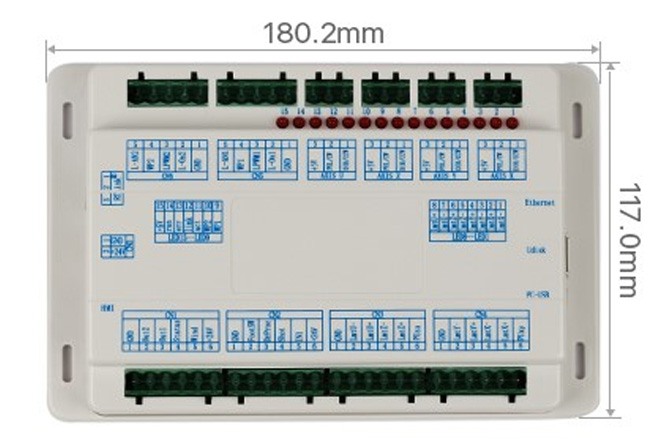

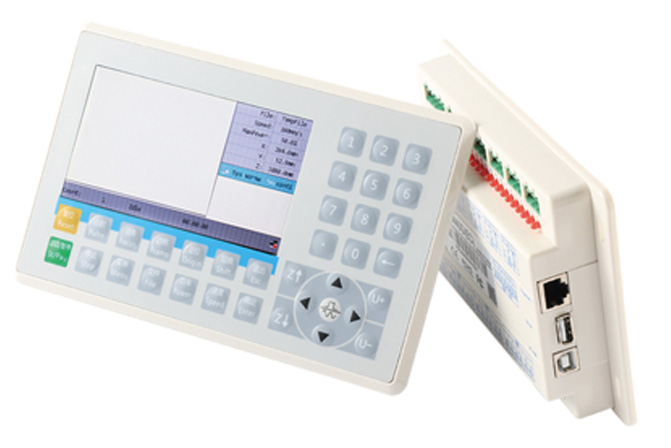

Ruida Main Board

1. Continue on power-off point

2. Engrave and cut concurrently

3. Visual moving track

4. Faster and more accurate

5. U-disk data reading--without PC

Multi-language in LCD panel. Ruida 6442S . The interface of the control panel is simple , easy to learn , easy to operate and the system is stable.

FIELD-LENS72
FIELD-LENS72

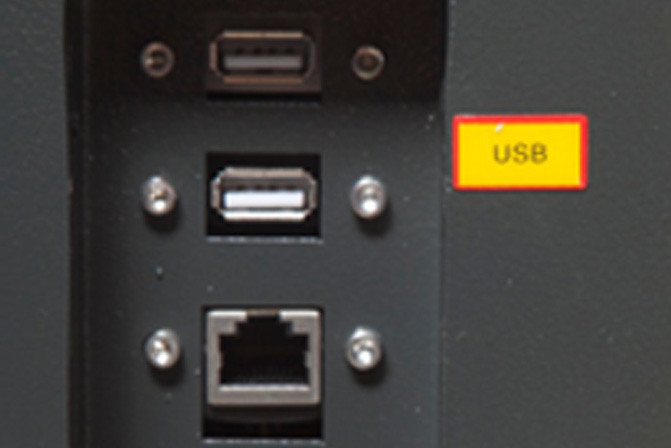

USB interface

USB interface USB cable. TWO kinds of transmission fies.

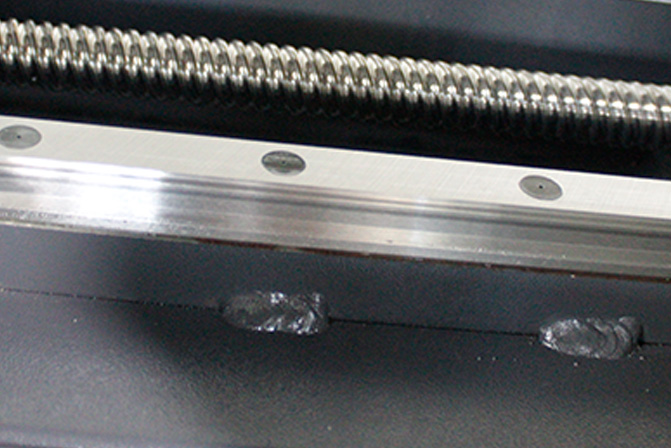

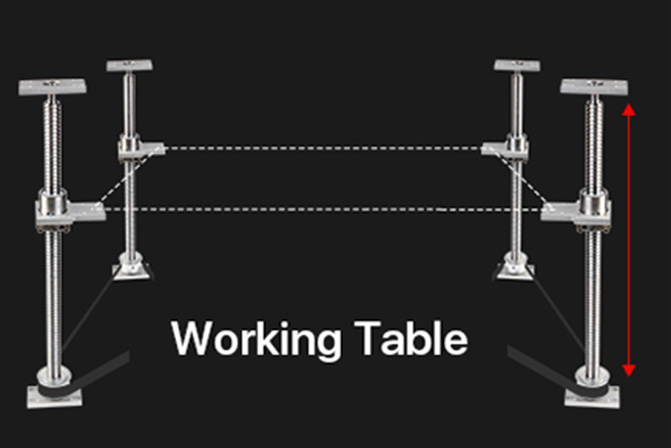

Up and down working table

Z-axis lifting structure for optional assembly. The ball screws are precisionmachined , ground , assembled and quality-controlled to ensure high-precision quality.

FIELD-LENS72
FIELD-LENS72

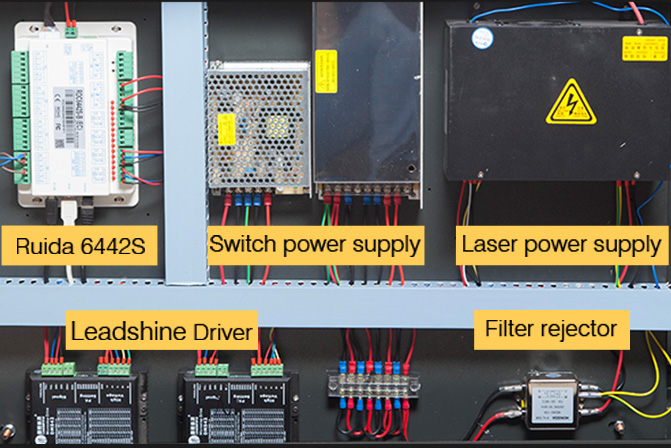

Distribution cabinet

Machine detail . Take every detail seriously to ensure that the machine is stable working during service to every customer.

Product Video

Specification

Technical Parameters
Technical Parameters
Machine model co2 laser cutting machine with ball screw
Laser power 150w/180w/220w/300w
Beam quality M2W11
Table size 1250mmX 900mm
Max load-bearing of platform 200KG
Max cutting thickness Acrylic:25mm
Repetition accuracy ±0.005
X-axis 1250mm
Length Y-axis 900mm
Z-axis 30mm
Working vo tage 110V/220V50-60HZ
Machine size 1750mmxl600mmxl200mm (LxWxH)
Net weight 450 kg
