6000W Four Wire Feeding 4 in 1 Handheld Laser Welding Machine with Ultra High Power Precision Productivity Combined

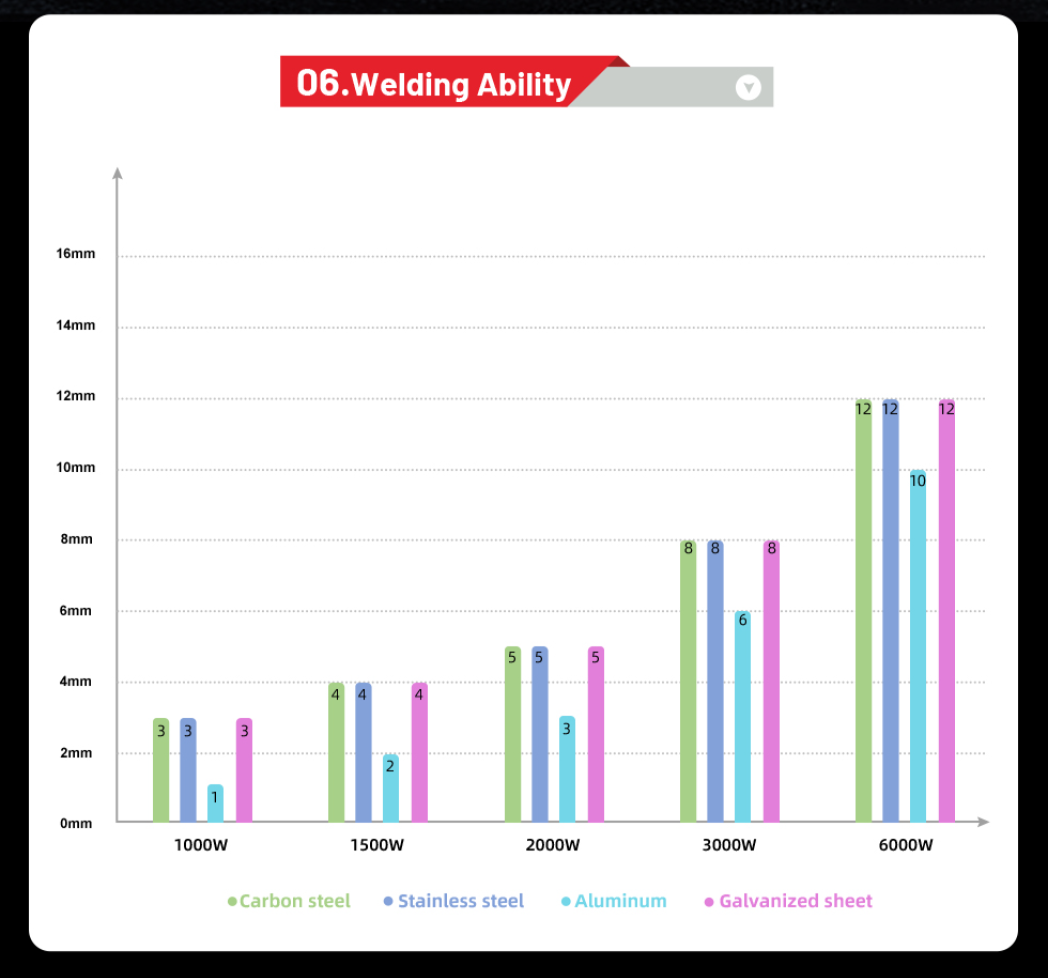

6000W handheld laser welding machine is a multi-functional integrated device with four core functions: welding, cutting, cleaning, and weld seam cleaning. This welding machine can weld various metal materials, including carbon steel plates with a thickness of approximately 2mm to 16mm, stainless steel plates with a thickness of up to 16mm, and aluminum plates with a thickness of 8MM, etc. It is equipped with a four-wire feeding, and the maximum weld seam width can reach 12MM. This equipment is designed to meet the diverse needs of modern industry. Its powerful 6000W laser power enables the device to efficiently and precisely weld and cut various metal materials, while ensuring welding quality and cleanliness, achieving high-standard industrial production.

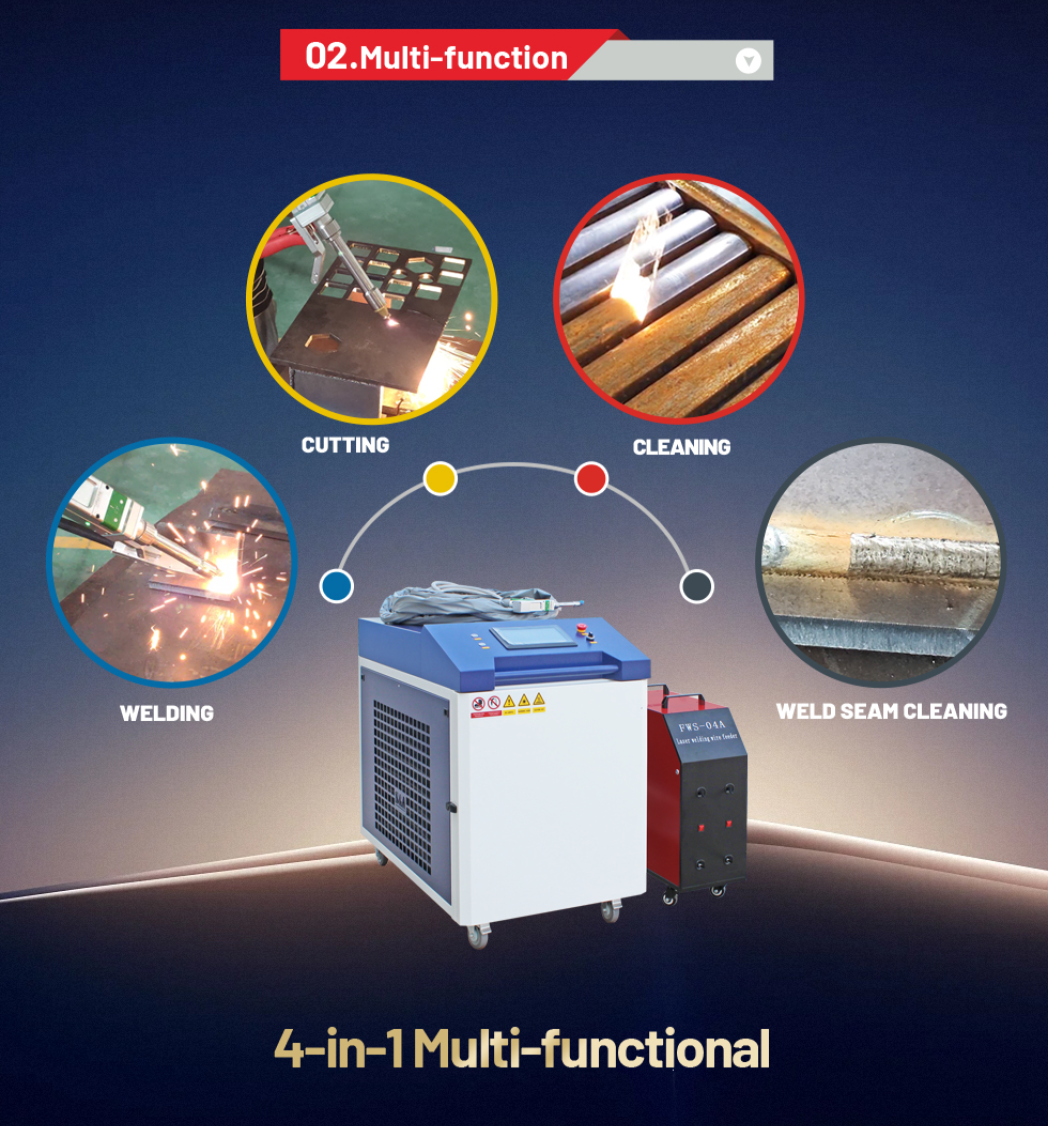

1. Multifunctional integration: The equipment combines the four functions of welding, cutting, cleaning and weld cleaning in one. Enterprisesl do not need to invest in multiple devices, saving space and cost for the production process Users can flexibly switch functions as needed, greatly improving production efficiency.
2.6000W High power ：With a powerful laser output of up to 6000W, this equipment is capable of efficiently and precisely welding and cutting various metal materials, supporting wider weld seams, while also ensuring welding quality and cleanliness, thus enabling high-standard industrial production.
3. Improve production efficiency: The integrated cleaning and weld cleaning functions provide a clean surface for subsequent processing steps,l thereby speeding up the entire production process and shortening delivery cycles. This efficient process design.l enables enterprises to respond to market demands more quickly.
4. Dual protection function ：It has the dual protection function of water path and air path (patented technology), which effectively avoidsl damage to the laser lens or optical components due to operator misoperation, thus greatly reducing the machinel failure rate and effectively extending the service life of the machine. The life of consumables.
5. Low maintenance cost ：Laser welding machines usually have low maintenance requirements. Compared with traditional welding and cutting processes, the operation and maintenance costs are more economical, which helps enterprises reduce long-term investment.
6. Red light positioning ：Use infrared positioning to verify the position of the welding head during the welding process. The welding posi-l tion is more accurate, the welding seam is smooth and beautiful, and it is easy to grind and polish. No post-welding treatment is required or only simple processing is required.
This 6000W 4-in-1 laser welding machine has become an indispensable choice for enterprises in their intelligent manufacturing process. Moreover, due to its advantages such as integrated functions, high precision and high efficiency, it has achieved optimization of the production process. It is easy to operate and quick in execution.

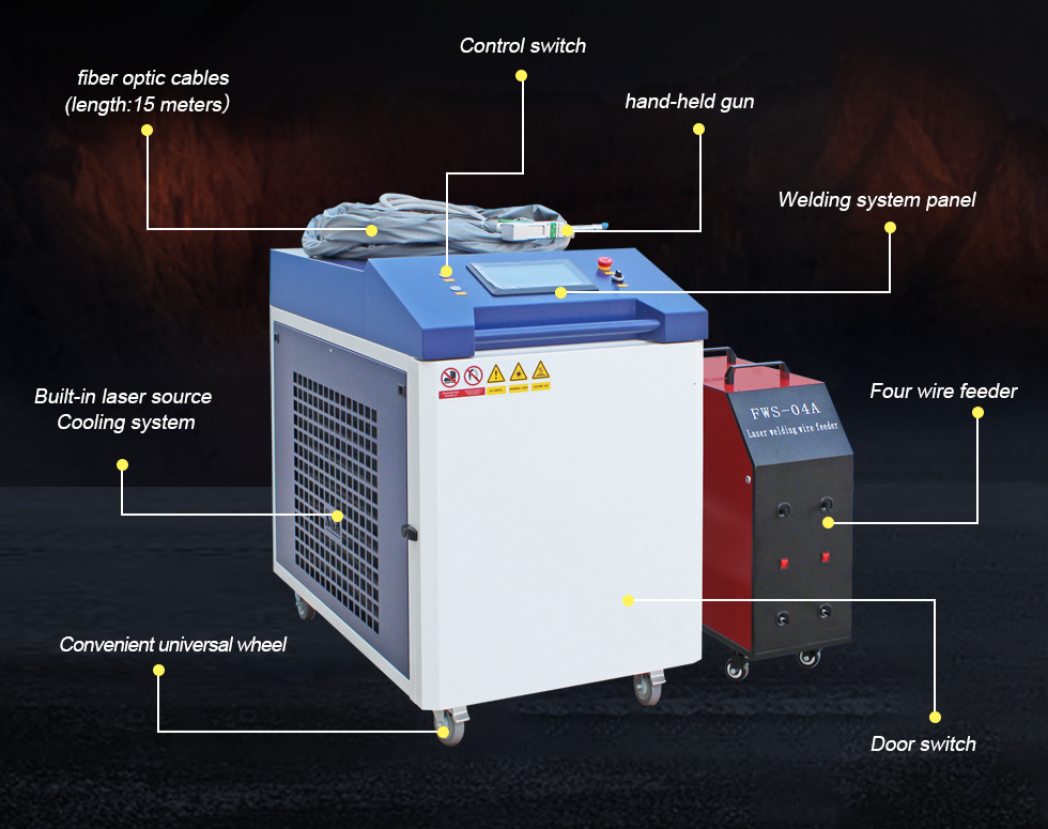

FWS-04A AUTOMATIC FOUR WIRE FEEDING
Support welding wire: 1.2, 1.6, 2.0mm Dual control with free switching between dual wires and four wires. Original wire feeding fixture for flexible and convenient wire feeding switching. Four-wire feeding technology ensures wider and firmer welding results, greatly improving welding quality. High-power motor enables fast and precise wire feeding, enhancing welding efficiency. Dual-drive wire feeding with strong thrust for more stable wire feeding. Equipped with a brake resistance disc shaft to prevent wire loosening when the motor stops. The machine body is fitted with sliding wheels for easy movement. Large wire storage and feeding capacity, ready for immediate operation.
CWFL-6000ENW WATER CHILLER
The integrated compact structure design effectively isolates heat source interference and ensures the quality of the laser beam; the equipment is equipped with a dual heater and an intelligent protection system, which can monitor parameters such as water temperature, flow rate, and pressure in real time and issue warnings for faults.
LASER SOURCE
Famous brands such as Raycus, Max, IPG, JPT, etc. The most important part of laser welding machine. Working life is 100,000 hours.

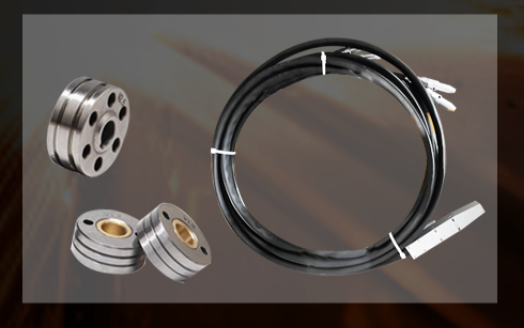

FOUR WIRE FEEDING TUBE AND U-SHAPED WHEEL
Laser welding of aluminum requires graphene wire feeding tube and U-shaped wheel: the wire feeding tube is resistant to high temperature, lubricated, and ensures stable transportation, The U-shaped wheel is compatible with aluminum wire, reducing drag and improving efficiency. The two work together to optimize welding and achieve precision and efficiency.

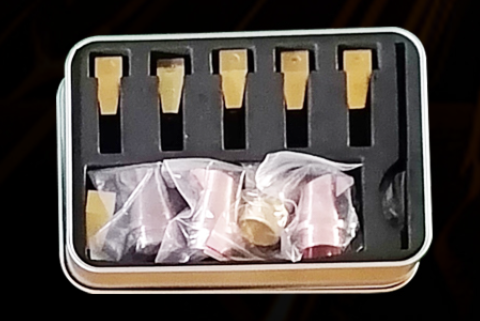

NOZZLE
Different shapes of nozzles are suitable for different jobs. It needs to choose the right wire material when used with a wire feeder. When switching to cutting mode, the replacement of a special welding nozzle is very important for the welding effect.

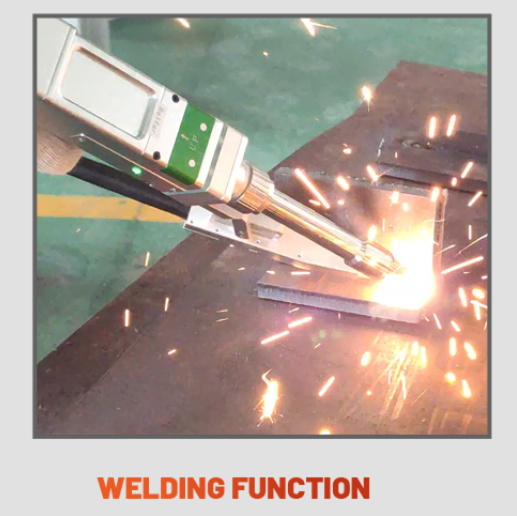

WELDING FUNCTION
Fast welding speed and improves welding efficiency. Good welding effect, improve the yield rate. Easy to operate, inexperienced people can quickly learn how to operate the equipment within 5 minutes, saving labor costs for factories

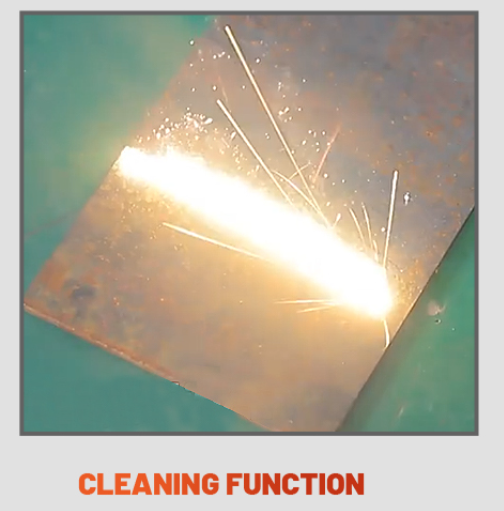

CLEANING FUNCTION
The cleaning function is available by replacing the front of the laser head and switching the control panel to cleaning mode Laser cleaning can quickly remove rust from metal surfaces, and factories that process carbon steel will often use this function.

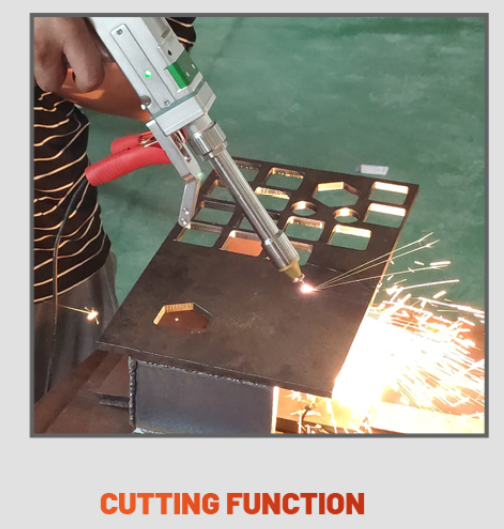

CUTTING FUNCTION
Change the parameters in the control panel, and choose the nozzles for cutting, the machine can be switched to the cutting mode.It is able to cut thin metal sheets easily and quickly, speeding up factory production efficiency.

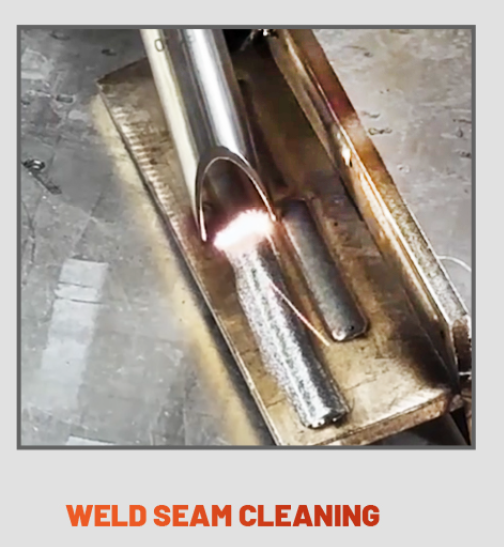

WELD SEAM CLEANING
The weld cleaning function can remove the contaminants or oxides on the weld surface, making the weld more clear and smooth. It is an efficient, environmentally friendly, accurate, widely applicable and adjustable cleaning technology, which can meet the needs of customers with higher requirements.
| Model | FST-6000 |
| Power | 6000w |
| Welding gun weight | 1.3KG |
| Max.welding thickness(mm) | ≤12mm |
| Cooling method | Water Cooling |
| Laser detection method | Bluetooth wireless connection, Mobile App Monitoring |
| Control panel language support | English, Spanish, German, French, Turkish, Italian, Russian, Japanese,etc. |
| Laser wavelength (nm) | 1070 |
| Laser power adjustment range(%) | 10-100 |
| Welding aiming preview method | Built-in Red-Light pointer |
| Length of fiber optic cable(m) | 10m |
| Welding shielding gas | Argon or nitrogen (air pressure approx. 6-8 bar) |
| Automatic wire feeder type | Four wire feeder |
| Power supply requirement | 380V+10%,three phase |
| Machine net weight (KG) | 298kg |
1.Non contact The 6000 watt cleaning focusing lens adopts an F1800 focal length. When cleaning, it is about 1.5 meters away from the surface of the workpiece and has two blowing paths to better isolate pollutants and protect the lens from contamination.
2.Selectable Cleaning width 10-500mm, adjustable freely
3.High speed performance The cleaning speed is faster and the cleaning effect is cleaner. A 6000 watt cleaning can clean about 27 square meters of oxide layer, 90 square meters of rust, and 20 square meters of paint per hour (the specific material removal rate depends on the laser parameters and material characteristics)
4.Security Laser cleaning does not require additional grinding materials or chemical solvents, and there is no noise, dust, or harmful substances. Any steam generated during the cleaning process can be easily removed through the exhaust system.
Liaocheng Foster Laser Science & Technology Co., Ltd.

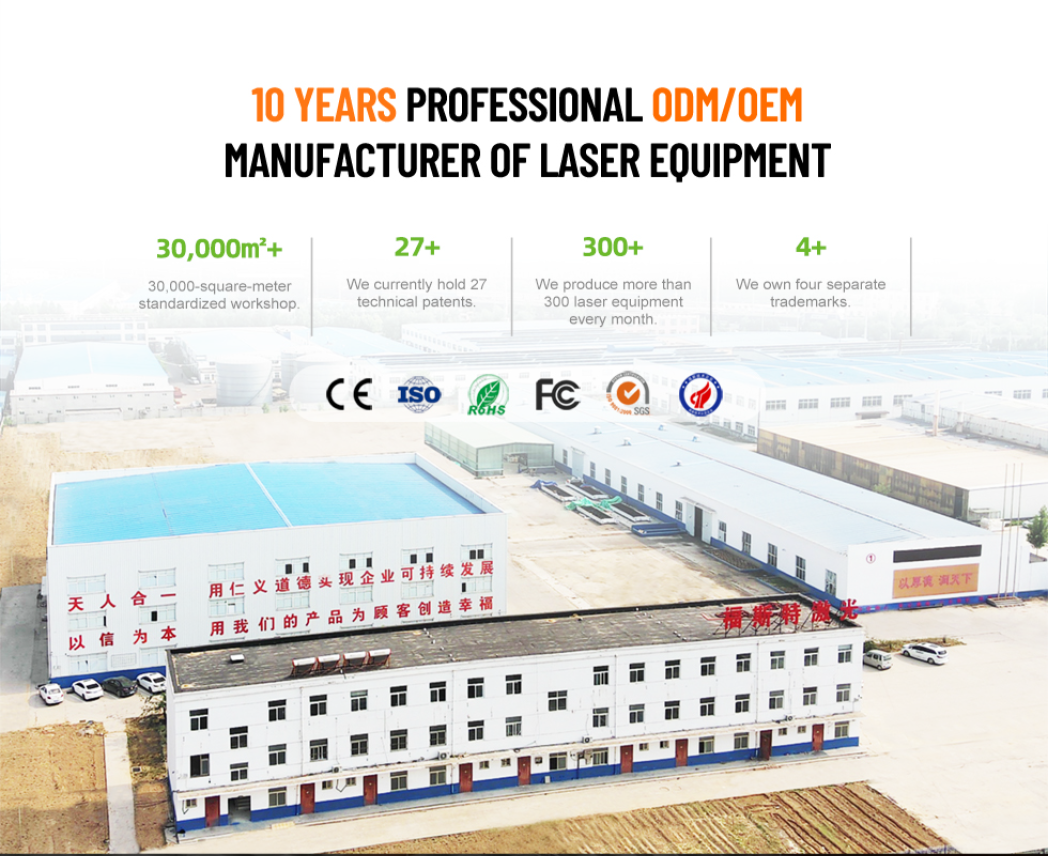

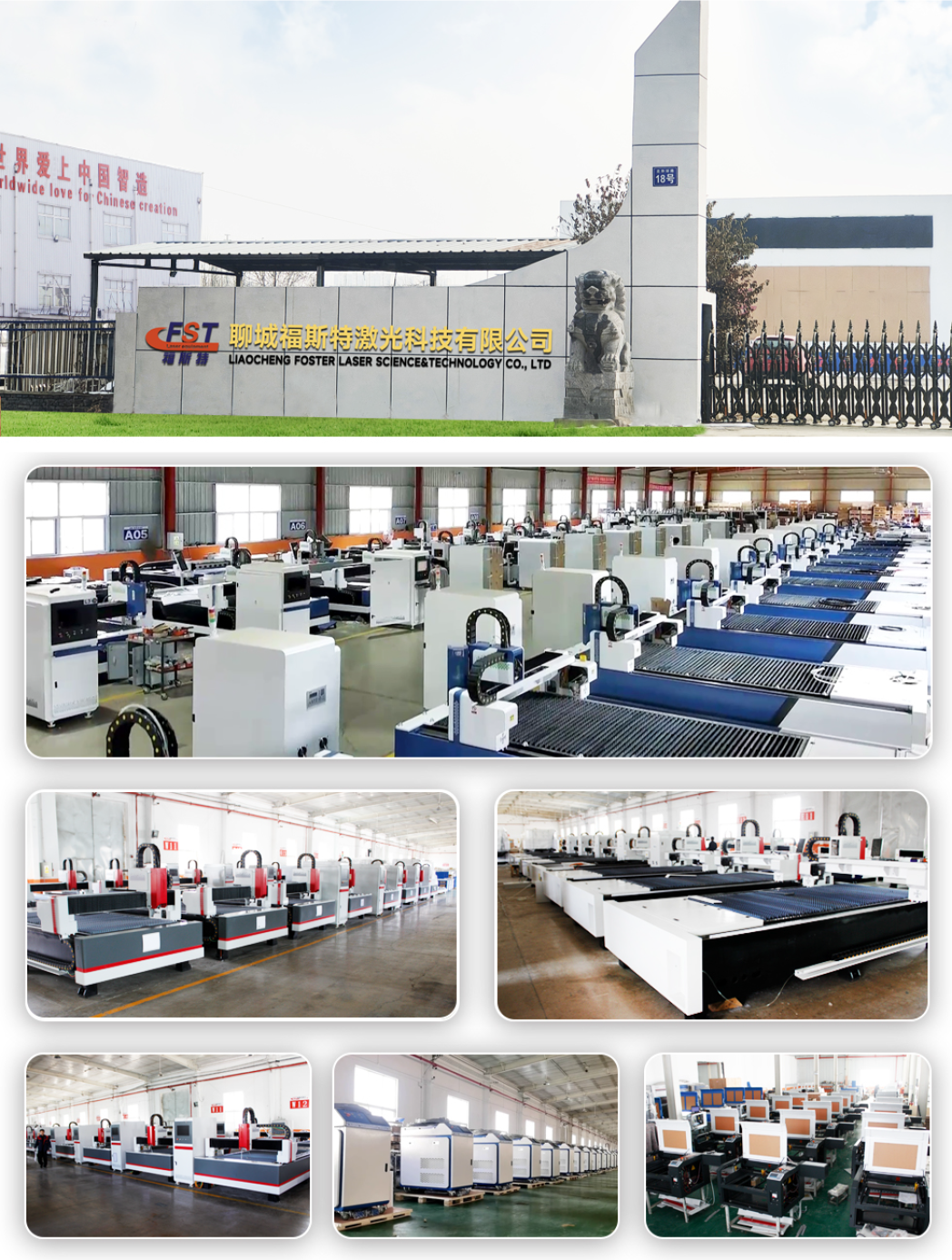

Liaocheng Foster Laser Science & Technology Co., Ltd. A professional manufacturer dedicated to the research and production of laser equipment, covers an area of over 10000 square meters. We mainly produce laser engraving machines, laser marking machines, laser cutting machines, laser welding machines, laser cleaning machines.
Since its establishment in 2004, Foster Laser has always adhered to the Customer centric . By 2023. Foster laser equipment has been exported to more than 100 countries and regions, including the United States, Brazil, Mexico, Australia, Turkey, and South Korea, winning the trust and support of customers. The company's products have CE, ROHS and other test certificates, a number of application technology patents, and provides OEM services for many manufacturers.
Foster Laser is equipped with a professional R&D team, sales team, and after-sales team, which can provide you with a perfect purchasing and usage experience. The company can customize products. logos, exterior colors, etc. according to demand. Meet your customization needs.
Foster Laser, looking forward to your visit.
FAQ
Q：How can I choose the most suitable machine?
A：In order to recommend vou the most suitable machine model. please let us know the following details: 1.What is your material? 2.The size of material? 3.The thickness of material?
Q：When I get this machine, how do I use it?
A：We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q：If some problems happen to this machine, what should I do?
A：We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know.l we will give you solutions.
Q：What is the payment terms?
A：The payment terms we accept include:Western Union,TIT,VISA,Onlina Bank Payment
Q：How about the shipping ways?
A：Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
