Metal pipe tube cnc fiber laser cutting machine round pipe laser cutting machine for sale

Short Description:

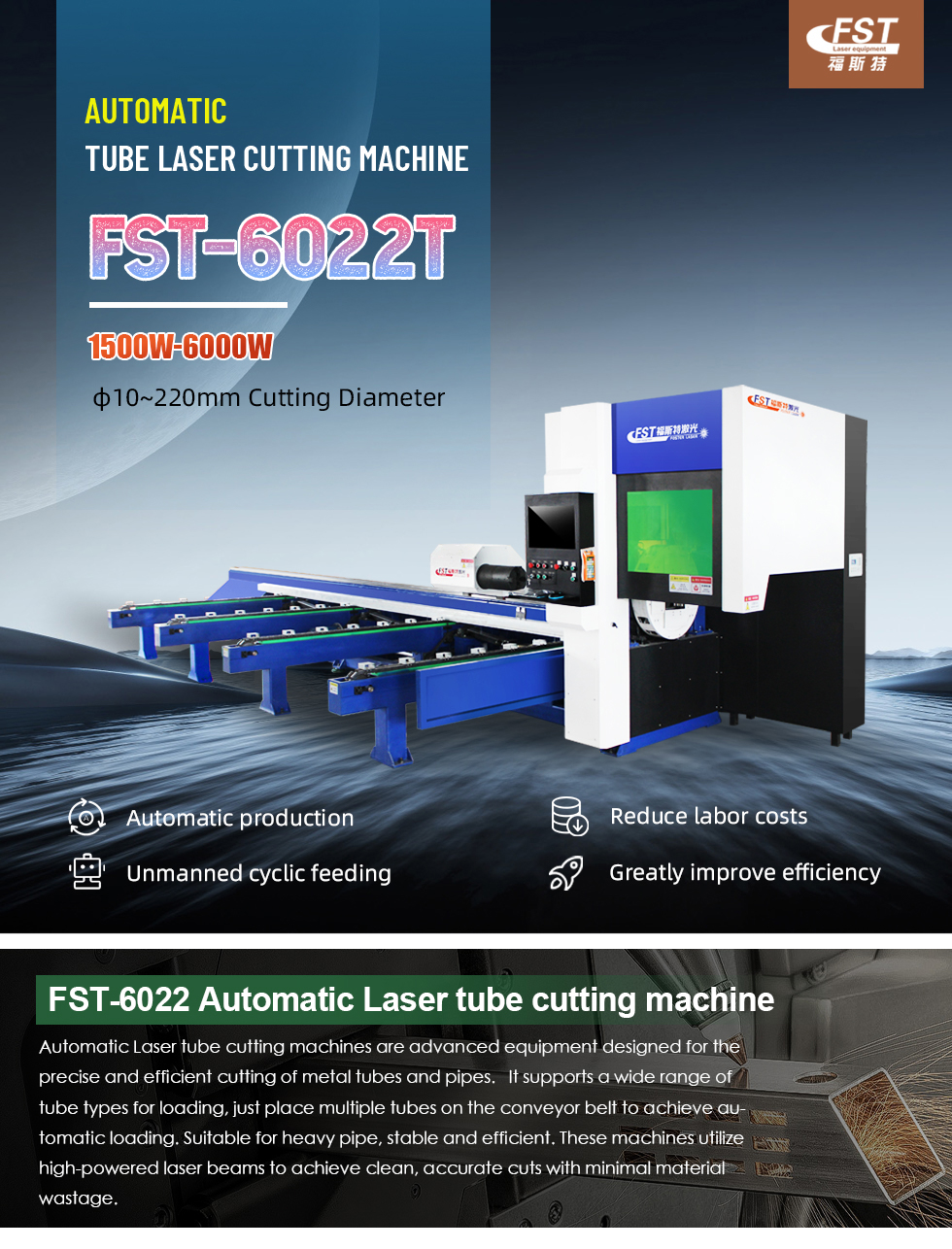

FST-6022 Automatic Laser tube cutting machine

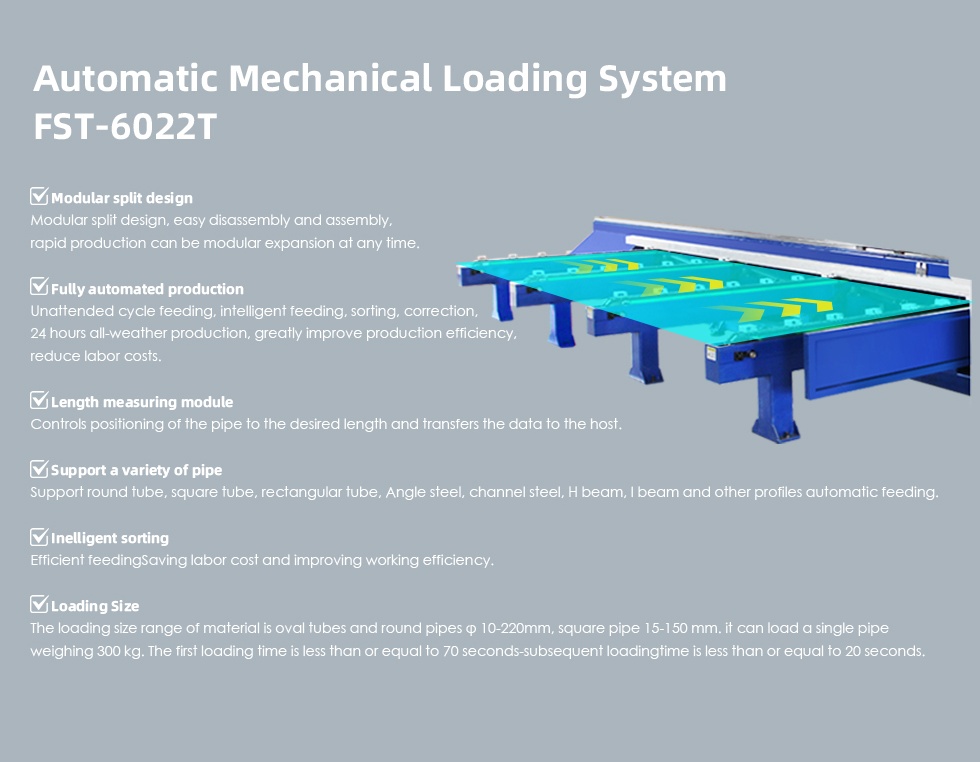

Automatic Laser tube cutting machines are advanced equipment designed for the precise and efficient cutting of metal tubes and pipes. it supports a wide range of tube types for loading, just place multiple tubes on the conveyor belt to achieve automatic loading. Suitable for heavy pipe, stable and efficient. These machines utilize high-powered laser beams to achieve clean, accurate cuts with minimal material wastage

Send email to us Download as PDF

Product Detail

Product Tags

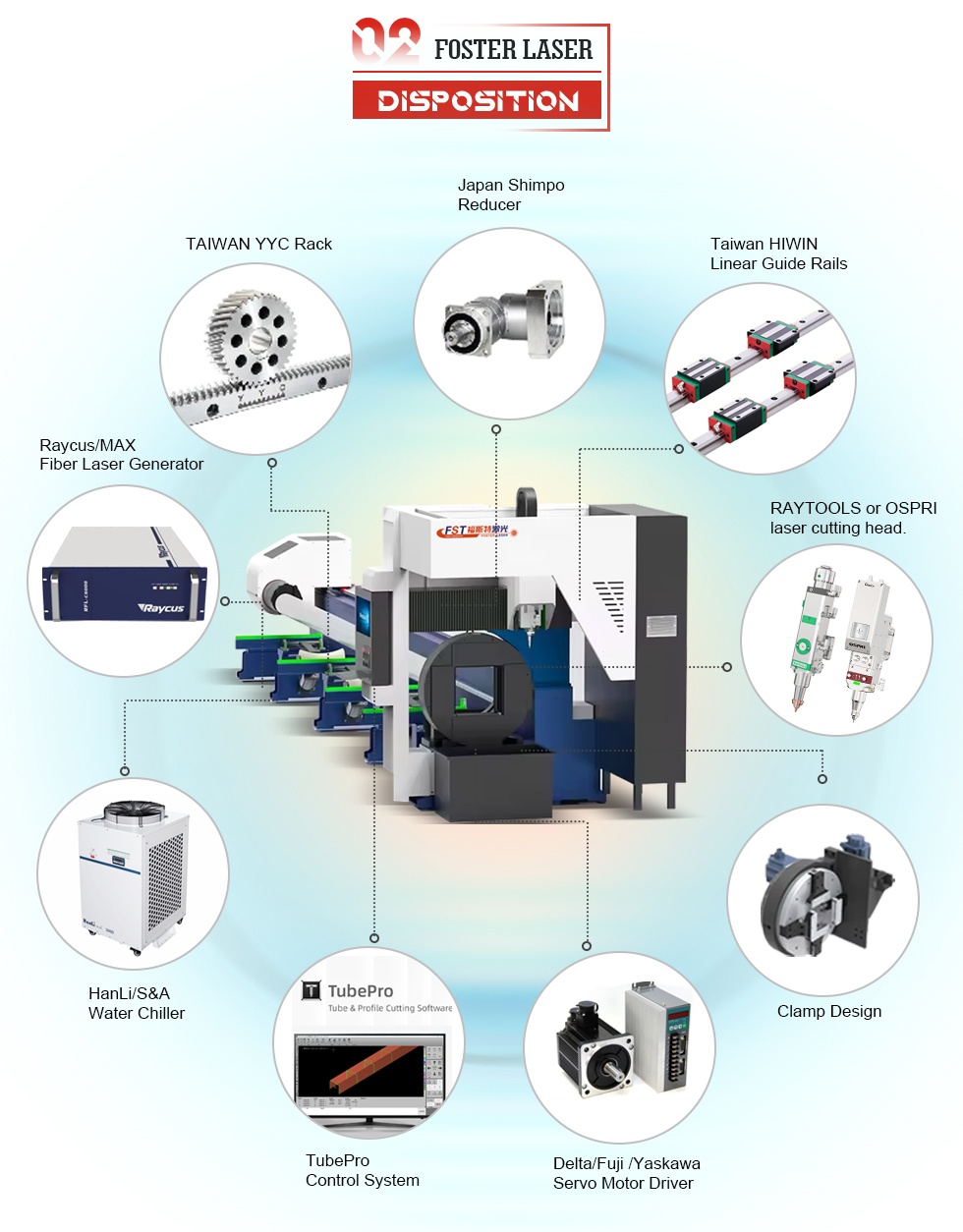

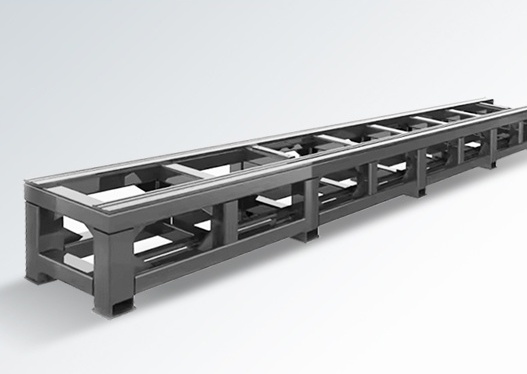

HEAVY-DUTY MECHANICAL STRUCTURE

Adopting high-quality carbon steel welding bed it is more stable and durable.Which has strong structural rigidity small deformation, and low vibration to ensure cutting accuracy

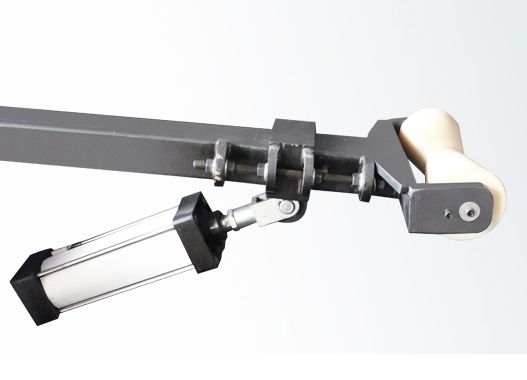

FRACTIONAL AUTOMATIC SUPPORT INSTALLATION

It employs intelligent tube support design,which can solve the deformation problems in the process of long tube cutting

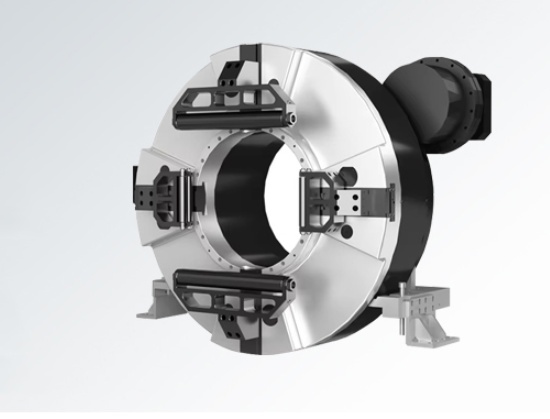

FRONT CHUCK

The middle chuck adopts a fully sealed appearance dust-proof structure to prevent dust from entering,and is beautiful and generous with aluminum alloy panel+ stainless steel cover buckle. Full stroke clamping range without gripper transposition adjustment,clamping force and load bearing force is strong.stable performance, high efficiency and clamping accuracy.

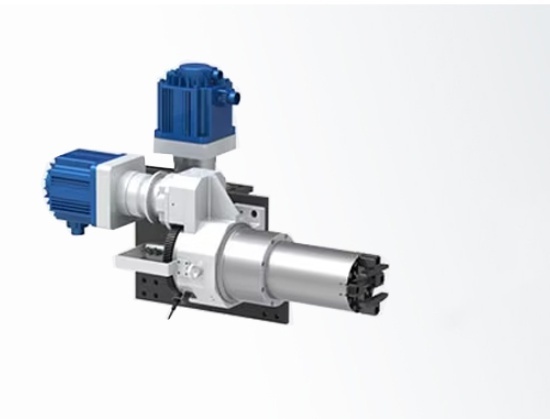

REAR CHUCK

The rear chuck with claw can clamp the special-shaped pipe, keep the pipe fitting does not slip, and has the function of dust extraction or blowing, the clamping stroke is large, the type of claw is small, easy to use,the clamping force is strong, can realize the heavy pipe fitting processing, and the integral support base structure,improve the support bearing stability.

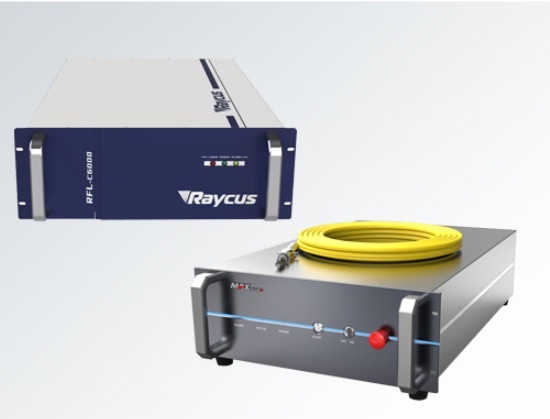

LASER SOURCE

Professional cutting laser source.With high-quality beam quality,high light conversion efficiency,the light emitting mode is more conducive to achieving a good and stable cutting effect with high quality.

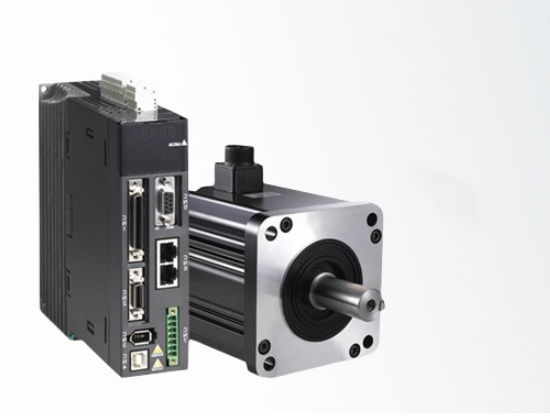

SERVO DRIVER AND SERVO MOTOR

Servo motors stabilise and drive the beam to control the movement of the XYZ axis according to the programmed instructions to complete the cutting operations with complex precision,and the user can adjust the parameters according to their needs

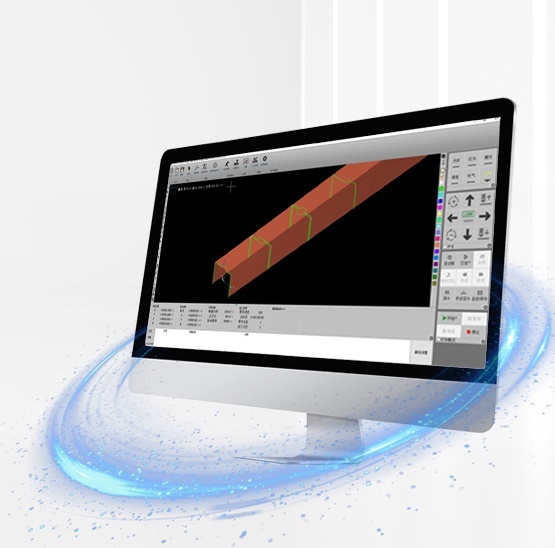

TubePro

TubePro designed for professional tube cutting.supports production of tube and profile of various shape. lt works with TubesT nesting software seamlessly to realize technique setting,advanced toolpath generation and nesting for standard and special production need.

1.Auto Find Tube Center in Production

2.Workpiece and Floating Coordinates

3.Seven-Axis Tube Delivering

4.Tube Holder

5.Corner Technique

6.Active Control at Corner Cutting

7.Quick Frog-Leap

8.Free Form Tube & Profile Production

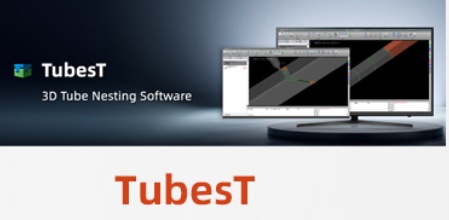

3D Tube Nesting Software

TubesT is a 3D tube nesting software designed for CypTube/TubePro laser cutting system. From parts drawing and modification, full type compensation.strategic nesting to report generation,using TubesT will meet and exceed your production needs.

3D Tube Nesting Software

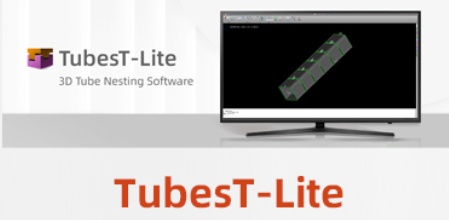

TubesT-Lite is a free software to generate toolpath for FsCUT tube cutting system.It's designed for CypTube/TubePro,can import part from external igs file,draw the part of standard shape and array-nest the part on the tube.

PARAMETERS

Material

PARAMETERS

Model	FST-6022AT
Working area(mm)	6000*φ10~220mm
Laser Power	1500W/2000W/3000W/4000W/6000wetc
Working table	Tube Y:6000mm X:250mm Z:200mm
Cooling Method	Water Cooling Protection
Cutting head	Raytools/OSPR/Au3tech/WSX/Precitec
Automatic feeding rack	6 pieces
Control system	Bochu
Laser source	Raycus/Max/Reci/IPG
Maximum Acceleration	1G
Positioning Accuracy	士0.05mm
Maximum Rotational Speed	85r/min
Machine Size	925032502360mm
Table Maximum Load\|KC)	300KG
Power Parameters	Three-phase AC 380V 50Hz(Can be customized)
Machine weight	4.5T
