Hot Sale Laser Steel Welding Machine Welding of Different Metal Materials

Short Description:

Foster Laser’s fiber laser welding machine integrates high-quality laser sources from leading brands such as Raycus, JPT, Reci, Max, and IPG, delivering stable output and high photoelectric conversion efficiency for precise and reliable welding results.

The compact handheld laser head supports four functions—welding, cutting, surface cleaning, and weld seam cleaning—providing flexibility for various industrial applications. Its ergonomic design and integrated control interface ensure ease of use and operator comfort during extended operation.

The system is equipped with an industrial-grade water chiller to effectively dissipate heat from key optical components, ensuring consistent performance, minimizing downtime, and prolonging equipment lifespan. A user-friendly touchscreen control system supports advanced platforms such as Relfar, Qilin, and Au3Tech, offering smooth operation across all functions. With multilingual support including English, Chinese, Korean, Russian, and Vietnamese, the system is designed for efficient use in global manufacturing environments.

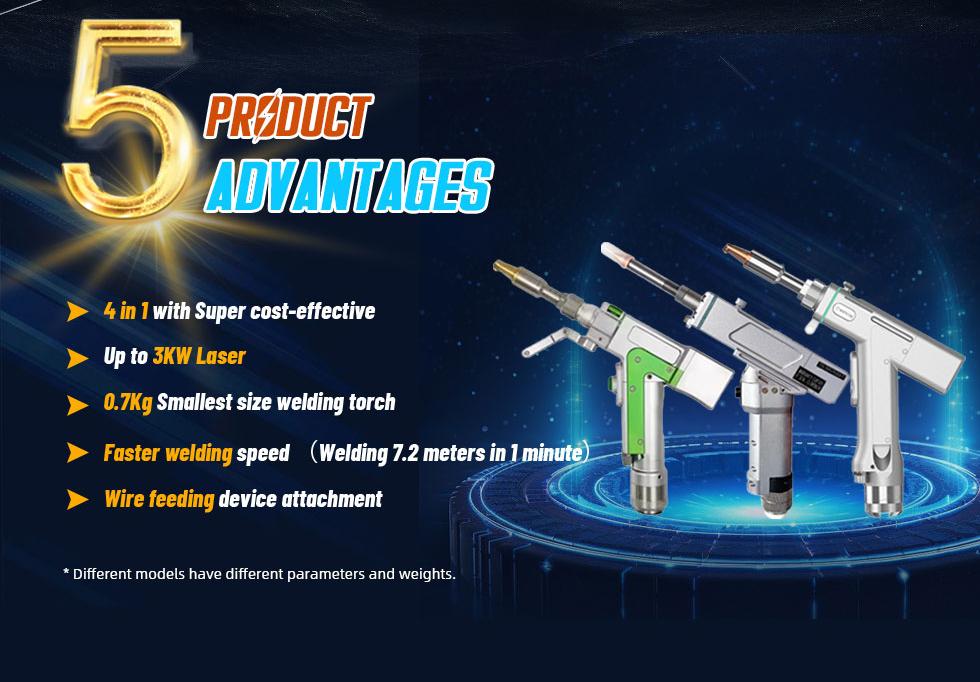

1.4 in 1 with super cost effective

2.up to 3kw laser

3.0.7kg smallest size welding torch

4.Faster welding speed

5.Wire feeding device attachment

Different models have different parameters and weights.

Send email to us Download as PDF

Product Detail

Product Tags

1.Famous Fiber Laser Source

Using well-known brand laser generators (Raycus /JPT/Reci /Max /IPG), a high photoelectric conversion rate ensures the laser power and makes the welding effect better. Foster laser can design different configurations to meet customer needs.

2.Industrial Water Chiller

The industrial water cooler ensures the heat dissipation of the core optical path components, allowing the welding machine to provide consistent welding quality and helping to improve the overall quality of the weld itself. It can also increase welding output by reducing the downtime of fiber laser welding machines. In addition, an excellent industrial water cooler can also prolong the service life of the laser welding machine.

3.4 in 1 Handheld Laser Head

The handheld laser head has a simple appearance, is small and light, and can be used by hand for a long time. The integrated design of the button and handle is simple and easy to use. It can realize four functions of welding, cleaning, weld seam cleaning and cutting through the intelligent controller according to different usage scenarios, truly realizing four in one functions in one machine.

4.Interactive Touch Screen Control System

Foster laser provides Relfar, Super chaoqiang, Qilin, Au3Tech operating system with high performance, intuitiveness, and ease of use. It can not only provide good weld results but also provide good cleaning and cutting results. The operating system supports Chinese, English, Korean, Russian, Vietnamese, and other languages.

PARAMETERS

Model	Fiber laser welding machine
Laser wavelength	1070nm
Laser power	1000W/1500W/2000W/3000W
Operating mode	Continuous/pulse
Length of fiber-optical	10m(standard)
Interface of fiber-optica	QBH
Module life	100000hrs
Power supply	220V/380V
Cooling method	Water Cooling
Laser Energy Stability	≤2%
Air humidity	10-90%
Welding thickness	1000W Stainless steel carbon steel 0-2mm
Red light positioning	Support

Recommended welding thickness

1000W	Stainless steel carbon steel 0-2mm Galvanized sheet aluminum 0-1.5mm
1500W	Stainless steel carbon steel 0-3mm Galvanized sheet aluminum 0-2mm
2000W	Stainless steel carbon steel 0-4mm Galvanized sheet aluminum 0-3mm
3000W	Stainless steel carbon steel 0-6mm Galvanized sheet aluminum 0-4mm

Liaocheng Foster Laser Science & Technology Co., Ltd.

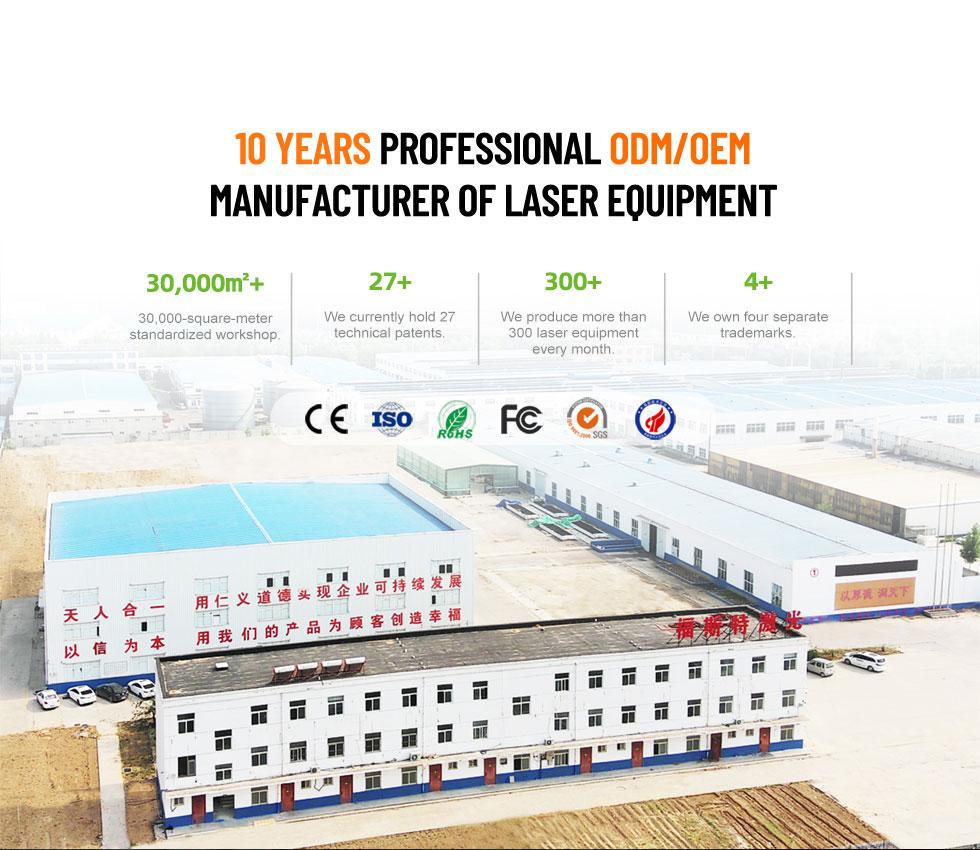

Liaocheng Foster Laser Science & Technology Co., Ltd. A professional manufacturer dedicated to the research and production of laser equipment, covers an area of over 10000 square mefers. We mainly produce laser engraving machines, laser marking machines, laser cutting machines, laser welding machines, laser cleaning machines.

Since its establishment in 2004, Foster Laser has always adhered to the Customer centric . By 2023. Foster laser equipment has been exported to more than 100 countries and regions, including the United States, Brazil, Mexico, Australia, Turkey, and South Korea, winning the trust and support of customers. The company's products have CE, ROHS and other test certificates, a number of application technology patents, and provides OEM services for many manufacturers.

Foster Laser is equipped with a professional R&D team, sales team, and after-sales team, which can provide you with a perfect purchasing and usage experience. The company can customize products. logos, exterior colors, etc. according to demand. Meet your customization needs.

Foster Laser, looking forward to your visit.
