High Cost Performance Fiber Laser Marking Machine 30w 20w Laser Marking Machines For Gold

Short Description:

Advantages of split fiber laser hand held marking machine

1. MODULAR DESIGN
Separate laser generator and lifter , more flexible , Can mark on bigger area and complicated surface Air-cooled inside , small occupation,easy to install .

2.S IMPLE OPERATION
High efficiency for photoelectric conversion , simple operation , Compact in structure , support harsh working environment , no consumables .

3. EASY FOR TRANSPORTATION , MARK BIG OBJECTS
Fiber laser marking machine is portable and hand held . Easy for transportation . Its movable marking operation allows user to mark on large pieces or some pieces not movable .

4. NO CONSUMABLES , LONG LIFESPAN MAINTENANCE FREE
The Fiber laser source has super long lifespan of over 100,000 hours without any maintenance . No need to spare any extra consumer parts at all.
Suppose you will work for 8 hours per day , 5 days a week , A fiber laser could work properly for you for more than 8-10 years Without extra costs except electricity .


Product Detail

Product Tags

handheld laser marking machine

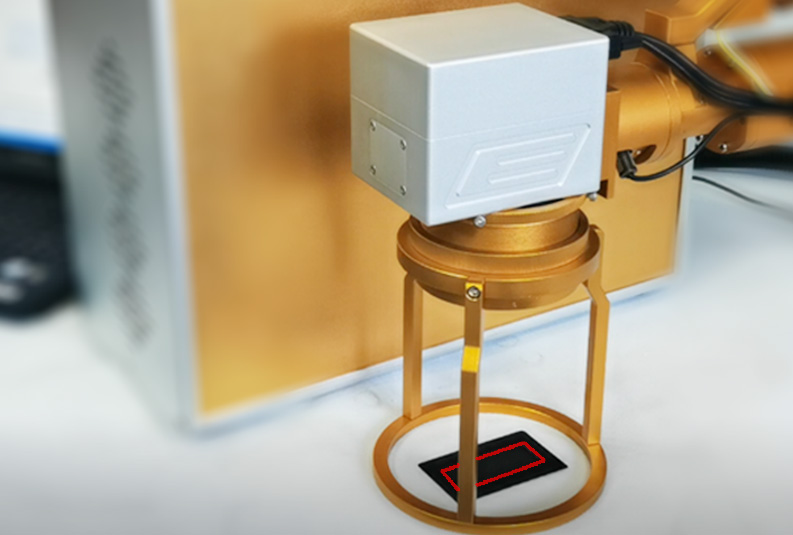

FIELD LENS GALVO HEAD

We use famous brand to provides precision laser Standard 110 x 110mm marking area . Famous brand Sino-galvo , high speed galvanometer scan adopting SCANLAB technology , digital signal , high precision and Speed

LASER SOURCE

We use Chinese famous brand Max laser source Optional : IPG / JPT / Raycus laser source.

handheld laser marking machine
handheld laser marking machine

JCZ CONTROL BOARD

Ezcad genuine products, user-friendly interface, functional diversity, high stability, high precision. Each board has its own number to ensure that it can be inquired in the original factory. Refuse to fake

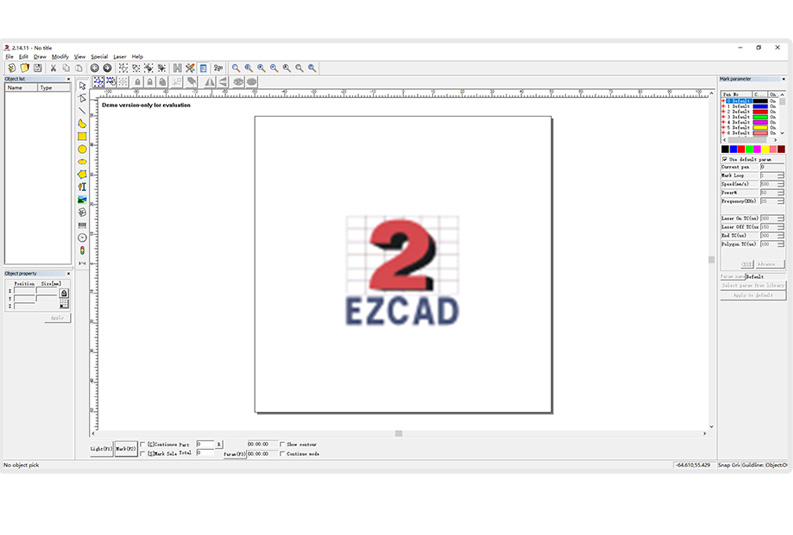

SOFTWARE

handheld laser marking machine

1. Powerful editing function.

2. Friendly interface.

3. Easy to use.

4. Support Microsoft Windows XP, VISTA, Win7, Win10 system.

5. Support ai , dxf , dst , plt , bmp ,jpg , gif , tga , png , tif and other file formats.

RED LIGHT PREVIEW

Adopt Red light preview to show the laser path since laser beam is invisible.

handheld laser marking machine
handheld laser marking machine

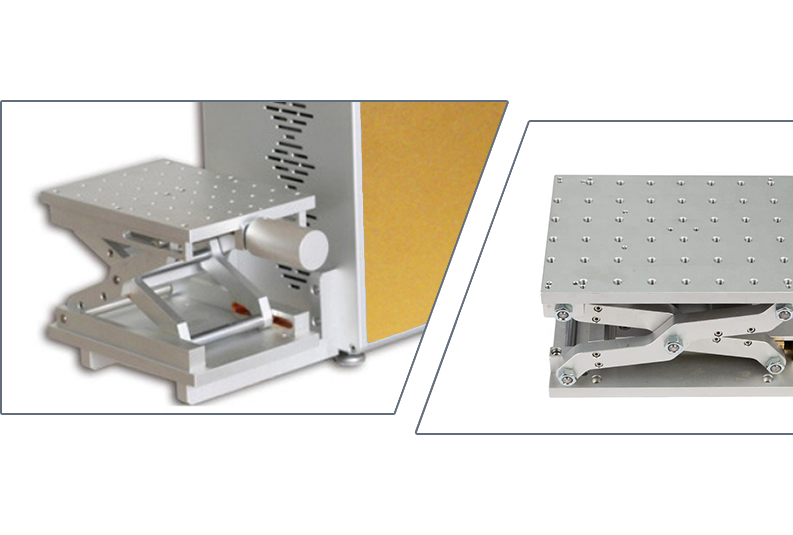

WORKING PLATFORM

Alumina working platform and imported precise beeline device. Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.

MARKING RULER AND ROTATING HANDLE

Enables customers to precisely position for fast engraving Adapting To Different Products Height

MARKING RULER AND
laser marking machine

WORKING PLATFORM

Alumina working platform and imported precise beeline device. Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.

FOOT SWITCH

It can control the laser on and off make the operate more convenient.

laser marking machine
laser marking machine GOGGLES ( OPTIONAL )

GOGGLES ( OPTIONAL )

Can protect eyes from laser Wave 1064nm, let the operate more safe.

Product Video

Specification

Technical Parameters
Technical Parameters
Model Fiber marking machine
Working area 110*110/150*150/200*200/300*300(mm)
Laser power 10W/20W/30W/50W
Laser wavelength 1060nm
Beam quality m²<1.5
Application metal and partial nonmetal
Marking Depth ≤1.2mm
Marking Speed 7000mm/ standard
Repeated Precision ±0.003mm
Working voltage 220V or 110V /(+-10%)
Cooling Mode Air Cooling
Supported graphic formats AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Controlling software EZCAD
Working temperature 15°C-45°C
Optional parts Rotary Device, Lift platform, other customized Automation
Warranty  2 year
Package  Plywood
