High cost performance 12020 Large Format Fiber Laser Cutting Machine Large Format Powerful Thick Cutting

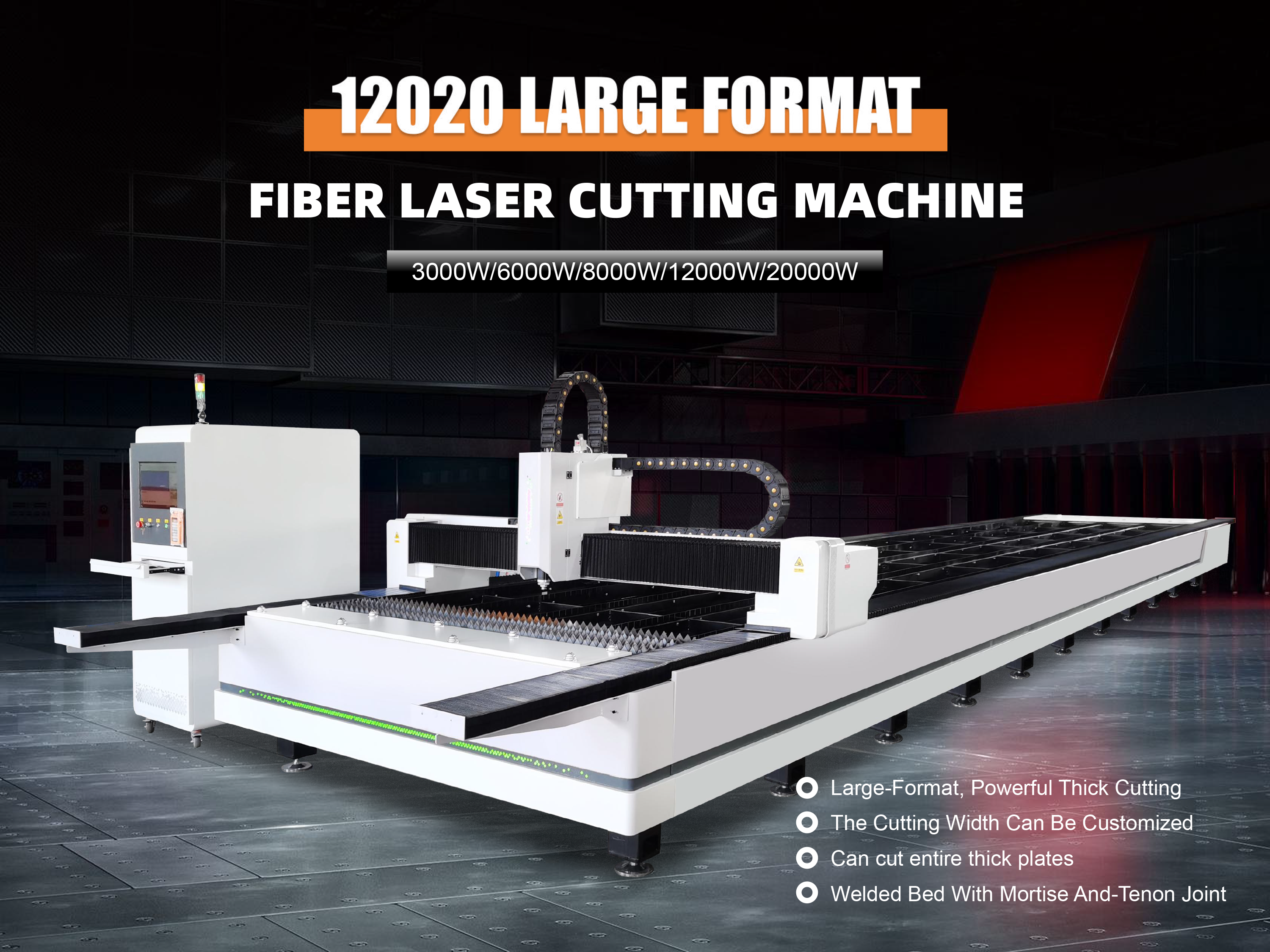

12020 LARGE FORMAT FIBER LASER CUTTING MACHINE
The 12020 large-area fiber laser cutting machine has a customizable bed size and processing length according to customer requirements. It can process a wide range of materials. The large cross-section rectangular tubes have undergone annealing,
welding and precision processing to ensure stability and reliability. It is particularly suitable for high-precision and high-efficiency cutting and processing of large-area metal plates.
SELLING POINT

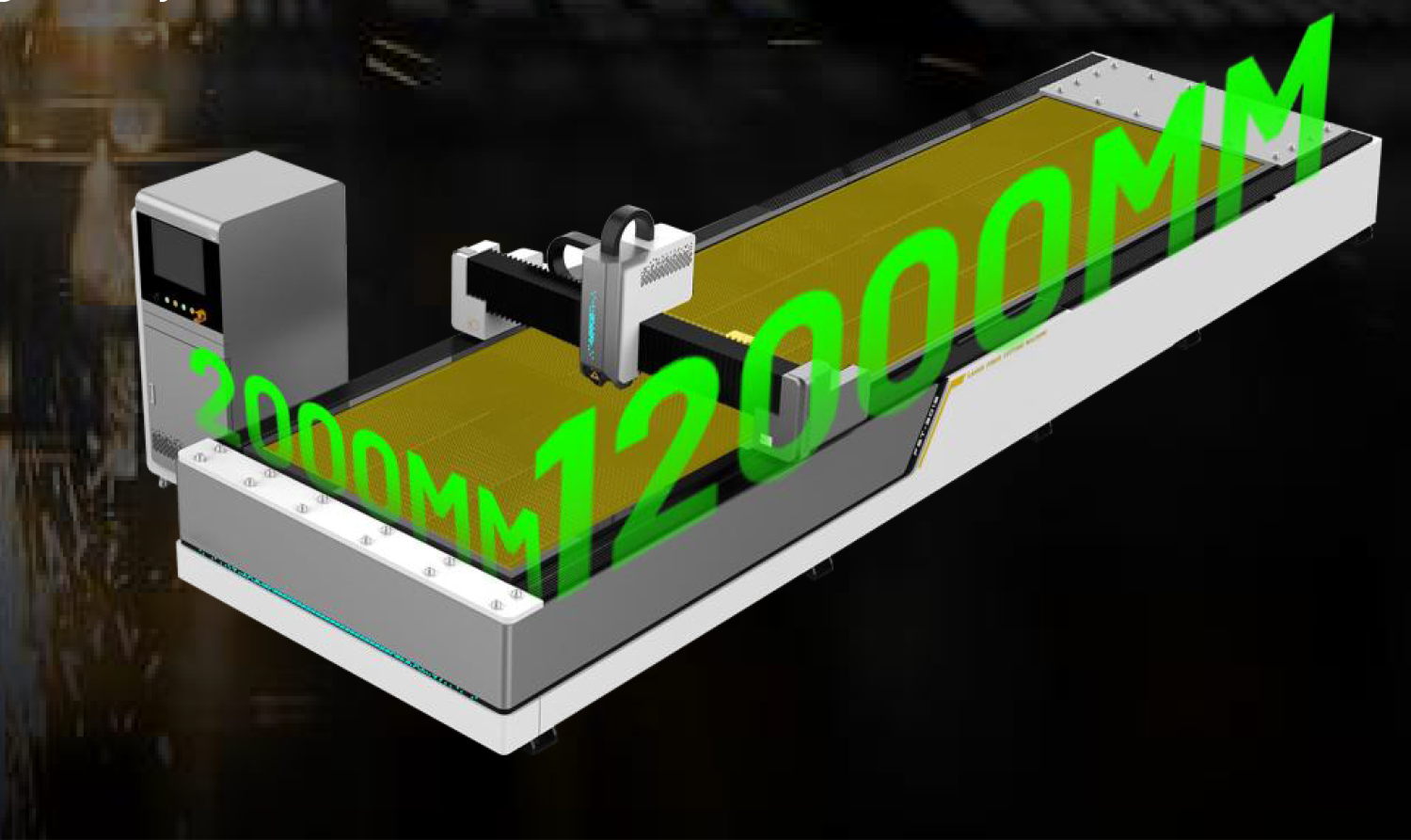

01.Extra-Large Format, Thick Sheet Processing
The maximum processing size is 2000mm * 12000mm. It can easily handle extremely large-sized and thick metal plates. There is almost no leftover material, and no additional cutting paths or micro connections will be generated. This significantly
speeds up the processing of large components and supports efficient and large-scale production.

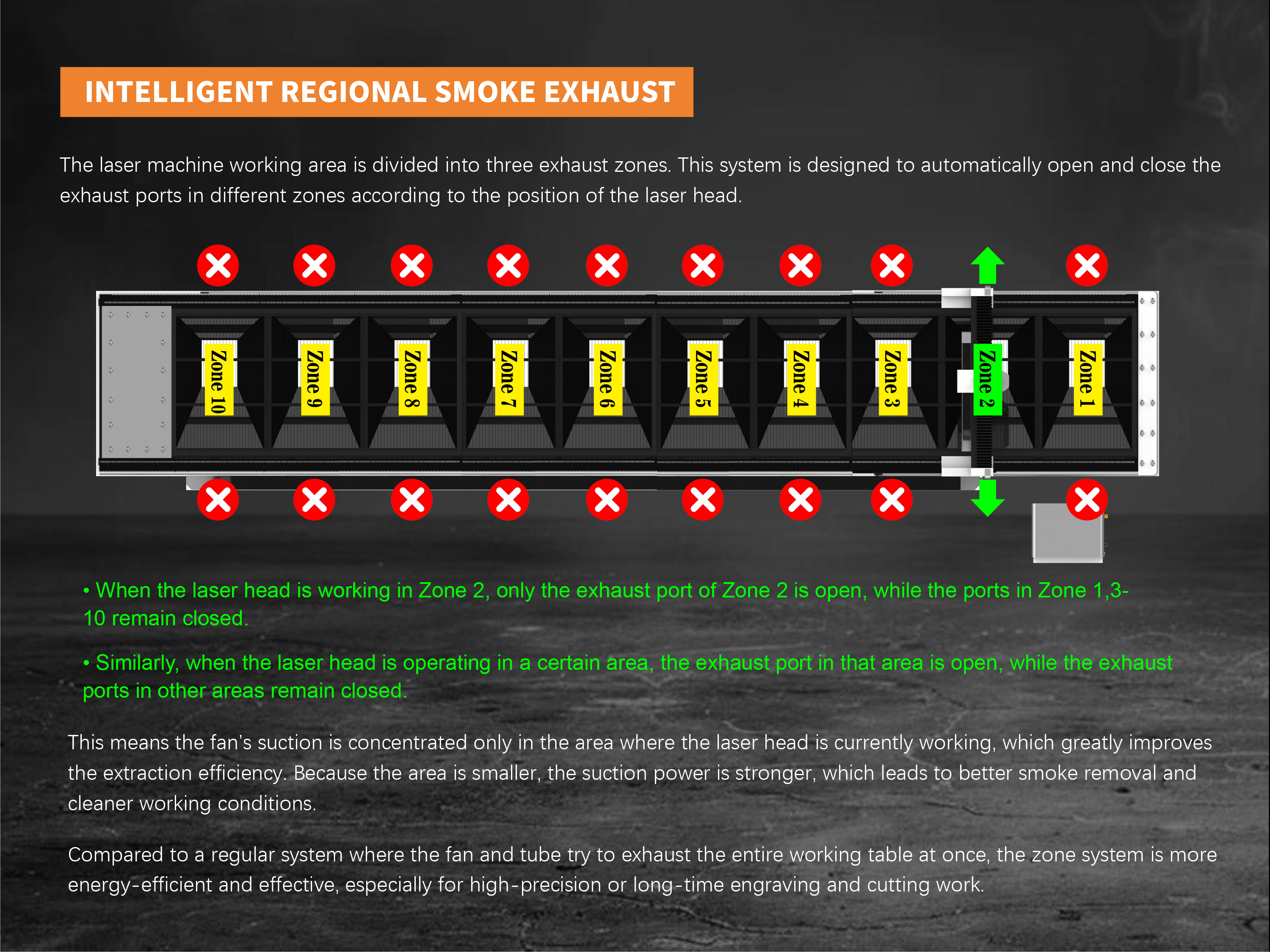

02.Subdivided Fluid Domain Dusting
The smoke exhaust device automatically senses the laser cutting position to open precise smoke exhaust, closes the non-cutting area for smoke exhaust, fully enclosed smoke control, increases suction, and removes smoke to the greatest extent.
03.Higher material utilization rate
More flexible layout, software has more space for optimal layout, and can easily handle parts with long or irregular combinations.
04.Replaceable Independent burn-proof sheet metal
Reduce the erosion of slag injection on the bed and improve the life of the bed.
05.Energy conservation and environmental protection
Because of the high energy conversion efficiency and low energy consumption, it can not only reduce processing costs, but also achieve environmental protection and energy saving.
| Model | 12020/12015/14020 |
| Working Area | 12000*2000mm/12000*1500mm/14000*2000mm |
| Fiber Source | Raycus/Max/Reci/BWT |
| Control system | BOCHU/Raytools |
| Laser Wavelength | 1080nm |
| Maximum acceleration | 1G |
| Laser power | 3000W/6000W/8000W/12000W/20000W |
| Compatible software | AutoCAD,CorelDraw, etc. |
| Graphic Format | DXF/PLT/AI/LXD/GBX/GBX/NC code |
| Power supply Voltage | 380V 3Ph, 50/60Hz |
| Cooling Mode | Water Cooling |
| Working Life of Fiber source | More than 10,0000 hours |
| Weight | 6T |

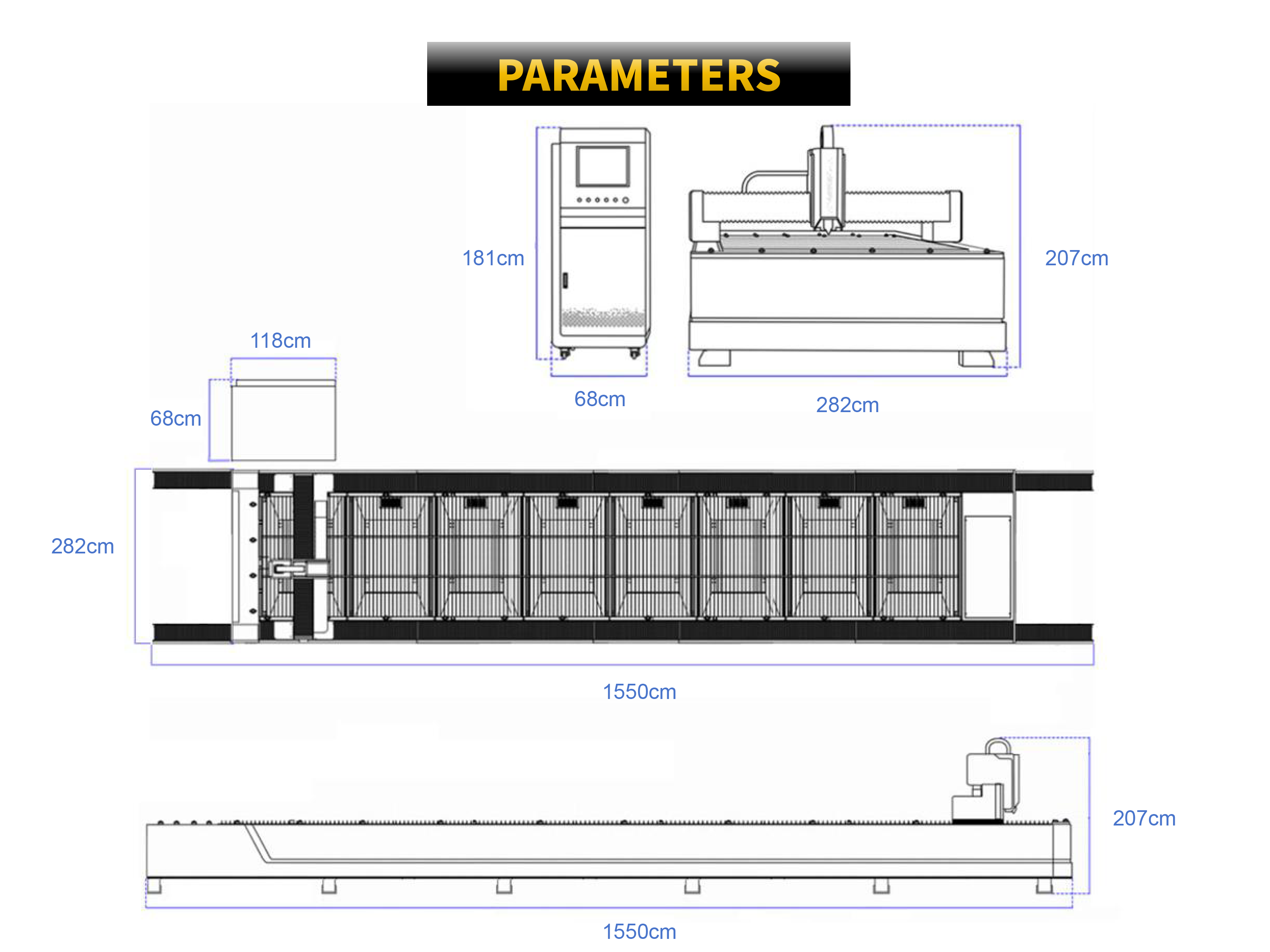

| Size | 15500*2820*2070mm |
When should I choose 12020?
*Mainly processing 12-meter boards: If your business uses a large amount of 2000x12000mm boards, choosing 12020 is undoubtedly beneficial as it can directly bring dual benefits of materials and efficiency.
*There is a demand for large-sized finished products: Your product itself is in the form of a long strip, such as elevator car wall panels, production line frames, and long ventilation ducts. 12020 can eliminate the welding and splicing process, ensuring overall quality and aesthetics.
*Pursuing scale production: Your order volume is large and stable, and you need to maximize the production capacity of a single equipment. The high efficiency of 12020 can significantly shorten the delivery cycle
*Diverse material types: You often need to handle boards of different sizes, and the large format of 12020 provides unparalleled layout flexibility, making it easy to handle scattered orders of various sizes.
Working area can be customized to any size
Multiple formats and sizes are available for your choice. Find the perfect product that suits you best!

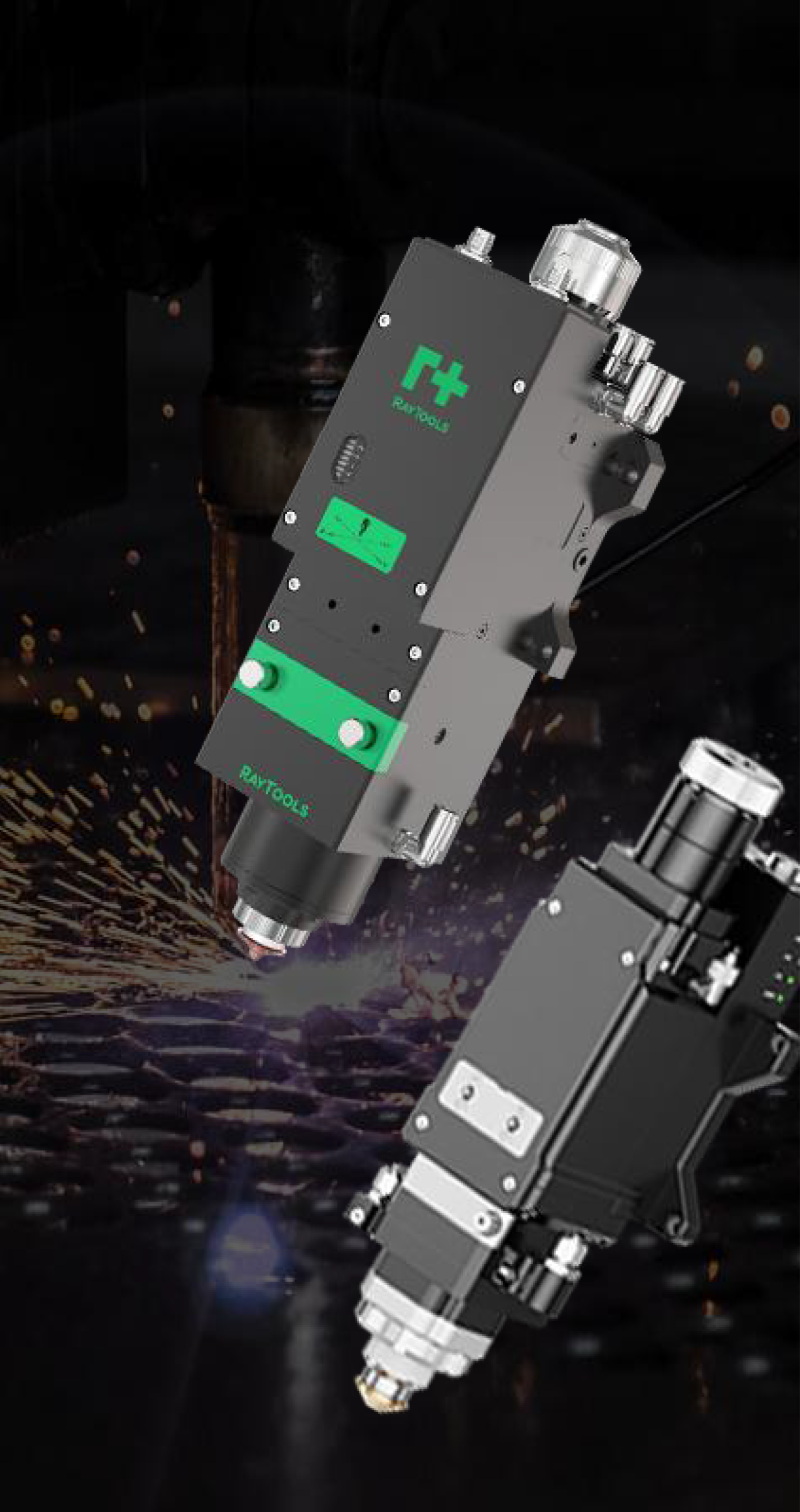

Laser Cutting Head
Multiple Protection
3 protective lenses , highly effective collimating focus lens protection.2-way optical water cooling extends the continuous working time effectively.
High-precision
To successfully avoid step loss,a closed-loop stepping motor is used.The repetition accuracy is 1M and the focusing speed is 100mm/s. Dust-proof to IP65,with a patent-protected mirror cover plate and no dead angle.
Various Brands Of Laser Head Are Available
We can provide all high quality laser heads . It has been tested by us for a long time.

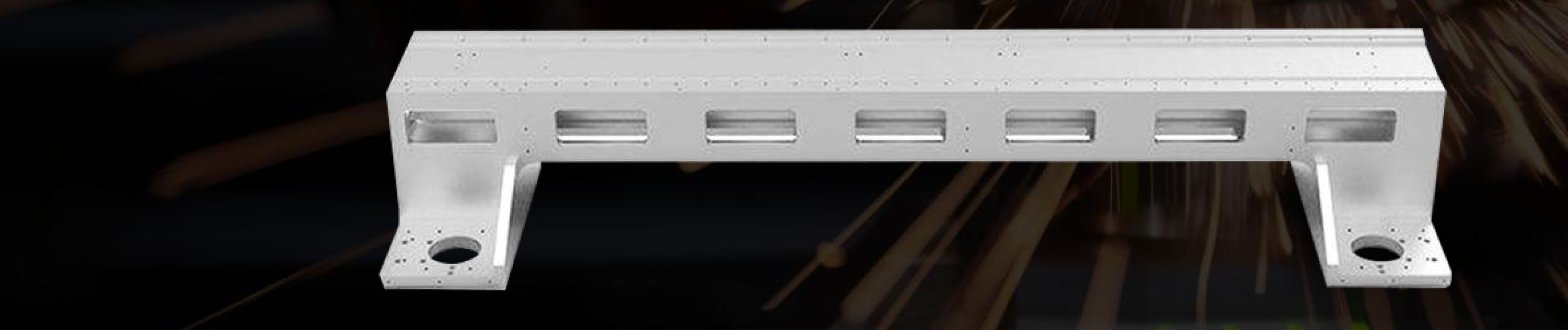

CAST ALUMINUM BEAM
Monolithic cast aluminum beam
No deformation,light weight,high strength Light cross beams allow equipment to operate at a faster rate boosting processing efficiency and quality.
High Speed
The light crossbeam allows the machine to move at a faster rate and enhance cutting eficiency.
More Efficient
The aerospace industry's aluminum profile beam ensures that the equipment has efficient dynamic performance , considerably increasing processing efficiency while maintaining processing quality.

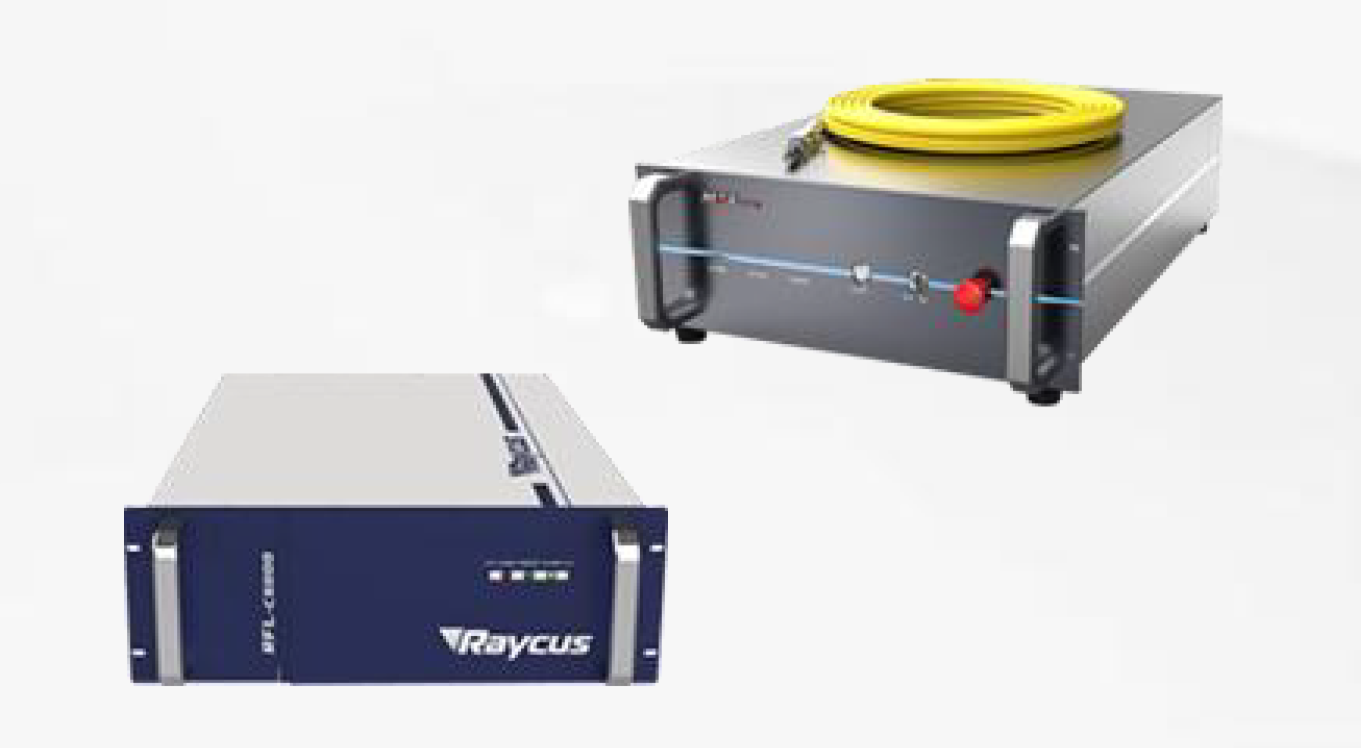

LASER SOURCE
Professional cutting laser source. With high- quality beam quality, high light conversion efficiency, the light emitting mode is more conducive to achieving a good and stable cutting effect with high quality.
SERVO DRIVER AND SERVO MOTOR
Professional cutting laser source. With high- quality beam quality, high light conversion efficiency, the light emitting mode is more conducive to achieving a good and stable cutting effect with high quality.
VOLTAGE STABILIZE
Stable voltage to ensure smooth operation of equipment.(Optional)
AIR COMPRESSOR
It is a essential tool for cutting stainless steel and thin carbon steel materials. More cost saving.(Optional)

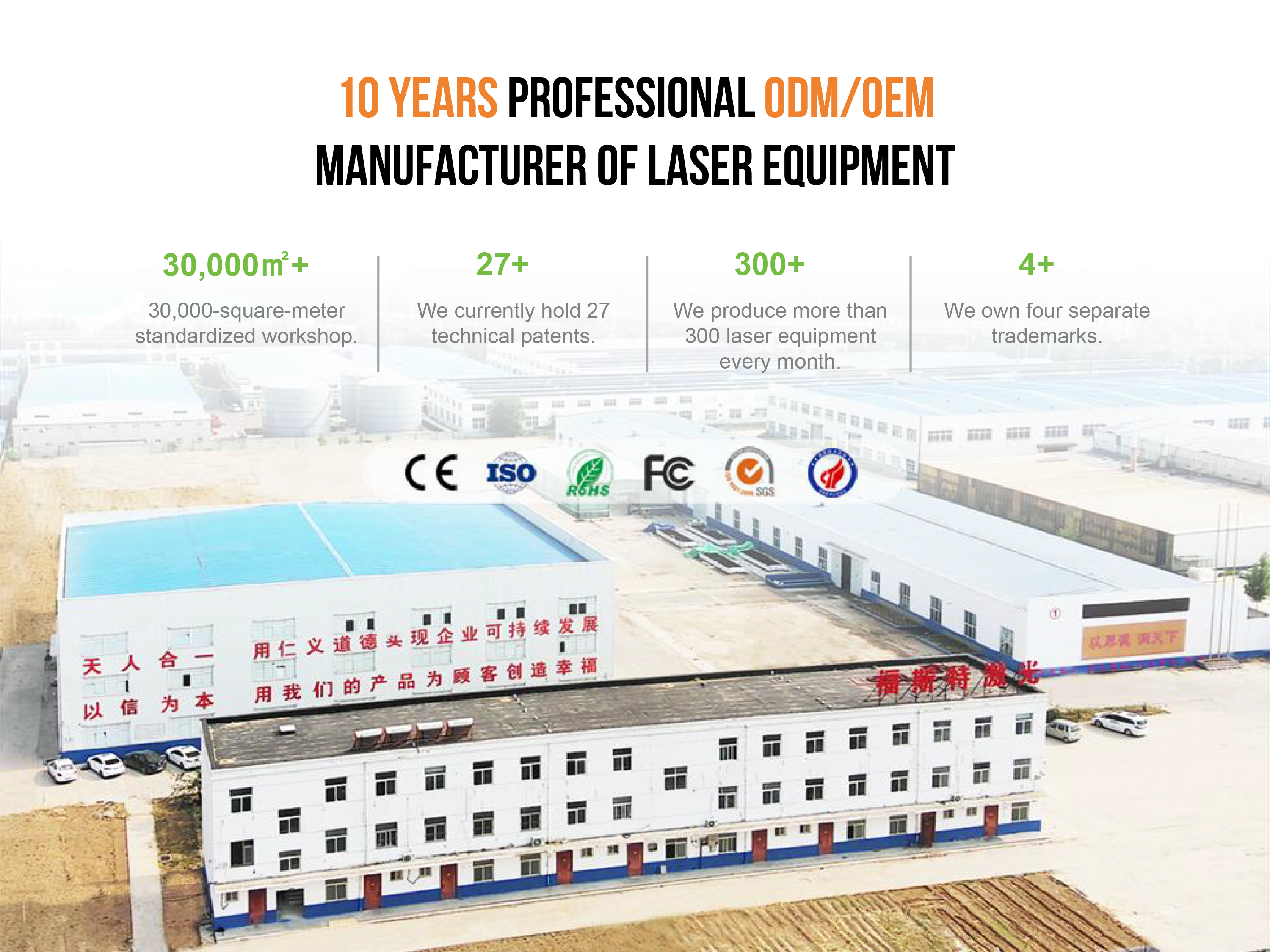

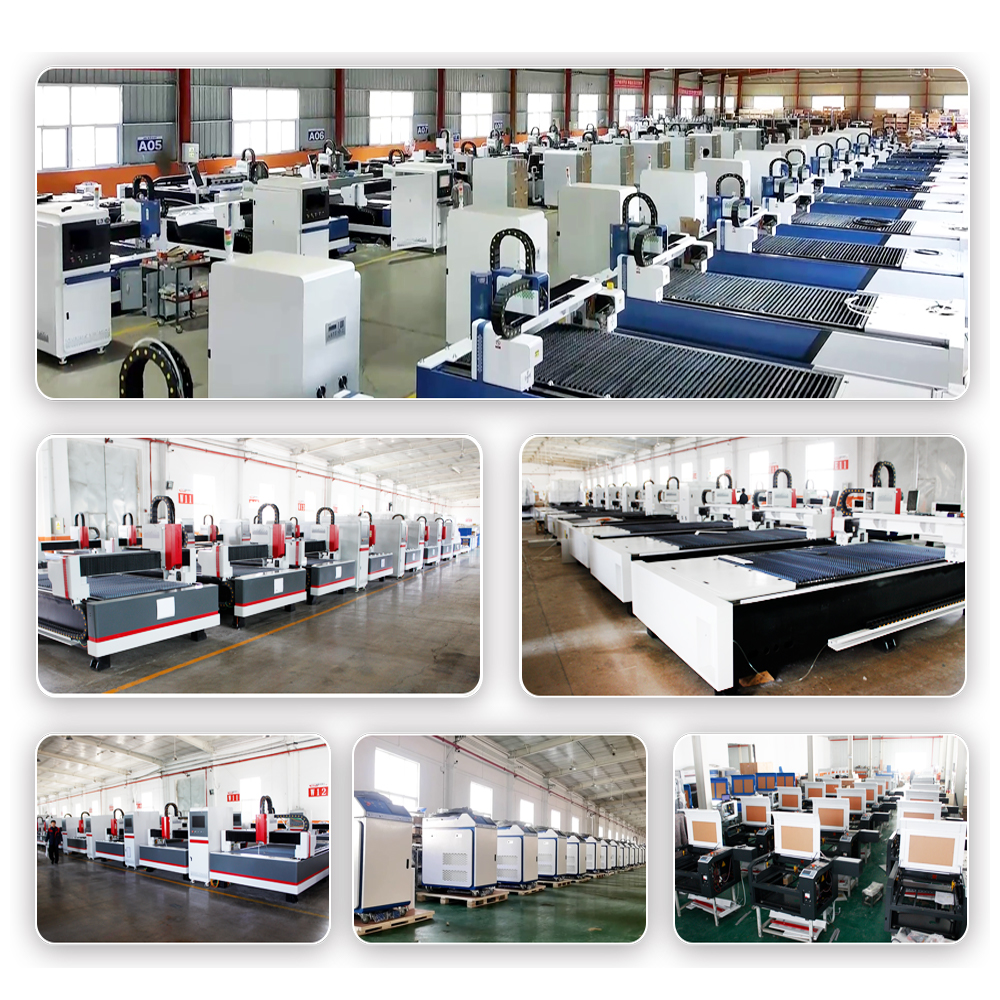

Liaocheng Foster Laser Science & Technology Co., Ltd.
Liaocheng Foster Laser Science & Technology Co., Ltd. A professional manufacturer dedicated to the research and production of laser equipment, covers an area of over 10000 square meters. We mainly produce laser engraving machines, laser marking machines, laser cutting machines. laser welding machines, laser cleaning machines.
Since its establishment in 2004, Foster Laser has always adhered to the Customer centric . By 2023, Foster laser equipment has been exported to more than 100 countries and regions, including the United States, Brazil, Mexico, Australia, Turkey, and South Korea, winning the trust and support of customers. The company's products have CE, ROHS and other test certificates, a number of application technology patents, and provides OEM services for many manufacturers.
Foster Laser is equipped with a professional R&D team, sales team, and after-sales team, which can provide you with a perfect purchasing and usage experience. The company can customize products, logos, exterior colors, etc. according to demand. Meet your customization needs.
Foster Laser, looking forward to your visit.
FAQ
Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following details: 1.What is your material? 2.The size of material? 3.The thickness of material?
Q:When I got this machine,but I don’t know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q:If some problems happen to this machine, what should I do?
A:We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.
Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
