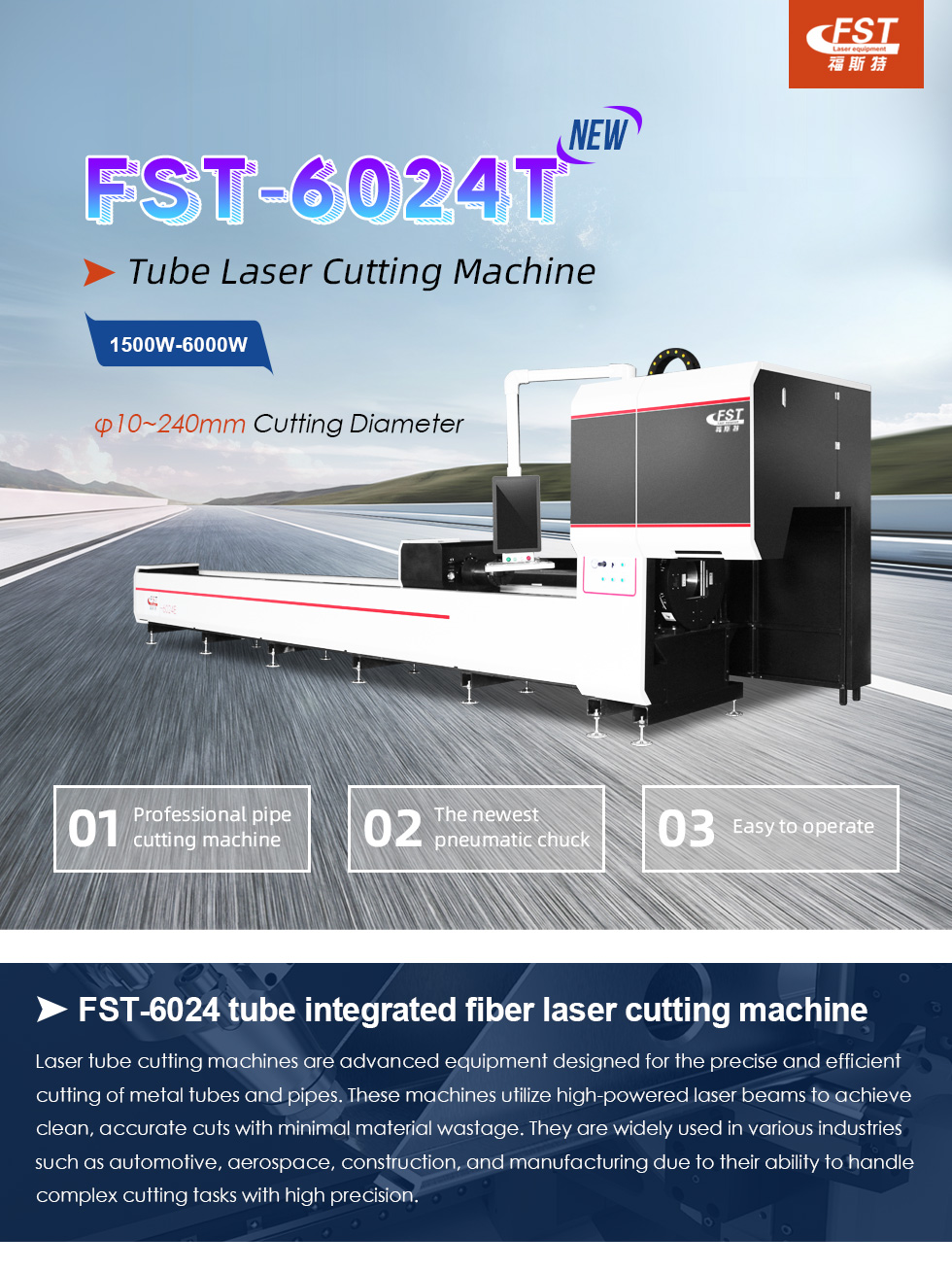

FST-6024 Fully Automatic Laser Tube Cutting Machine for Metal Pipes – High Efficiency CNC Pipe Cutter with Auto Loading

Short Description:

The FST-6024 Automatic Laser Tube Cutting Machine is advanced equipment designed for precise and efficient cutting of metal tubes and pipes. It supports a wide range of tube types for loading — simply place multiple tubes on the conveyor belt to achieve automatic loading. Built for heavy pipes, it delivers stable and efficient performance. The machine utilizes high-powered laser beams to achieve clean, accurate cuts with minimal material wastage.

Key Features & Advantages:

1. High Precision Cutting
Equipped with advanced auto-focusing laser heads and closed-loop stepping motors, the FST-6024 ensures high accuracy. The intelligent contour recognition system automatically identifies tube shapes and maintains cutting accuracy within 0.15mm.

2. High Efficiency
The coordinated three-chuck design and automatic loading/unloading system significantly reduce cycle times. It supports fast cutting speeds and continuous operation, meeting the demands of high-volume production.

3. Multifunctionality
Beyond standard cutting, this machine supports ±45° full-angle bevel cutting (V/Y/X/K bevels) for all types of tubes. It handles round, square, rectangular, oval, and special-shaped tubes, as well as H-beam, channel steel, and angle steel.

4. Automated Operation
Featuring a modular automatic loading rack and intelligent sorting, it eliminates manual handling. The TubePro software enables intelligent nesting, auto-optimization, and easy import of IGS files for seamless workflows.

5. High Stability and Durability
Constructed with a heavy-duty lathed bed that undergoes 1600°C heat treatment and 24-hour furnace cooling, it ensures long-term stability with no deformation. Imported Yaskawa servo motors and drivers provide powerful, precise motion control.

6. Cost Savings
The zero tailing cutting technology drastically reduces material waste. The fully automatic loading and unloading reduce manpower requirements by up to 2-3 workers per shift, significantly lowering overall operating costs.

7. Flexibility and Customization Capability
Available in a wide power range (1000W to 6000W+). The cutting width and bed length can be customized based on your specific production requirements. It also supports optional upgrades for bevel cutting and material handling.

8. Environmental Friendliness
The optimized structural design includes an intelligent regional exhaust and dust removal system, reducing energy consumption and ensuring a cleaner, greener workshop environment.

Send email to us Download as PDF

Product Detail

Product Tags

FST-6024T Fiber Laser Tube Cutting Machine

Laser tube cutting machines are advanced equipment designed for the precise and efficientcutting of metal tubes and pipes. These machines utilize high-powered laser beams to achieveclean, accurate cuts with minimal material wastage. They are widely used in various industriessuch as automotive, aerospace, construction, and manufacturing due to their ability to handlecomplex cutting fasks with high precision.

Key selling points of FST-6024T: high precision cutting, high efficiency, multifunctionality, environmental friendliness, and high stability.

HIGH PRECISION CUTTING:
The laser tube cutting machine ensures precise and clean cuts, reducing the need for
post-processing.
It can handle intricate designs and complex geometries with ease.
EFFICIENCY:
Equipped with advanced automation features, it significantly reduces production time
and labor costs.
The machine can cut tubes and pipes at high speeds without compromising on quality.

MULTIFUNCTIONALITY:
Capable of cutting a wide range of materials, including stainless steel, carbon steel,
aluminum, brass, and copper.
Suitable for cutting various shapes such as round, square, rectangular, and oval tubes.

ENVIRONMENTAL FRIENDLINESS:
Produces less noise and emissions compared to traditional cutting methods, making it anenvironmentally friendly option.

HIGH STABILITY AND DURABILITY:
Constructed with robust materials and components, ensuring long-term durability and
minimal maintenance.
The machine' s stability during operation ensures consistent cutting quality.

COST SAVINGS:
Reduces material wastage and energy consumption, leading to cost savings in the longrun.The multifunctional capability of cutting different types and shapes of tubes andpipes eliminates the need for multiple machines.
FLEXIBILITY AND CUSTOMIZATION CAPABILITY:

Allows for easy adjustment and customization of cutting parameters to meet specific
project requirements.
Can be integrated with other manufacturing processes for streamlined production.

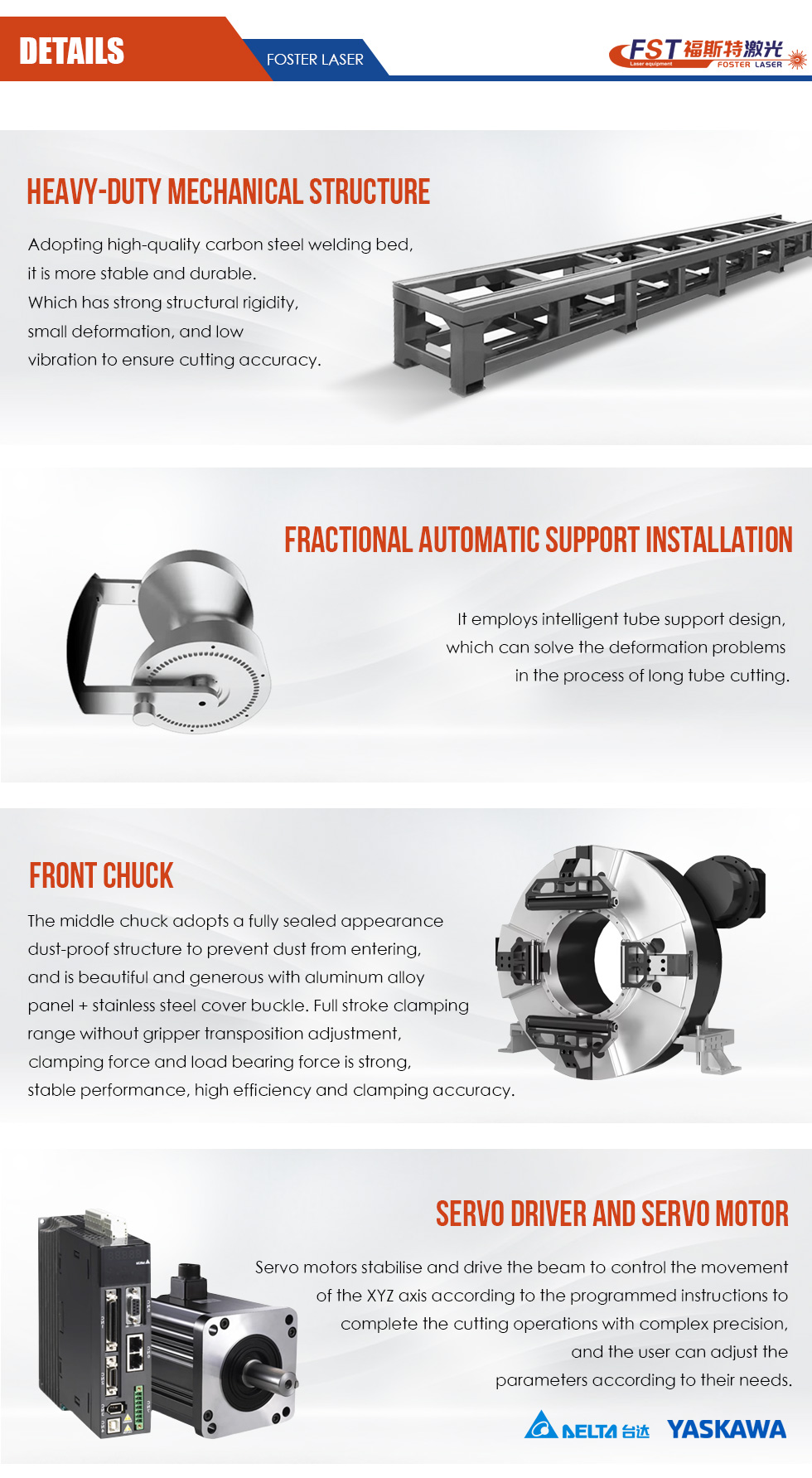

FST-6024T Fiber Laser Tube Cutting Machine Details

HEAVY-DUTY MECHANICAL STRUCTURE
Adopting high-quality carbon steel welding bed,
it is more stable and durable.
Which has strong structuralrigidity,
small deformation, and low
vibration to ensure cutting accuracy.
FRACTIONAL AUTOMATIC SUPPORT INSTALLATION
It employs intelligent tube support designwhich can solve the deformation problemsin the process of long fube cutting.
FRONTCHUCK
The middle chuck adopts a fully sealed appearancedust-proof structure to prevent dust from entering.and is beautiful and generous with aluminum alloypanel + stainless steel cover buckle. Full stroke clampingrange without gripper fransposition adjustment,
clamping force and load bearing force is strong,
stable performance, high efficiency and clamping accuracy.
SERVO DRIVER AND SERVO MOTOR
Servo motors stabilise and drive the beam to control the movementof the XYZ axis according to the programmed instructions tocomplete the cutting operations with complex precision,and the user can adjust the
parameters according to their needs

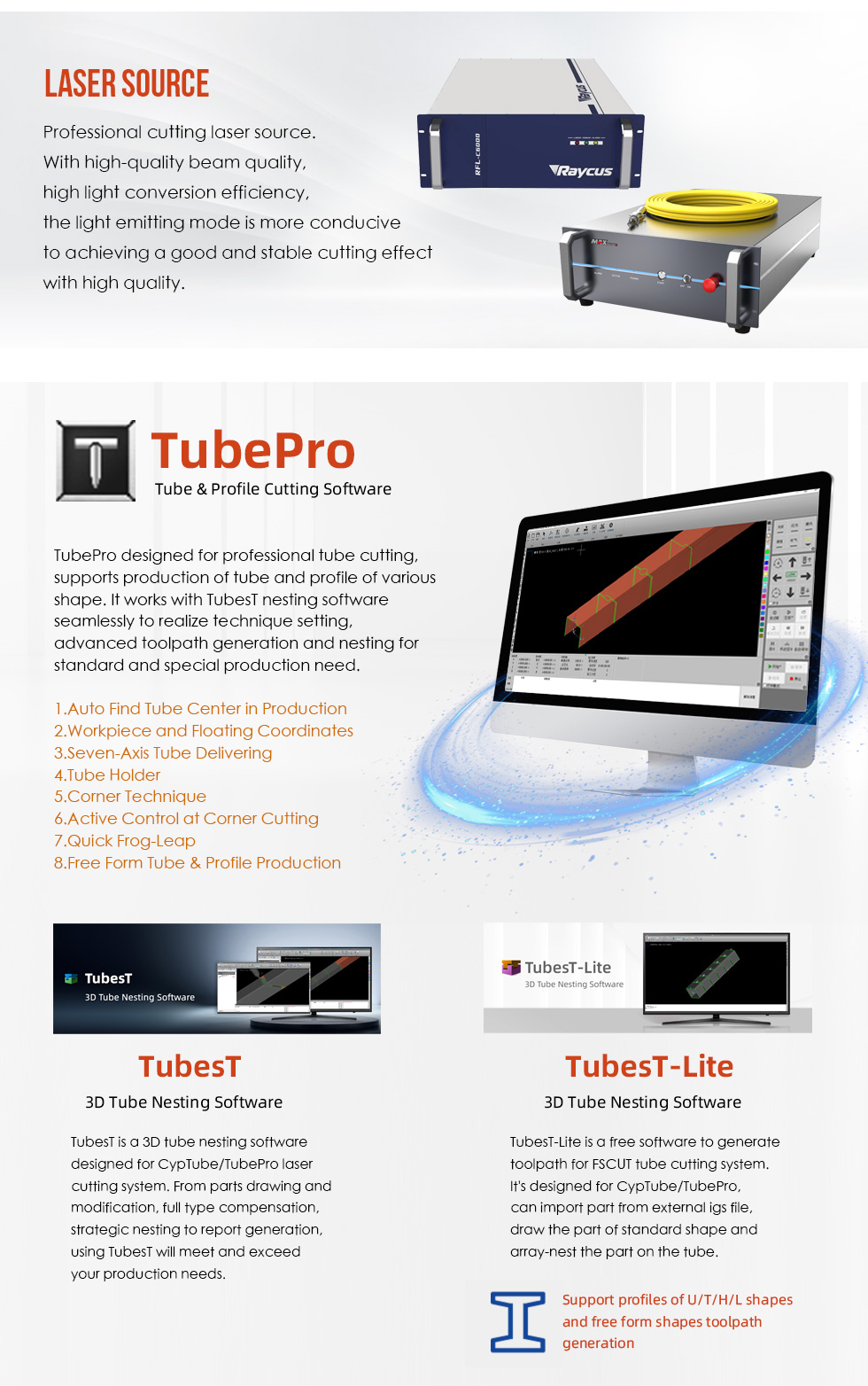

FST-6024T Fiber Laser Tube Cutting Machine Software

LASER SOURCE
Professional cutting laser source.With high-quality beam quality,high light conversion efficiency,the light emitting mode is more conduciveto achieving a good and stable cutting effectwith high quality.

TubeProTube & Profile Cutting Software
TubePro designed for professional tube cutting.supports production of tube and profile of variousshape. It works with TubesT nesting soltwareeamlessly to realize technique settingadvanced toolpath generation and nesting forstandard and special production need.
I.Auto Find Tube Center in Production2.Workpiece and Floating Coordinates3.Seven-Axis Tube Delivering4.Tube Holder5.Comer Technique6.Active Control at Comer Cutting7.Quick Frog-Leap8.Free Form Tube & Profile Production

TubesT
3D Tube Nesting Software
TubesT is a 3D tube nesting softwaredesigned for CypTube/TubePro lasercutting system, From parts drowing andmodification, full type compensation,strategic nesting to report generation,using TubesT will meet and exceedyour production needs

TubesT-Lite
3D Tube Nesting Software
TubesT-Lite is a free software to generateoolpath for FSCUT tube cuting system.t's designed for CypTube/TubePro,can import part from external igs file,draw the part of standard shape andarray-nest the part on the tube.
Support profiles of U/T/H/L shapesand free form shapes toolpathgeneration

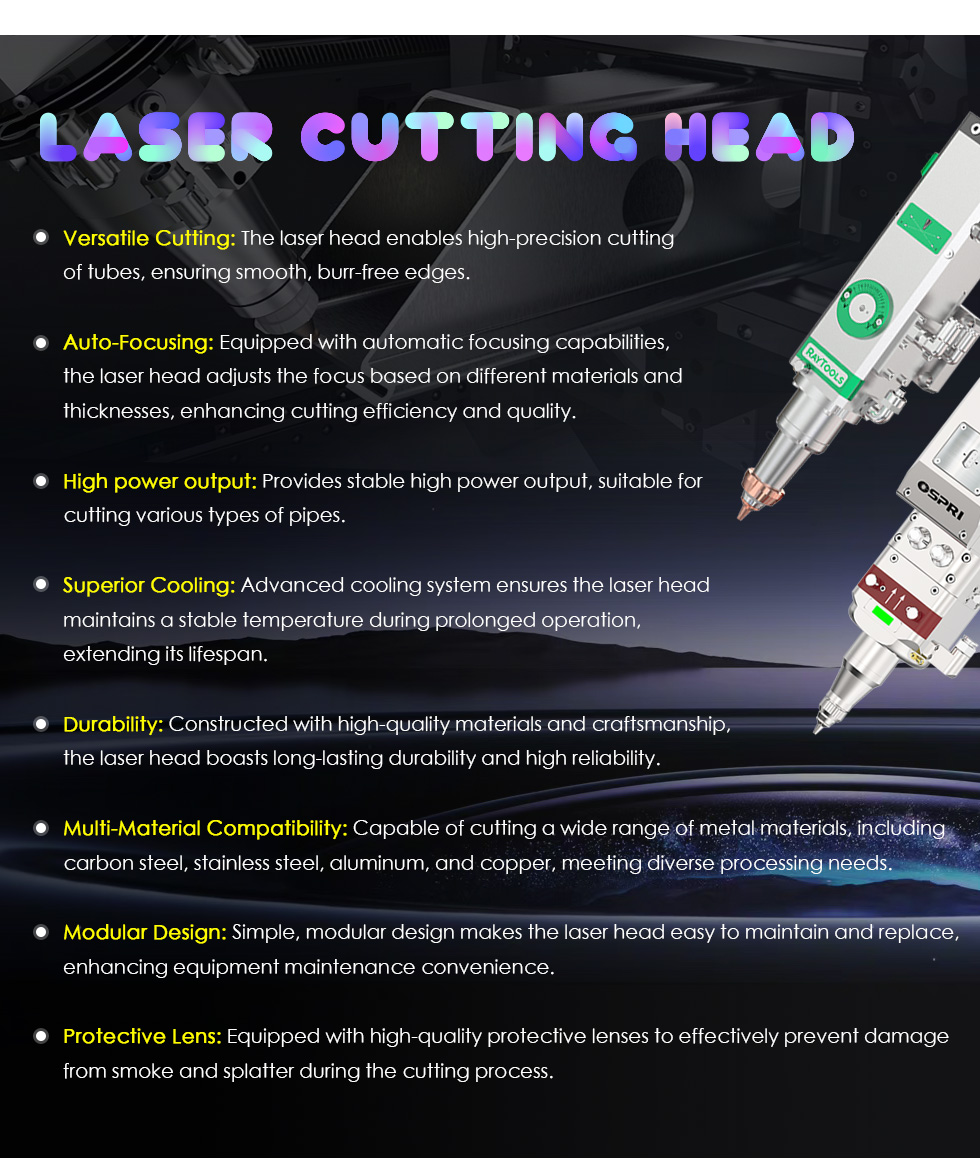

FST-6024T Fiber Laser Tube Cutting Machine Laser Head

LASER CUTTING HEAD
Versatile Cutting: The laser head enables high-precision cutting of tubes, ensuring smooth, burr-free edges.
Auto-Focusing: Equipped with gutomatic focusing capabilities,the laser head adjusts the focus based on different materials andthicknesses, enhancing cutting efficiency and quality.
High power output: Provides stable high power output, suitable for cutting various fypes of pipes.
Superior Cooling: Advanced cooling system ensures the laser headmaintains a stable temperature during prolonged operation,extending its lifespan.
Durability: Constructed with high-quality materials and craftsmanship,the laser head boasts long-lasting durabllity and high reliabillity.
Multi-Material Compatibility: Capable of cutting a wide range of metal materials, including carbon steel, stainless steel, aluminum. and copper, meeting diverse processing needs.
Modular Design: Simple, modular design makes the laser head easy to maintain and replace enhancing equipment maintenance convenience.
Protective Lens: Equipped with high-quality protective lenses to effectively prevent damage from smoke and splatter during the cutting process.

Machine Name	Pulsed laser cleaning machine
Laser Power	100W/200W/300W/500W
Laser Source	JPT
Laser Source Model	1000-50 Multimode
Laser Model	Flat Top Light
Fiber Beam Quality	<9㎡
Maximum Single Pulse Energy	50MJ
Cleaning efficiency (paint)	30m2/h
Cooling system	Air cooling
Laser Operation Mode	Pulsed
Maximum Output Power	500W
Power adjustment range (%)	0-100%
Fiber Cable Lenth	15m
Laser Pulse Frequency	20-1000KΗZ
Cleaning Model	8 Kinds
Working Temperature	5-35°℃
Cooling Water Temperature	28°C
Supply Current	>32A
Power Instabilit	Less than 5%
Operation Method	Handheld
Auxiliary Gas Description	Dry gas (oxygen/nitrogen)
Machine Size (LWH)	650330550 mm
Net Weight	70kg

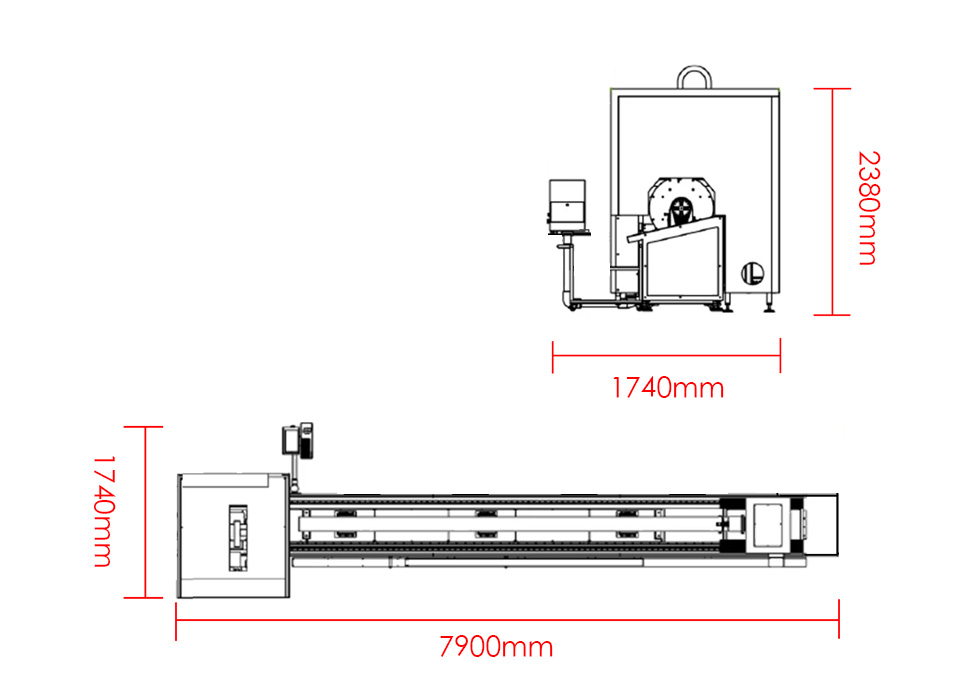

FST-6024T Fiber Laser Tube Cutting Machine Dimensions

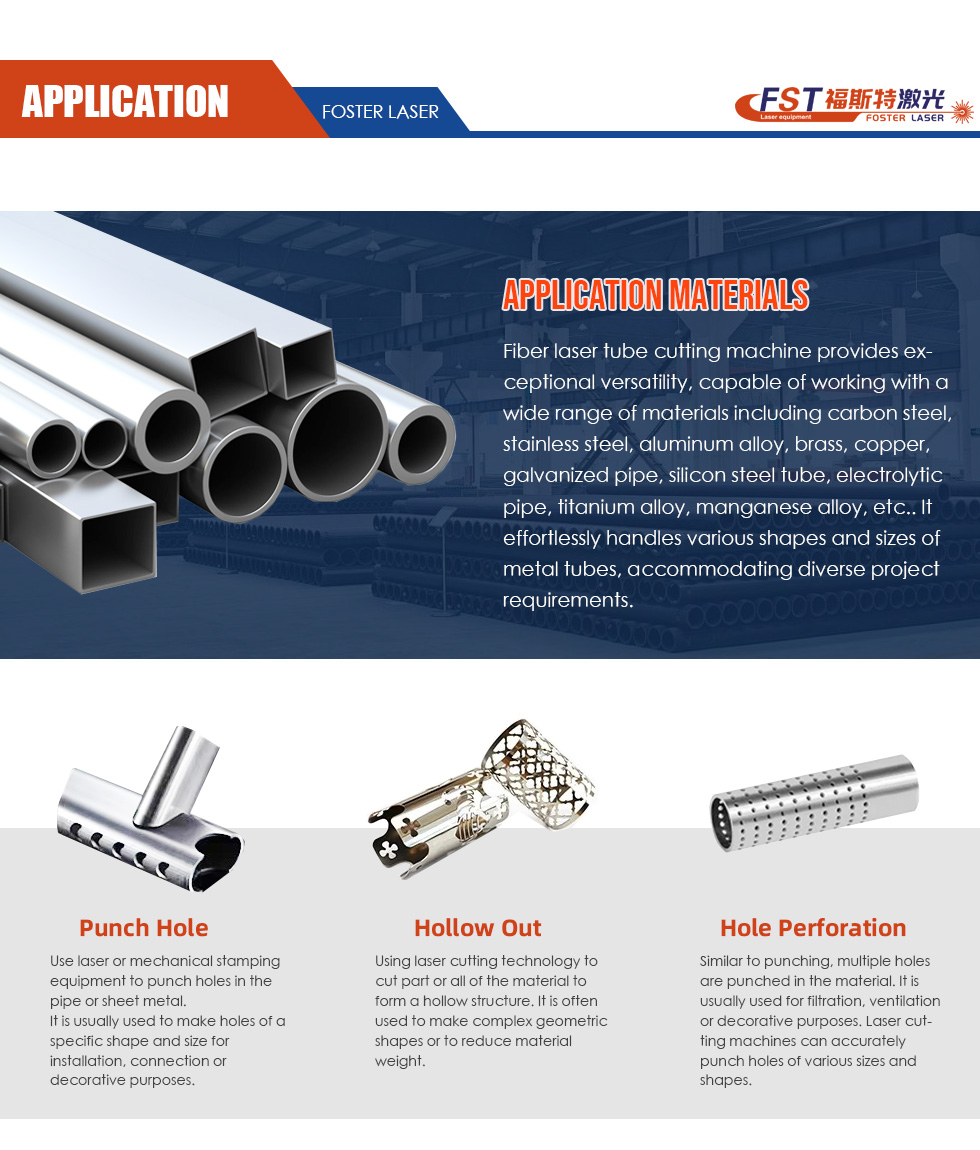

FST-6024T Fiber Laser Tube Cutting Machine Applications

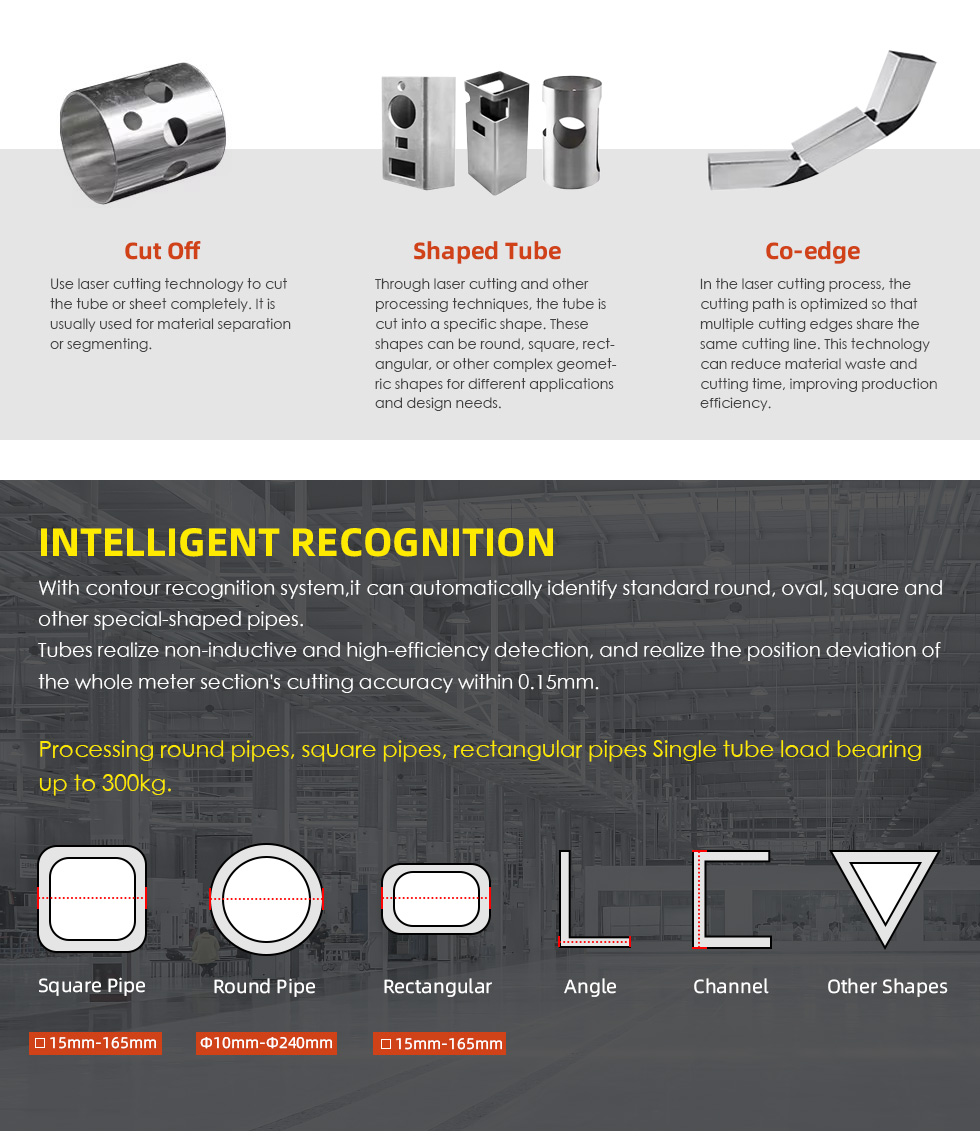

FST-6024T Fiber Laser Tube Cutting Machine Cutting Process

FST-6024T Fiber Laser Tube Cutting Machine Upgrade

APPLICATION MATERIALS

Fiber laser tube cutting machine provides ex-ceptional versatility, capable of working with awide range of materials including carbon steel,stainless steel,aluminumalloy,brass,copper,galvanized pipe, silicon steel tube, electrolytic pipe,fitanium alloy, manganese alloy, etc.. It effortlessly handles various shapes and sizes ofmetal tubes, accommodating diverse project requirements.

APPLICATION INDUSTRY

The sheet metal laser cutting machinehas extensive applications in decoration, infra-structure, construction, microelectronic, advertising, kitchen appliance, automobile andother equipment manufacturing, and other industries.

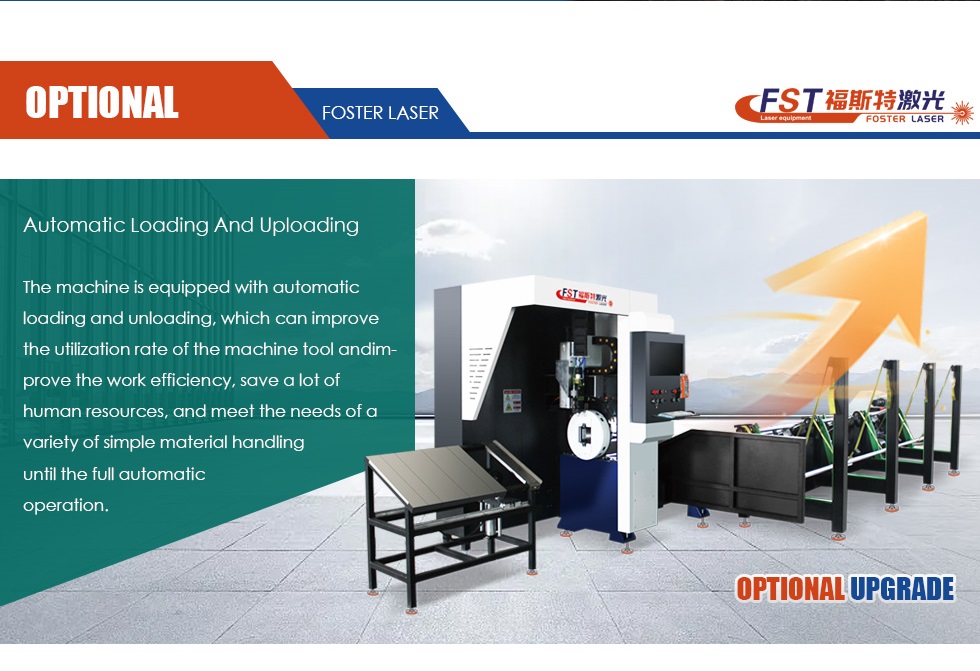

FST-6024T Fiber Laser Tube Cutting Machine Auto Loading

Automatic Loading And Uploading

The machine is equipped with automaticloading and unloading, which can improvethe utilization rate of the machine tool andimprove the work efficiency, save a lot ofhuman resources, and meet the needs of avariety of simple material handlinguntil the full automatic operation.

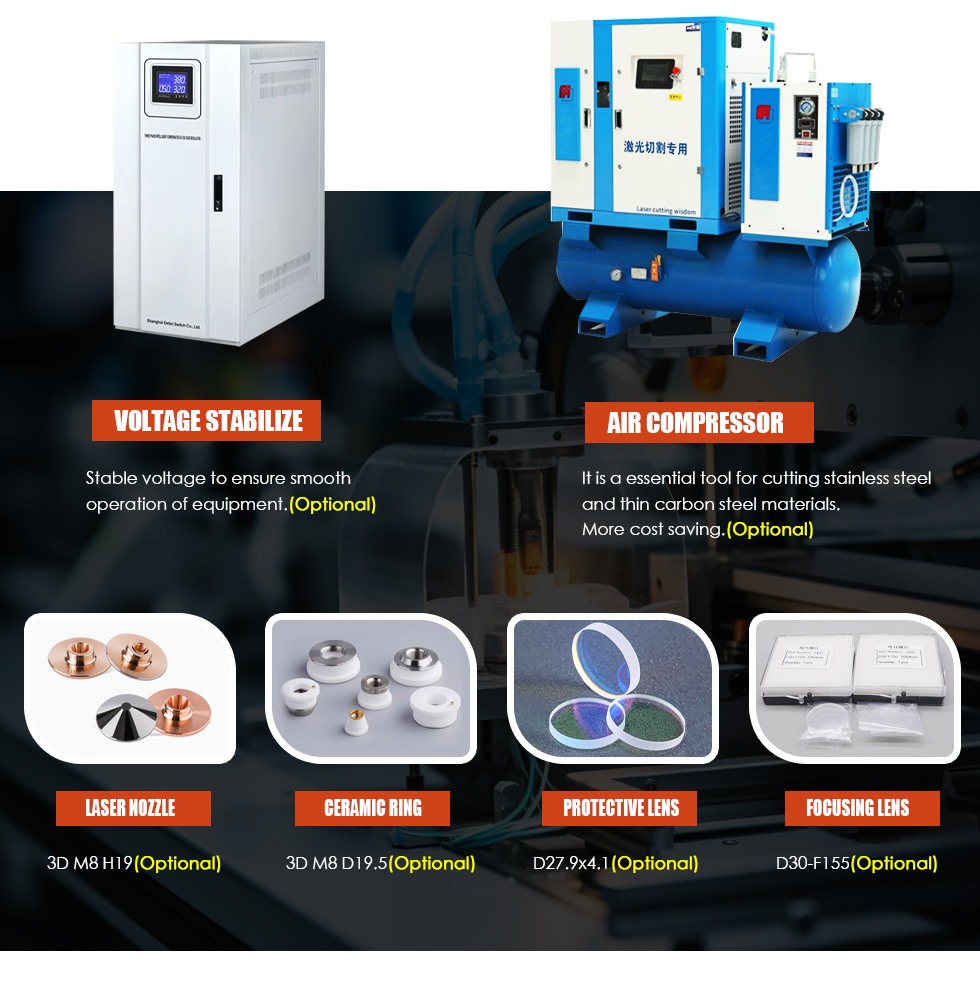

FST-6024T Fiber Laser Tube Cutting Machine Accessories

FST-6024T Fiber Laser Tube Cutting Machine Quality Control

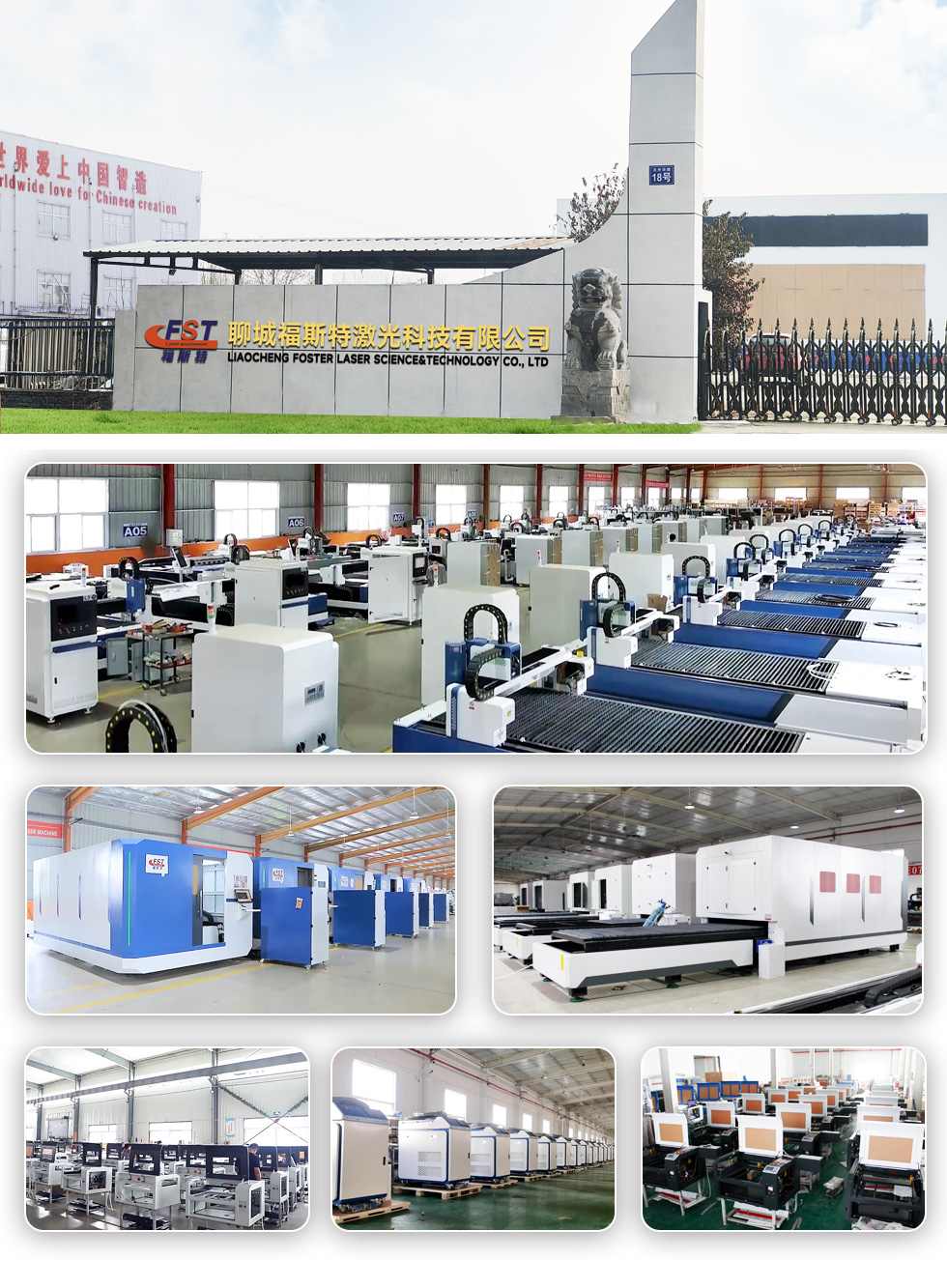

FST-6024T Fiber Laser Tube Cutting Machine Company

Liaocheng Foster Laser Science & Technoiogy Co., Ltd.

Liaocheng Foster Laser Science & Technology Co., Ltd. A professional manufacturer dedicated to the research and production of laser equipment, covers an area of over 10000 square meters. We mainly produce laser engraving machines, laser marking machines, laser cutting machines, laser welding machines, laser cleaning machines. Since its establishment in 2004, Foster Laser has always adhered to the Customer centric. By 2023. Foster laser equipment has been exported to more than 100 countries and regions, including the United States, Brazil, Mexico, Australia, Turkey, and South Korea, winning the trust and support of customers. The company's products have CE, ROHS and other test certificates, a number of application technology patents, and provides OEM services for many manufacturers. Foster Laser is equipped with a professional R&D team, sales team, and after-sales team, which can, provide you with a perfect purchasing and usage experience. The company can customize products, logos, exterior colors, etc. according to demand. Meet your customization needs. Foster Laser, looking forward to your visit.
